IP Bridge V3/V3+
JP1

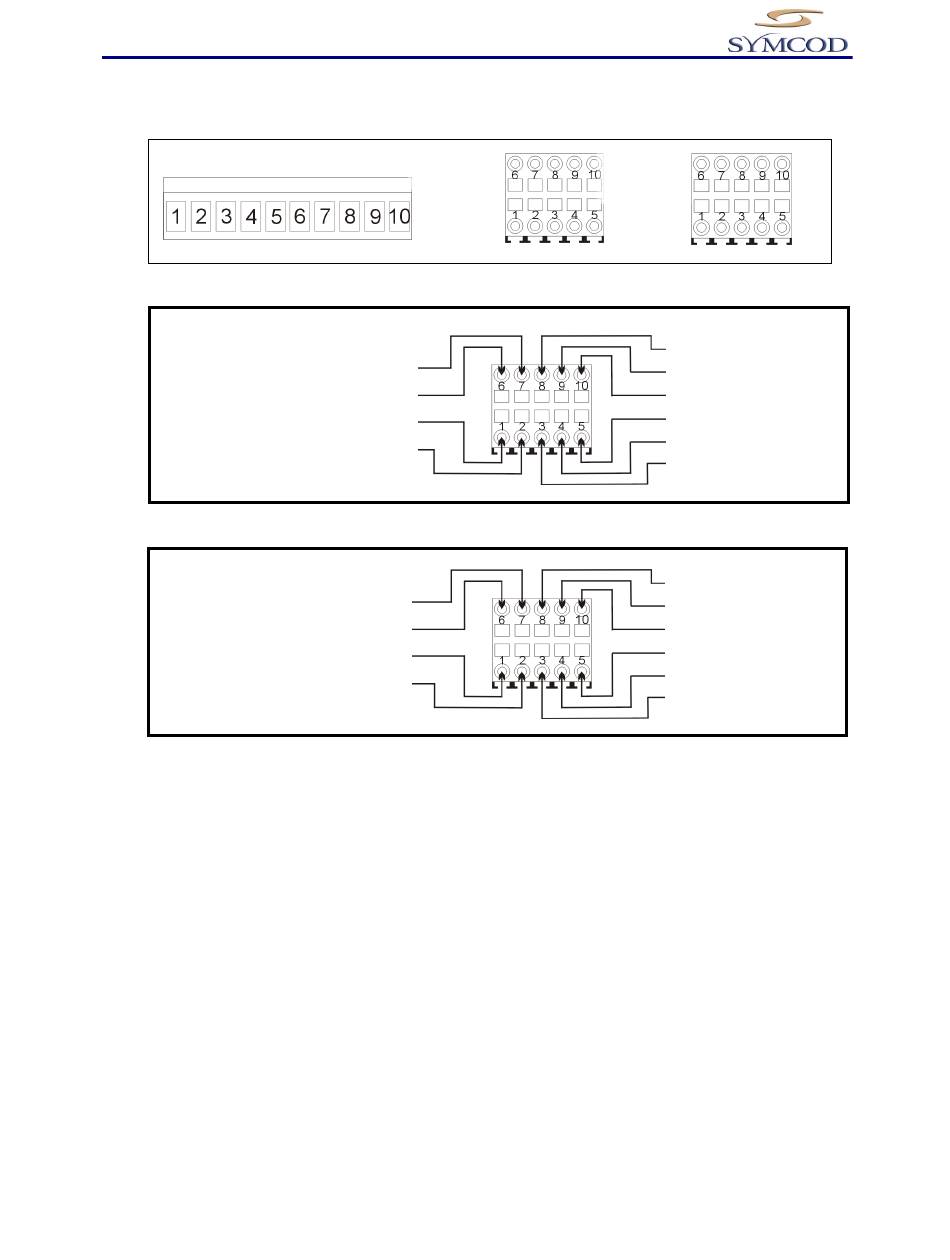

JS3 IN/OUT connector
Buzzer OUT (Open collector)
IN Wiegand #1 D1
IN Wiegand #1 D0
LED OUT (Open collector)
JS4 V3+ IN/OUT connector
Buzzer OUT (Open collector)
IN Wiegand #2 D1
IN Wiegand #2 D0
LED OUT (Open collector)
JS3 and JS4 Wiegand inputs
The Wiegand inputs (JS3 and JS4) are designed to accept proximity reader. The IP
Bridge uses an
identification
the reading.
Identifier: Input Wiegand 1 transmits the integral code.
Discriminator:
You must specified at the order if you need special encryption type (ex: 37 bits
Wiegand) otherwise you will get the unit in standard Wiegand 26 bits. The input will
provide a 12V tension on both JS3 and JS4 connectors, which is usually enough for any
Wiegand type devices. The 12 VDC output is not regulated, so the output tension is
equal to the one on the IP Bridge input power. Any device connected to the IP bridge
must be powered by the bridge.
WWW.SYMCOD.COM
JS3 and JS4 connectors
JS3
and
discrimination
Input Wiegand 2 add the $ sign before the code to identify the
origin.
If 2 cards are swipe simultaneously, the discriminator will only
consider the first card.
JS4
V3+
Gnd
Gnd
IN #1 Cathode
IN #1 Anode
5 Volts
12 Volts
Gnd
Gnd
IN #2 Cathode
IN #2 Anode
5 Volts
12 Volts
system that can determine the origin of
12
