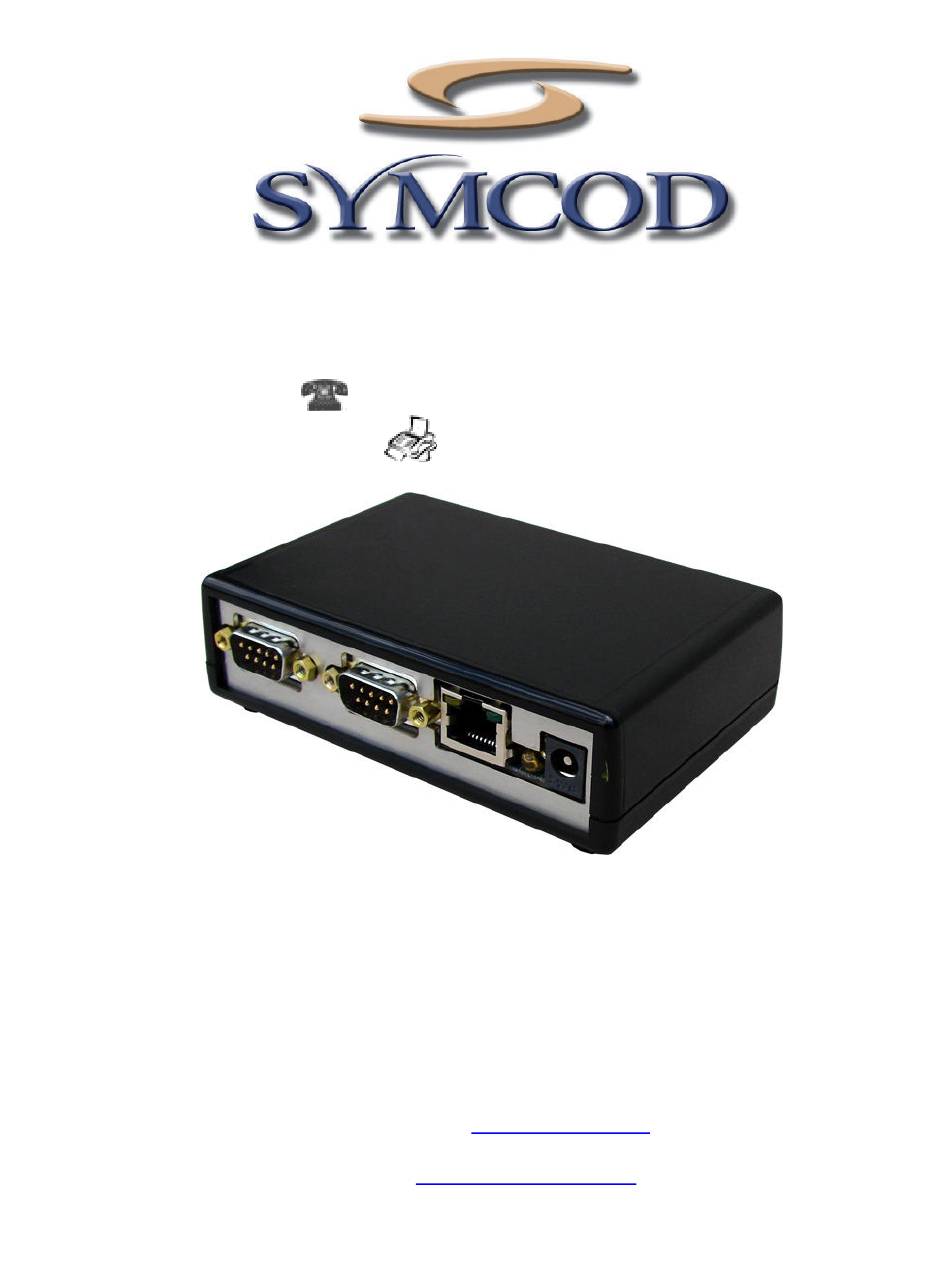

- Page 1 1171 Notre-Dame O. Victoriaville (Québec) G6P 7L1 Canada : (819) 751-0095 or 800-203-9421 : (819) 751-1292 V3+ version front view IP BRIDGE MANUAL Documentation Version (09/08/2014) Use this information for IP BRIDGE V3 and V3+ Our web site: www.symcod.com Email: support@symcod.com...
-
Page 2: Read Me First
( ). WARNING: Safety and reliability SYMCOD Inc will not be responsible for the use of this equipment for other purpose then data collection. Symcod does not recommend the use of IP Bridge V3 / V3+ or any other equipment relating to access control as safety equipment. - Page 3 IP Bridge V3/V3+ WWW.SYMCOD.COM IP Bridge V3/V3+ The IP Bridge is an RS-232 to TCP/IP programmable converter which allows multiple configurations. The IP Bridge is mostly used to control via devices such as: slots readers (bar code and magnetic), proximity readers, bells, etc. It allows the connection of 1 or 2 Bar Code (Wiegand) readers and the connection of one biometric reader.
-
Page 4: Main Characteristics
0 to 255 a card identifier 0 to 65535. Symcod can program the Wiegand decoder of the Bridge so only the card identifier will be transmitted (order product # 020-01348). It is also possible to program the decoder according to your specifications if you use another type of Wiegand format (ex: 37 Wiegand bits). - Page 5 There are three ways to supply the IP Bridge: Via an external power supply • Via a simple POE (injects power through the Ethernet cable) • Via Symcod’s 16 ports DC-Injector (injects power through the Ethernet cable) • Maximum Product Description...
-
Page 6: Wiegand Mode
There are three interfacing modes for the connection of an external reader: RS-232, biometric and Wiegand. Here is an example for each type. RS-232 mode IP Bridge Bar code reading Symcod’s slot reader V3/V3+ SYM804 CB-RS232 Biometric mode IP Bridge... - Page 7 IP Bridge V3/V3+ WWW.SYMCOD.COM Software command description The commands can be sent via three possible links (TCP, UDP, RS-232). If you are using TCP and/or UDP link, you have to connect via the port 1024 to communicate with the serial port #1 and 1025 for the serial port #2.
- Page 8 IP Bridge V3/V3+ WWW.SYMCOD.COM Output 1 (Relay 1) ON XX second(s) (220): Puts the relay number 1 in open mode for xx seconds Example for 2 seconds: Chr(254) + Chr(248) + Chr(8) + Chr(2) + Chr(220) + "02" + Chr(3) + Chr(3)
- Page 9 IP Bridge V3/V3+ WWW.SYMCOD.COM Command listing for Bridge 400 mode With BoardConfig software you can activate Bridge 400 option and use these commands: Output number Description Relay 1 Relay 2 Buzzer 1 Buzzer 2 Output x ON/OFF ><Txy = Output number 1 to 4...
- Page 10 IP Bridge V3/V3+ WWW.SYMCOD.COM Logic input # 1 description The logic input # 1 can send you back 2 possible states, ON or OFF. - If the input logic # 1 changes for ON position, the Bridge/IP will send the following...
-
Page 11: Detailed Specifications
RS-232 to the TCP link. Both serial ports have the same configuration (Bauds, Parity, Data Bits ) define with the BoardConfig software (provided free of charge by Symcod). Only data signal on pin 2 and 3 are managed, there is no hardware handshaking available. It is possible to power up an external device through pin 9 of the DB-9 (ex. - Page 12 IP Bridge V3/V3+ WWW.SYMCOD.COM JS3 and JS4 connectors JS3 IN/OUT connector Buzzer OUT (Open collector) IN Wiegand #1 D1 IN #1 Cathode IN #1 Anode IN Wiegand #1 D0 5 Volts LED OUT (Open collector) 12 Volts JS4 V3+ IN/OUT connector...
- Page 13 IP Bridge V3/V3+ WWW.SYMCOD.COM Internal circuit logical inputs The logical inputs 1 and 2 are designed to receive dry contact type or voltage type signal (5-16 VDC). For the voltage type, it is possible to have a 16 to 32 VDC input by...
- Page 14 IP Bridge V3/V3+ WWW.SYMCOD.COM JS3 and JS4 logical outputs All logical outputs are open collector type and are remote controllable by software. The four outputs are available on both connectors JS3 and JS4. Three of these outputs are specially made for LEDs (red, yellow and green) and they are normally opened (OFF).
- Page 15 IP Bridge V3/V3+ WWW.SYMCOD.COM Circuit of relay output connector JP1...
- Page 16 IP Bridge V3/V3+ WWW.SYMCOD.COM Relay #1 connection 1. Plug the positive of the external power source on pin 1 of JP1. 2. Plug the Gnd of the external power source on pin 2 of JP1. 3. Plug the Gnd of the load to control on pin 3 of JP1.
- Page 17 IP Bridge V3/V3+ WWW.SYMCOD.COM Relay #2 connection 1. Plug the positive of the external power source on pin 6 of JP1. 2. Plug the Gnd of the external power source on pin 7 of JP1. 3. Plug the Gnd of the load to control on pin 8 of JP1.
-
Page 18: Ethernet Port
The IP Bridge can be powered by an individual power supply, a single or 16 ports DC-Injector (use only SYMCOD DC- Injector). As all the standard 100BaseT Ethernet devices, it uses a UTP CAT5 cable. A maximum length of 300 feet (91.44 meters) is allowed between the HUB or the SWITCH... - Page 19 IP Bridge configuration The IP Bridge is configurable with the “BoardConfig” software which can be downloaded (free of charge) from our website at www.symcod.com, see Download section. Sample software written in Visual Basic 6 is also available with source code.
- Page 20 Description Picture 504-00003B 9 VDC, 110V power supply 208-01001B Single Dc Injector, with 12V power supply Symcod DC Injector V1.0 110V US 022-01050 16 Ethernet ports, power supply and power cord included 3.50 MM 10 POS connector 518-00763B Optional, for output relay 10 POS 3.5MM BK connector...
- Page 21 ) Uses RFID to transmit unique code wirelessly Proximity Power Over Ethernet uses the Ethernet cable to provide power. Proprietary to POE Symcod Symcod. Light Emitting Diode, electronic component that lights up when electrical current is apply to it.
- Page 22 1171 Notre-Dame O., Victoriaville, Qc, G6P 7L1 Phone: 1-800-203-9421, 1-819-751-0095 Fax: 819-751-1292 Return Merchandise Authorisation (RMA) All return request must be authorized by SYMCOD Inc. To do so please refer to the following: www.symcod.com/rma • You will receive a formal confirmation number (# RMA) •...
- Page 23 Although workmanship during one year from downloading and printing documents Safety and reliability, Page 2 the purchase date. If a product proves is allowed, Symcod will not be defective material responsible for any modification or Indoor use only, Page 5...
