IP Bridge V3/V3+
Power connector
The power connector allows you to provide power to the IP Bridge. The input is
8VDC to 20VDC with protected polarity. The connector is a 712RAPC Switch craft type
and accepts 2.5mm plugs, positive center.
IP Bridge configuration
The IP Bridge is configurable with the "BoardConfig" software which can be
downloaded (free of charge) from our website at www.symcod.com, see Download
section. Sample software written in Visual Basic 6 is also available with source code.
The IP Bridge V3 supports commands of IP Bridge V1.
Recommendations
Ethernet Cabling:
available on our website at
IP Bridge accessibility:
bridge in a secure location accessible to administrator only.
WWW.SYMCOD.COM

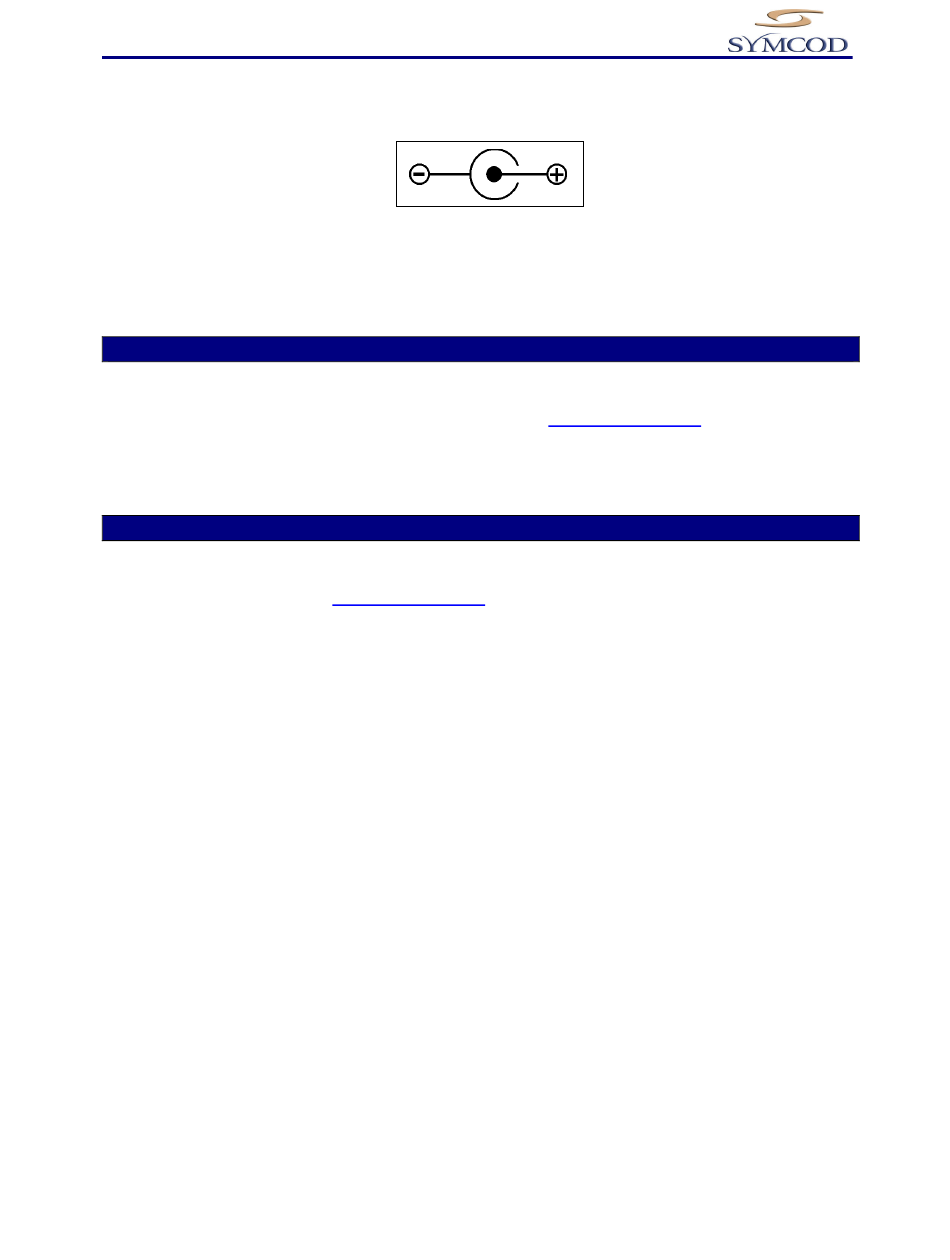

Power connector polarity
Please consult "
Ethernet wiring and recommendations TCPIP"
www.symcod.com before proceeding with your installation.
For security reason it would be preferable to install the IP
