Funkwerk EGO TALK Quick Manual page 2

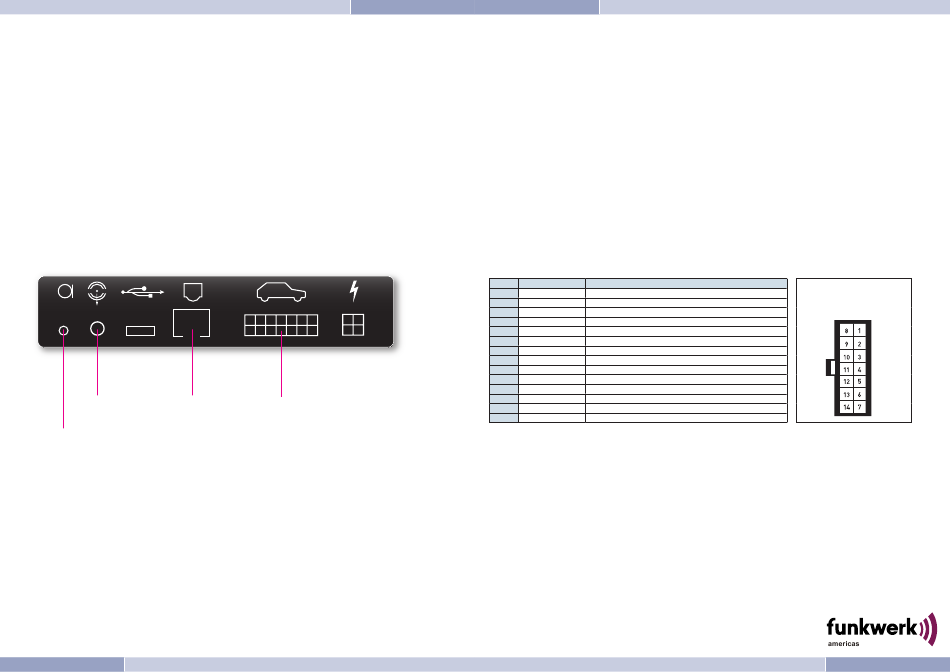

Connection Concept
Line out Command unit
(Stereo)
Microphone
Adapter cable
Pin Color Function
1 Brown Ground
2 Yellow Radio mute
3
4
5
EGO audio input (+) from Radio or Amplifier
6 White
EGO audio output (+) to Speaker
7 Purple
Battery +12 VDC
8 Red
Ignition +12 VDC
9 Blue
10
11
12
EGO audio input (-) from Radio or Amplifier
13 Black
EGO audio output (-) to Speaker
14 Green
View of the plug side, from which
the wiring is fed in the plug
housing (with pin allocation)
