Electrical Connections; Fuse Replacement - Labomed Prima Mu User Manual

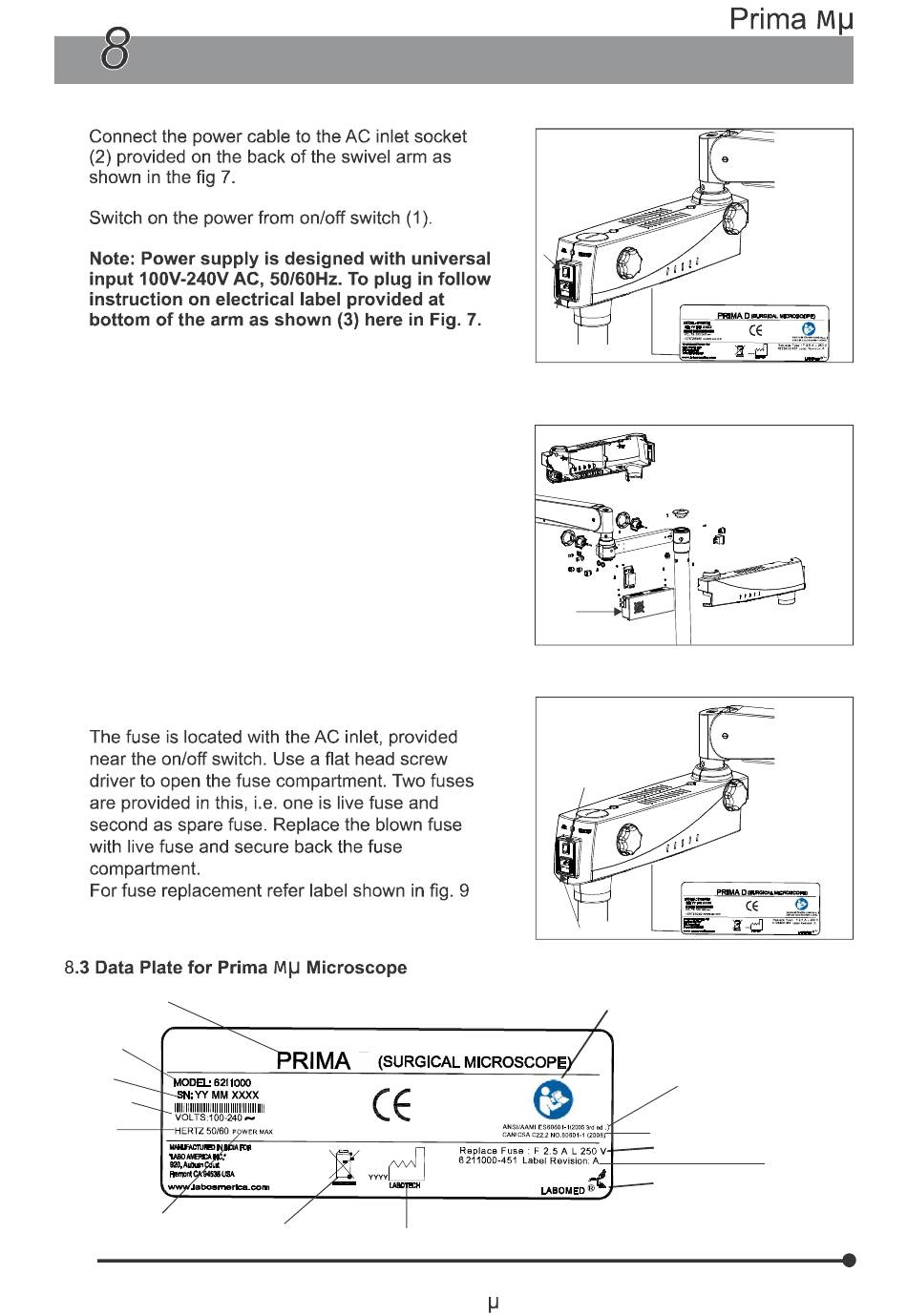

ELECTRICAL CONNECTIONS

8.1
Replacing the illumination source
Open the swivel arm cover's. Detach the fibre
optic cable and replace the illumination assembly
A with new assembly. Secure back the arm
cover's.

8.2 Fuse Replacement

Device Name
Model Number
Serial Number
Input Voltage
Frequency
Max. Load
11
6210000-795
Mu
60 W
Separate Disposal
Manufacturer
waste electric device
1
2
A
On/Off Switch
AC Inlet
Prima M
3
Fig. 7
Fig. 8
Fig. 9
Accompanying Document
must be consulted
IEC60601-1:2005
Labeling for USA & Europe
IEC60601-1:2005
Labeling for Canada
Fuse Rating
Label Control
Number
Company
Trademark
