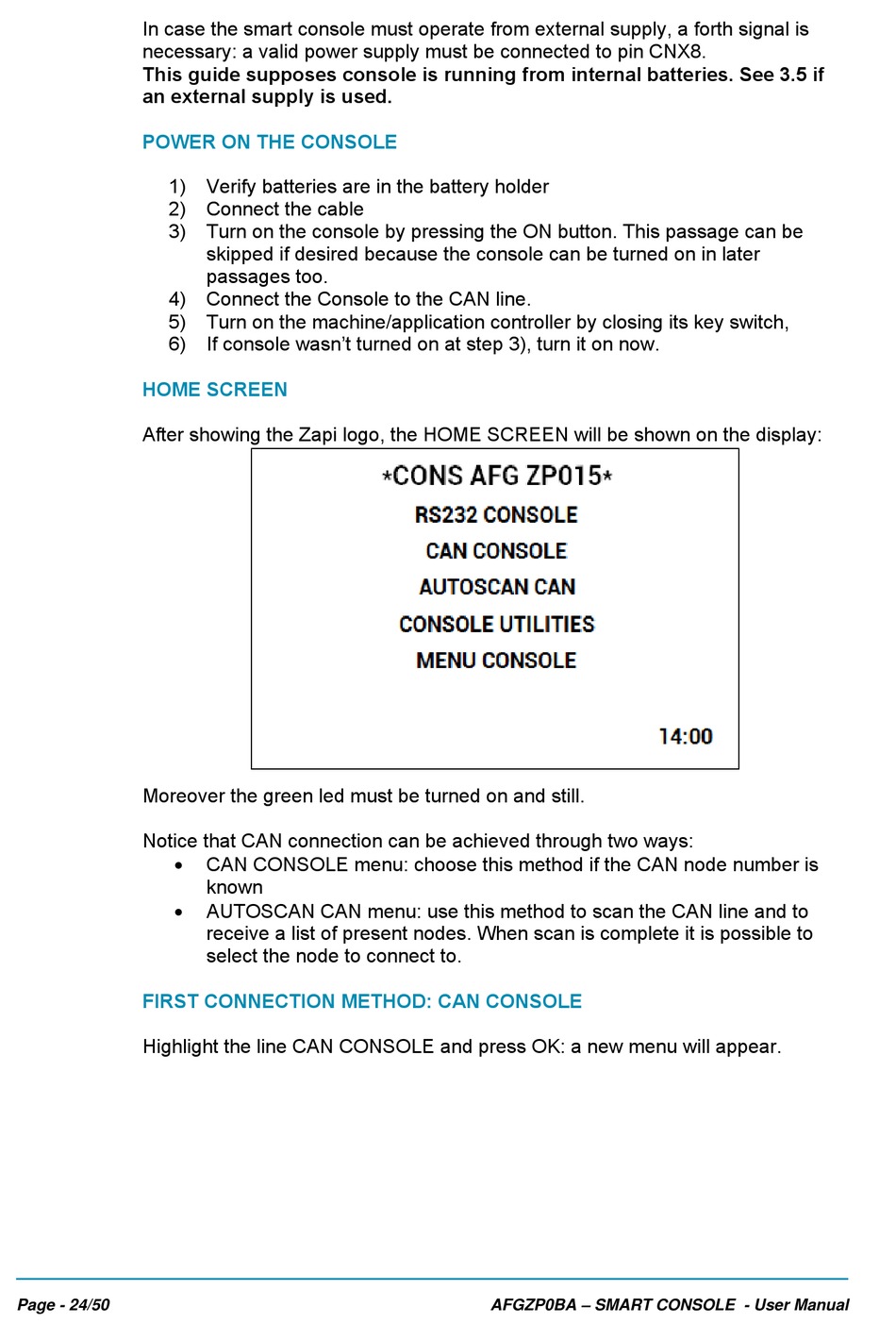

Zapi SMART CONSOLE User Manual page 24

In case the smart console must operate from external supply, a forth signal is
necessary: a valid power supply must be connected to pin CNX8.
This guide supposes console is running from internal batteries. See 3.5 if
an external supply is used.
POWER ON THE CONSOLE
1)
2)
3)
4)
5)
6)
HOME SCREEN
After showing the Zapi logo, the HOME SCREEN will be shown on the display:
Moreover the green led must be turned on and still.
Notice that CAN connection can be achieved through two ways:


FIRST CONNECTION METHOD: CAN CONSOLE
Highlight the line CAN CONSOLE and press OK: a new menu will appear.
Page - 24/50
Verify batteries are in the battery holder
Connect the cable
Turn on the console by pressing the ON button. This passage can be
skipped if desired because the console can be turned on in later
passages too.
Connect the Console to the CAN line.
Turn on the machine/application controller by closing its key switch,
If console wasn't turned on at step 3), turn it on now.
CAN CONSOLE menu: choose this method if the CAN node number is
known
AUTOSCAN CAN menu: use this method to scan the CAN line and to
receive a list of present nodes. When scan is complete it is possible to
select the node to connect to.
