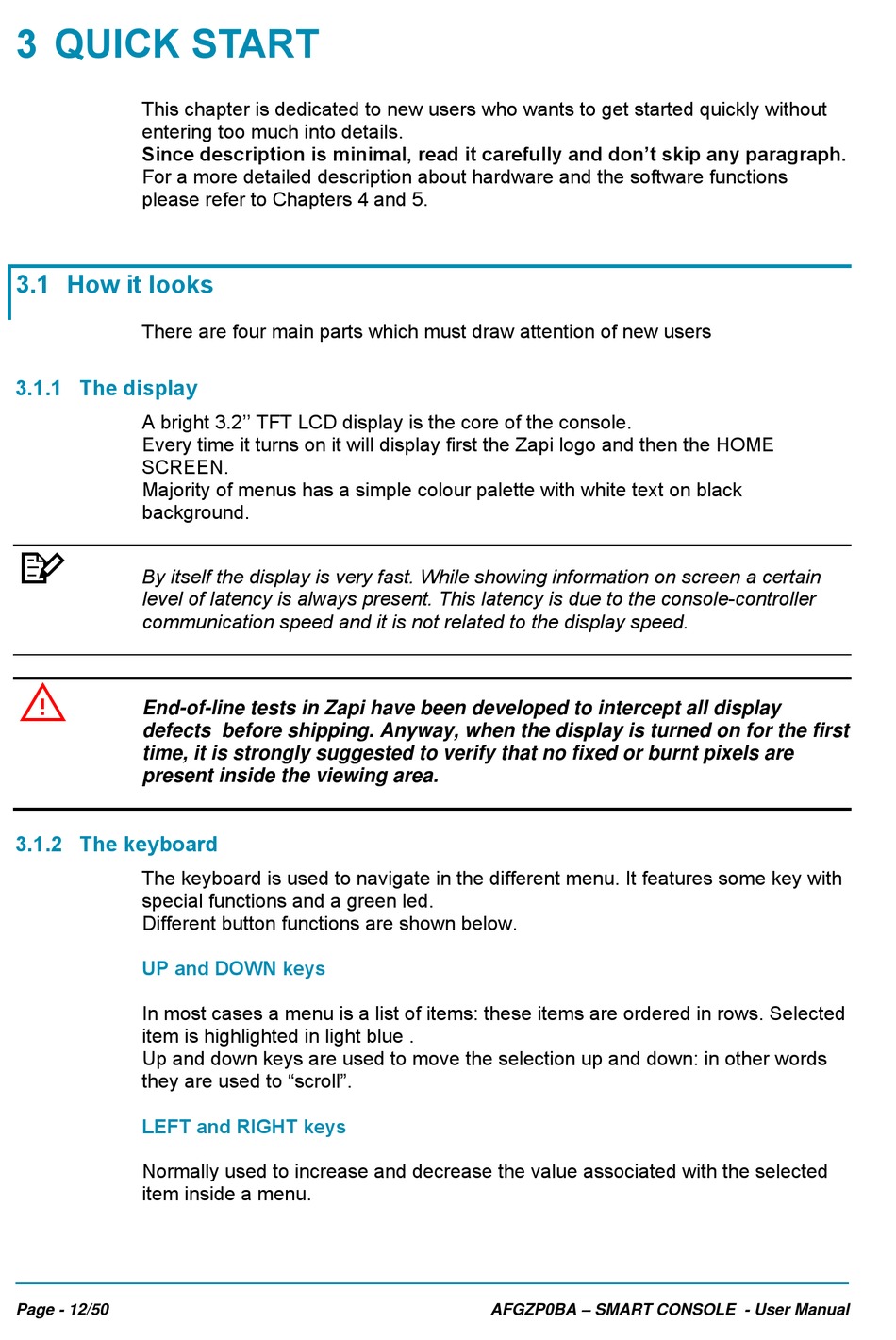

3 QUICK START

This chapter is dedicated to new users who wants to get started quickly without
entering too much into details.
Since description is minimal, read it carefully and don't skip any paragraph.
For a more detailed description about hardware and the software functions
please refer to Chapters 4 and 5.

3.1 How it looks

There are four main parts which must draw attention of new users

3.1.1 The display

A bright 3.2'' TFT LCD display is the core of the console.
Every time it turns on it will display first the Zapi logo and then the HOME
SCREEN.
Majority of menus has a simple colour palette with white text on black
background.
4
By itself the display is very fast. While showing information on screen a certain
level of latency is always present. This latency is due to the console-controller
communication speed and it is not related to the display speed.
U
End-of-line tests in Zapi have been developed to intercept all display
defects before shipping. Anyway, when the display is turned on for the first
time, it is strongly suggested to verify that no fixed or burnt pixels are
present inside the viewing area.

3.1.2 The keyboard

The keyboard is used to navigate in the different menu. It features some key with
special functions and a green led.
Different button functions are shown below.
UP and DOWN keys
In most cases a menu is a list of items: these items are ordered in rows. Selected
item is highlighted in light blue .
Up and down keys are used to move the selection up and down: in other words
they are used to "scroll".
LEFT and RIGHT keys
Normally used to increase and decrease the value associated with the selected
item inside a menu.
Page - 12/50 AFGZP0BA – SMART CONSOLE - User Manual
