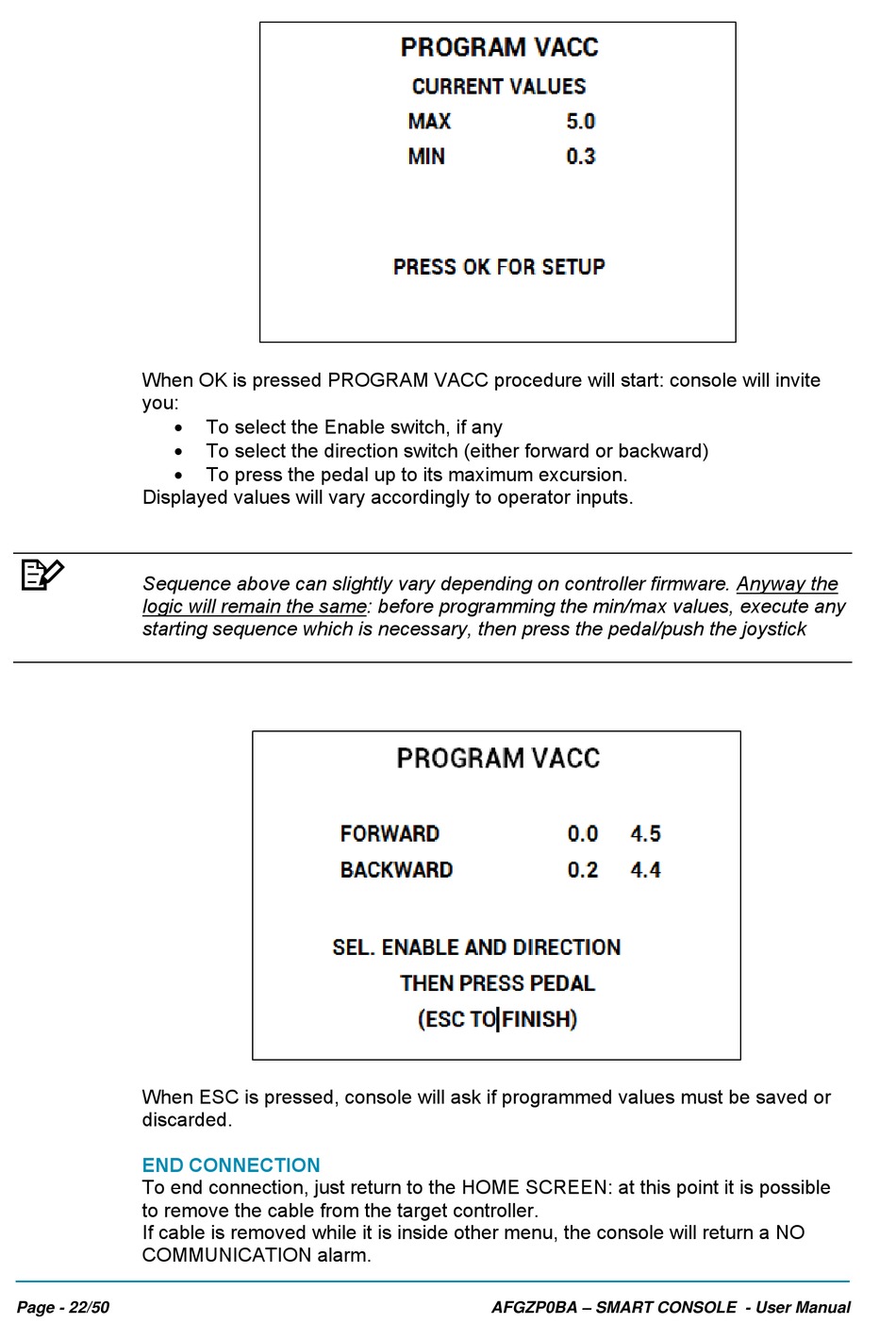

When OK is pressed PROGRAM VACC procedure will start: console will invite
you:



Displayed values will vary accordingly to operator inputs.
4
Sequence above can slightly vary depending on controller firmware. Anyway the
logic will remain the same: before programming the min/max values, execute any
starting sequence which is necessary, then press the pedal/push the joystick
When ESC is pressed, console will ask if programmed values must be saved or
discarded.
END CONNECTION
To end connection, just return to the HOME SCREEN: at this point it is possible
to remove the cable from the target controller.
If cable is removed while it is inside other menu, the console will return a NO
COMMUNICATION alarm.
