Summary of Contents for CSI CM24

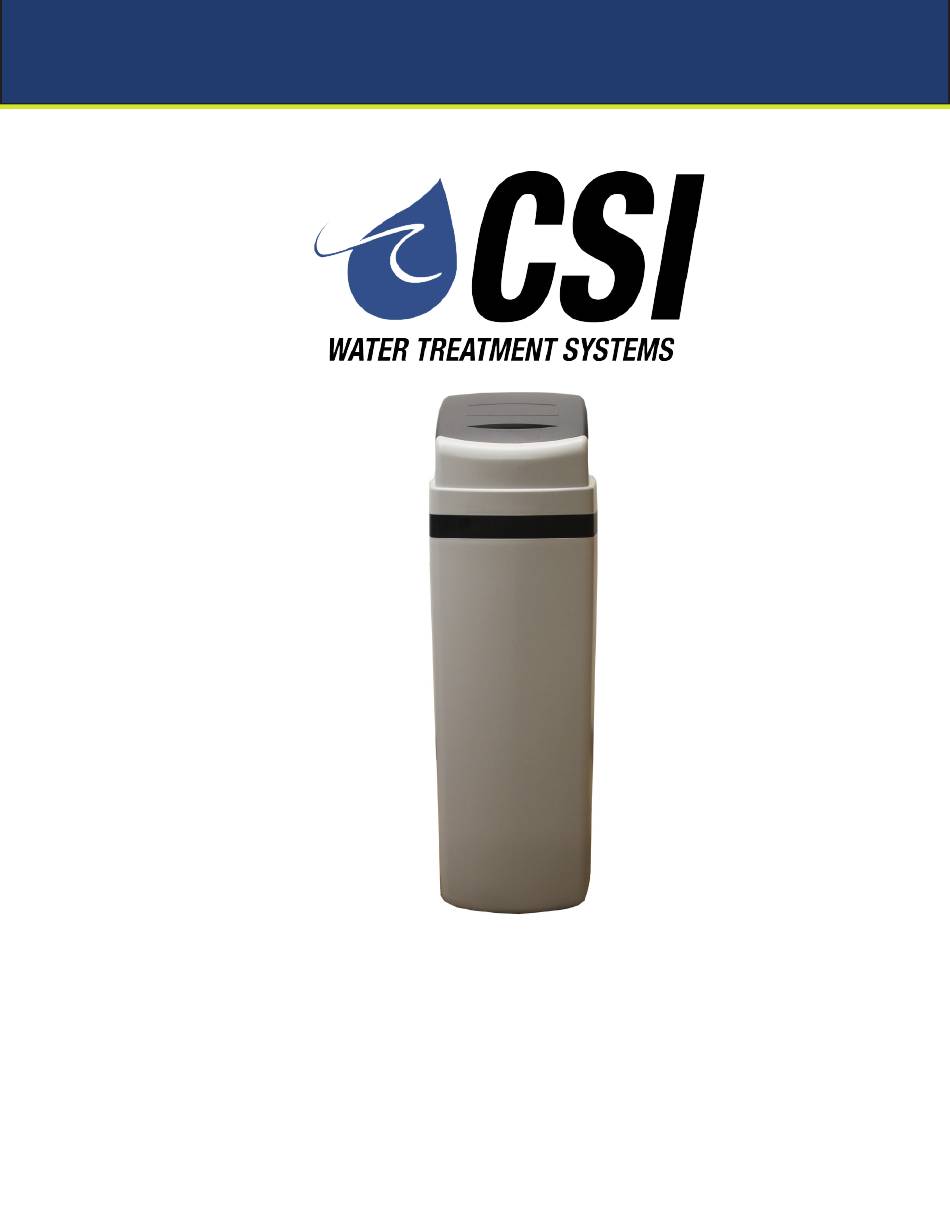

  • Page 1 Cabinet Softener Manual Installation / Operation Manual...
  • Page 2: Table Of Contents

    Softener Specifications................... Page 3 Softener Installation..................Page 5 Start Up Procedure..................Page 10 Master Programming..................Page 12 Utilizing Bluetooth..................Page 13 Powerhead Assembly..................Page 16 Valve Body Assembly..................Page 17 Cabinet Body Assembly................. Page 19 Bypass Assembly....................Page 20 Additional Information.................. Page 21 Troubleshooting....................
  • Page 3: Softener Specifications

    Softener Specifications General Specifications General Specifications CM24 CM32 Grains Capacity - Regeneration / Lbs Salt Used* 20,000 / 7.5 27,000 / 9 Maximum Raw Water Hardness (grains) Maximum Clear Iron / Manganese Exchange Resin (cu ft per tank) Mineral Tank Size...
  • Page 4 Softener Specifications PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING OPERATING PRESSURE RANGE : 20 - 125 PSI OPERATING TEMPERATURE RANGE : 33º F - 120º F INLET / OUTLET PIPE SIZE : 3/4: FNPT PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES Please read the entire Owner’s Manual and Instruction before installation.
  • Page 5: Softener Installation

    Installation -Pre-Installation Check List- A water test should always be performed in order to determine total water hardness (in gpg) and total dissolved iron (in parts per million - ppm). This is critical for proper equipment selection, sizing and for determining the pro- gram for regeneration frequency.
  • Page 6 Installation -Softener Location / Other Requirements- • Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic). Note •...
  • Page 7 Installation -Drain Line Connection- 1. The drain line flow control assembly is pre-assembled for your convenience. Should you choose to hard plumb the drain line, please remove the barb fitting. The flow control housing can be removed by removing the clip and pull ing straight out on housing.
  • Page 8 Installation - Pressurizing The System - 1. Make certain the Control Valve is in SERVICE position. 2. Slowly rotate bypass valve to the SERVICE position. (Position of bypass lever is parallel to inlet / outlet piping.) 3. Open the nearest faucet to evacuate air from plumbing lines. 4.
  • Page 9 Start Up Procedure 1. Set time of day. 2. Set a.m. or p.m. 3. Set water hardness in grains per gallon (gpg). Note: If the water contains iron and / or manganese, multiply the total parts per million (ppm) by “four” (4) and then add to the grains per gallon (gpg) of hardness.
  • Page 10: Start Up Procedure

    Start Up Procedure - Final Check - 1. Be certain the bypass valve is in the SERVICE position. 2. Make sure the power supply is connected to an uninterrupted 115-volt outlet. 3. Check that the time of day is set 4.
  • Page 11 Start Up Procedure Normal Operation 1. Home Display The RS1 model will alternate the Time of Day and Gallons left until the next regeneration. The meter will count down to zero (0000) and then regenerate at the scheduled time set. Starting Extra Regeneration Cycle 1.
  • Page 12: Master Programming

    Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1.
  • Page 13: Utilizing Bluetooth

    Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2.
  • Page 14 Set Up Utilizing Bluetooth App Change Time of Day (Press “SET” to set time automatically based on device). For Filters: Set Backwash Frequency This sets the amount of day between backwash cycles Set Regeneration Time Example: For 2a.m., just type 2, choose a.m., and press ‘OK’ Note: If you have a filter and a softener the valves should be set to regenerate at different times.
  • Page 15 Set Up Utilizing Bluetooth App Status and History From the Status and History, all items in ORANGE can be reset. Pressing this icon will show a list of the data that is in the graph. Touch any graph to enlarge and see details.
  • Page 16: Powerhead Assembly

    Power Head Assembly DESCRIPTION PART NO. Metered Power Head Assy. 21003X100 Softener Circuit Boad Assy. 22003X102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear 21001X120 Power Supply 20001X125 Back Plate 20001X005 Lower Front Base For Cover 20111X002 Legacy View Motor Assy. 20016X006 Lower Back Base for Cover 20111X003...
  • Page 17 Cabinet Valve Body Assembly...
  • Page 18: Valve Body Assembly

    Valve Body Assembly DESCRIPTION PART NO. Piston Assembly 20001X231 10-24 X 3/4” Screw SST 20001X001 Seal and Spacer Kit 20561X253 End Spacer 20001X234 Flow Control Button 1.5 GPM 20251X266 Flow Control Button 2.0 GPM 20251X267 Flow Control Button 2.4 GPM 20251X268 DLFC Assy.
  • Page 19: Cabinet Body Assembly

    Cabinet Body Assembly 40470X001 (Top Cap Cabinet) 40470X000 (Bottom Cabinet includes brine well) • To remove top cap of cabinet, pull bottom back of base outwards and lift up gently. • To add top cap back on cabinet line up to bottom and gently push down snapping back into place.
  • Page 20: Bypass Assembly

    Bypass Assembly DESCRIPTION PART NO. D15 Bypass 1 20017X283 20017X283 D15 Bypass 2 20017X284 1" NPT 90° Elbow Set 20017X284 1” NPT 90 ° Elbow Set...
  • Page 21: Additional Information

    Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then Close the valves at the conditioner inlet and outlet.
  • Page 22 Service Instructions / Instructional Videos Available at www.csiwater.com To Replace Piston Assembly 1. Follow steps A1 - A3 2. Remove control valve cover. Disconnect the meter signal wire from the meter. 3. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws. The entire powerhead assembly will now lift off easily.
  • Page 23: Troubleshooting

    Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittent or dead power source 1.Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings programming Automatically Defective power supply Replace power supply Meter is dirty or defective Clean or replace meter assembly...
  • Page 24 Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Plugged drain line or drain line control Check flow to drain. Clean drain line flow control button 7. Excessive Water Dirty or damaged brine valve Clean or replace brine valve. in Brine Tank and Plugged injector or screen Clean or replace injector screen.
  • Page 25: Error Codes

    Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration.
  • Page 26: Warranty

    Other Accessories and Parts 1 Year shall not exceed, the price paid for the product. In no case shall CSI Brine Tank Components 1 Year or seller be liable for any special, incidental, contingent or conse- quential damages.
  • Page 28 CSI WATER TREATMENT SYSTEMS 0923TV 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...

This manual is also suitable for:

Cm32
