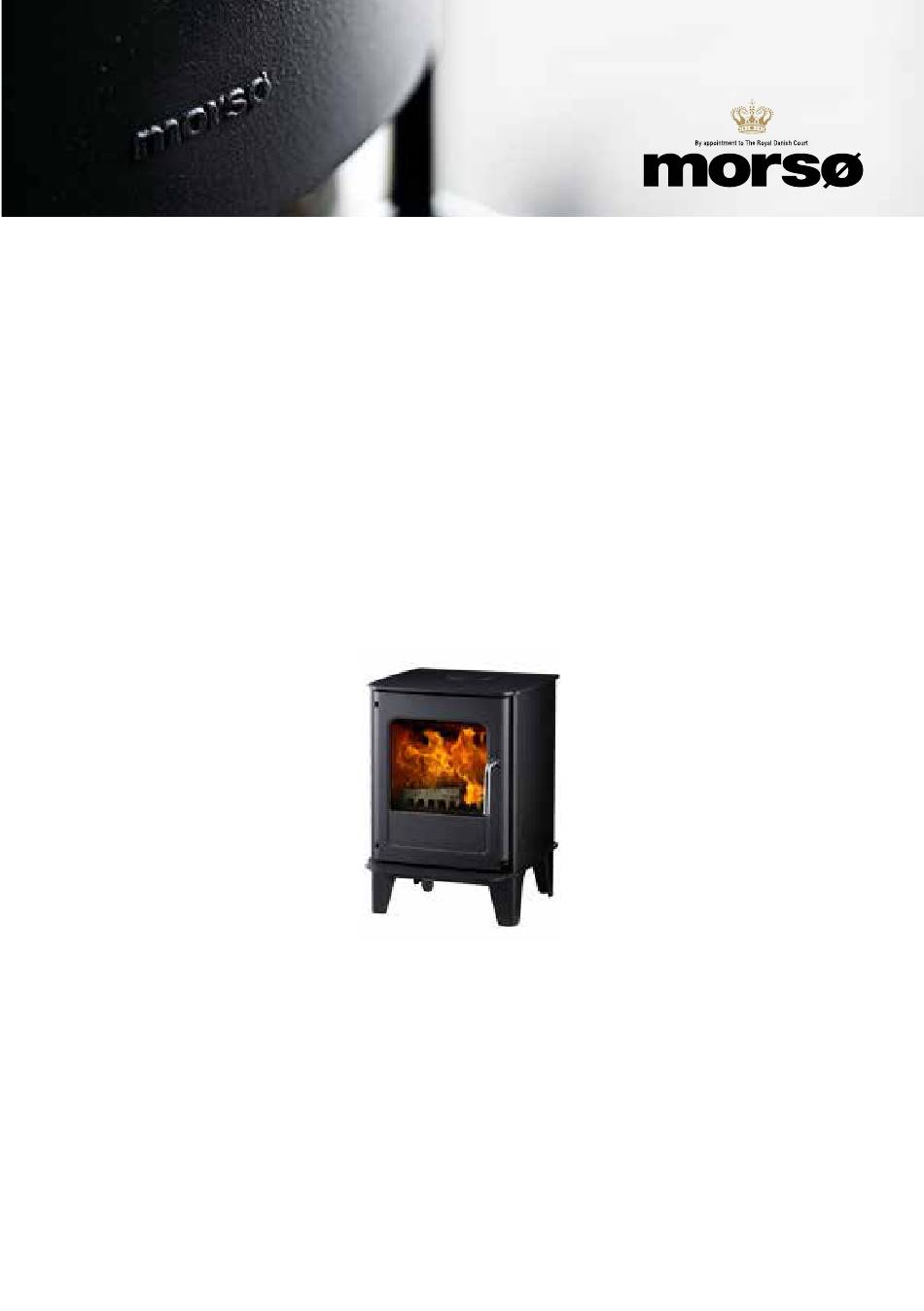

Instructions for Installation and Use
Ø4 -
(81% Efficiency)
UK/EN 13240
DEFRA approved for use in United Kingdom smoke control areas
Distributed by: Morsø UK
Valley Drive · Swift Valley · Rugby, Warks CV21 1TW · England
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O Series and is the answer not in the manual?

Questions and answers

Related Manuals for Morso O Series

Summary of Contents for Morso O Series

  • Page 1 Ø-Collection Instructions for Installation and Use Ø4 - (81% Efficiency) UK/EN 13240 DEFRA approved for use in United Kingdom smoke control areas Distributed by: Morsø UK Valley Drive · Swift Valley · Rugby, Warks CV21 1TW · England MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com ·...

  • Page 2: Table Of Contents

    Enjoy your new Ø-COLLECTION stove! Designed by Danish stove manufacturers Morsø, the Ø-Col- lection incorporates unique design features and, by carefully following the enclosed instructions we are certain that you will enjoy many years of safe, comfortable warmth from your stove.

  • Page 3: Installing Your Morsø Stove

    1.0 Installing your Morsø stove 1.1 Unpacking the stove Carefully lift the stove from the wooden pallet and set it carefully in place. We recommend that two people perform the assembly and installation procedure. Ø4 weighs 80 kg. The stove is intended for intermittent use. 1.2 Installing the stove The stove and chimney installations MUST comply to all current National and Local Buil- ding Regulations;...
  • Page 4 Clearance Distance to combustible materials: Model Behind the To the sides stove (A) of the stove (B) Above the stove To soft furnishings Ø4 650 mm 550 mm 600 mm 700 mm uninsulated flue Ø4 Rev. Revisions Sign.: Date: Rev. Revisions Sign.: Date:...

  • Page 5: The Chimney

    1.5 The chimney Only if National or Local Regulations permit are you permitted to connect a stove into a chimney that is shared by another appliance. YOU MUST be aware of any applicable Regu- lations in this respect. The wood-burning stove must never been connected to a chimney to which a gas-burning stove or appliance is connected.

  • Page 6: Connecting To A Masonry Chimney

    1.7 Connecting the stove to a masonry chimney A wall sleeve should be bricked securely into the wall of the chimney at the appropriate height and the stovepipe inserted centrally. The pipe must not extend into the actual chimney opening, but rather must reach only to the inside of the chimney aperture. The gap between the stovepipe and sleeve must be sealed using glass fibre packing rope.

  • Page 7: Draft Conditions

    1.9 Draft conditions If smoke spillage occurs when the fire door is opened, it is probably due to poor chimney draft. This type of stove requires at least 12 pa of chimney draft to achieve satisfactory com- bustion and smoke spillage prevention. However, in cases where the stove door is opened too vigorously you could expect that slight smoke spillage may occur.

  • Page 8: Firing The Stove

    2.0 Firing the stove/Using your stove The heat output of your stove is regulated by means of the 3 air inlets. A preheated air supplied to the fire across the glass window. The air is supplied when the handle under the ash lip is pushed right in.
  • Page 9 The heating capacity of the stove is regulated with an air-slide control, positioned under the ash lip. The secondary air Both the primary and The primary air supply is secondary air supply open and the secondary air supply is open and the are closed.

  • Page 10: Lighting Instructions And Fuelling Intervals

    2.1 Lighting and fuelling intervals A lot of air is needed when first lighting the stove. When starting with a totally cold stove, it may be helpful to leave the door ajar (2-3cm) during the first few minutes; the air intake should be fully open.
  • Page 11 5. Refuelling of your stove should be done while there are still glowing embers in the bed. Spread the embers across the bottom, but concentrated mostly towards the front of the stove. 6. Place three pieces of fuel weighing roughly 0.6 kg and measuring about 25 cm in length across the embers in one layer, with spacing of roughly 1 cm between the pi- eces of wood.
  • Page 12 The stove door should normally be opened gently the first 2 - 3 centimetres, then you should wait until the pressure has equalised before opening the door all the way. This technique will prevent smoke from getting out, particularly when there is a poor draught. The stove door should never be opened when the stove is being fired vigorously.

  • Page 13: Routine Stove Maintenance

    3.0 Routine stove maintenance 3.1 External maintenance The surface of the stove is painted with heat-resistant Senotherm paint. If the stove is used too vigorously, the painted surface may take-on a greyish tinge. It is easily maintained by simply vacuuming the surface with a soft brush attachment and applying two light layers of paint. Ø-Collection stoves are painted using a Morsø...

  • Page 14: Cleaning The Stove

    Reasons for premature wear of internal parts • Stove being used/fired too vigorously • Too much air passing through the bottom grate • Use of excessively dry wood (wood from old furniture) • Excessive debris collection on baffle plate or inner fireback (see section on cleaning) •...

  • Page 15: Alternative Fuel Types

    4.0 Alternative fuel types Your new Ø-Collection stove is EN-approved for burning wood. However, the stove is capable of burning other solid fuels as manufactured smokeless coal or good quality anthracite (stove nuts). BITUMINOUS HOUSE COAL SHOULD NEVER BE USED IN YOUR STOVE. Before burning solid fuel Install the chrome iron basket into the firebox.

  • Page 16: Hetas Admendments

    5.0 HETAS amendments Health and safety precautions Special care must be taken when installing the stove such that the requirements of the He- alth and Safety at Work Act are met. Handling Adequate facilities must be available for loading, unloading and site handling. Fire Cement Some types of fire cement are caustic and should not be allowed to come into contact with the skin.
  • Page 17 Any existing chimney must be clear of obstruction and have been swept clean immediately before installation of the stove. If the stove is fitted in place of an open fire then the chim- ney should be swept one month after installation to clear any soot falls which may have occurred due to the difference in combustion between the stove and the open fire.
  • Page 18 a) Open doors and windows to ventilate room. b) Let the fire out or eject and safely dispose of fuel from the appliance. c) Check for flue or chimney blockage, and clean if required. Do not attempt to relight the fire until the cause of the fume emission has been identified and corrected.
  • Page 19 MaintenanCE parts for Ø-Collection Description Product Code Ø4 Riddling Grate 44203300 Coal insert 33000200 Grate Frame Baffle, lower 33005800 Baffle, upper 33006000 Draft Reducer 73002661 Glass 79000100 Tertiary Baffle 73005961 Back brick 79006900 Side brick 79007000 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø...
  • Page 20 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 8 - 12 cm thick. • Light Light with dry kindling (use 1 - 2 kg). Leave the door ajar and stay close to the stove during the lighting phase.
