SPRING/DIAPHRAGM ROTARY ACTUATORS
I. DESCRIPTION AND SCOPE
Models 48D and 48R are multi-spring, single act ing,
spring opposed, rotary ac tu a tors used with Cash co
rotary control valves. Regardless of fi nal installed
fail ure action, the ac tu a tor is always pres sur ized on
"top" of the traveling diaphragm plate.
Cashco has adopted a convention as follows in iden ti -
fy ing its rotary actuators:
"D" = Direct Action = ATC-FO Action
"R" = Reverse Action = ATO-FC Action
The Model 48 actuator is fi eld re vers ible by ar range -
ment of actuator with respect to valve stem and valve
plug/disc orientation. Some dis as sem bly is re quired,
but no new parts are re quired.
Reference the technical bulletin of the valve body these
actuators are unitized with for operating/in stal la tion/
se lec tion specifi cations; i.e. available bench settings,
strokes, etc.
II. MODEL NUMBERING
The basic Model Number identifi es the actuator size and action. To identify a unique Model Number, an oth er series
of 2-character modifi ers is added to the basic number. This number will identify which basic valve body the actuator
may be used on. See Table 1.
Basic Model No.
48 in
2
size
Reverse Action
(ATO-FC)
INSTALLATION, OPERATION & MAINTENANCE MANUAL (IOM)
MODEL 48
SECTION I
SECTION II
TABLE 1

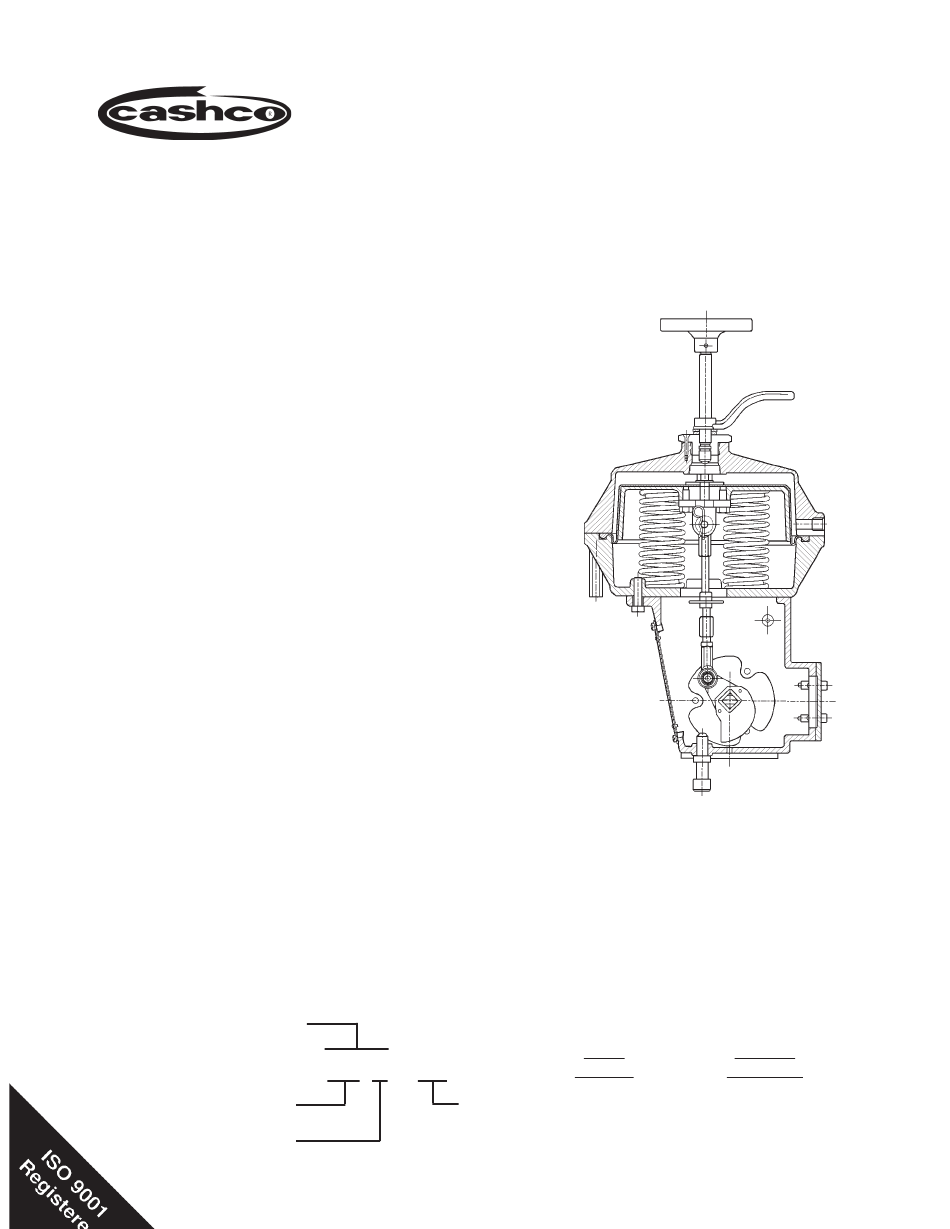

4 8 R - 0 1
Modifi er
Figure 1
Model 48 Actuator
Valve
Modifi er
Product
Series No.
Ranger QCT
-00 through -09
Premier EZO
-00 through -09
Premier Unlined
-00 through -09
IOM-48
12-13
