3.4 Fan Specification

Size
S11 60A, 90A
120A, 150A, 180A,
S13
210A
300A, 400A, 500A,
S14
600A
450A, 700A
S14
S16 800A

3.5 Environmental installation conditions

Ambient temperature
Storage temperature
Installation place
Altitude
Humidity
Pollution Level

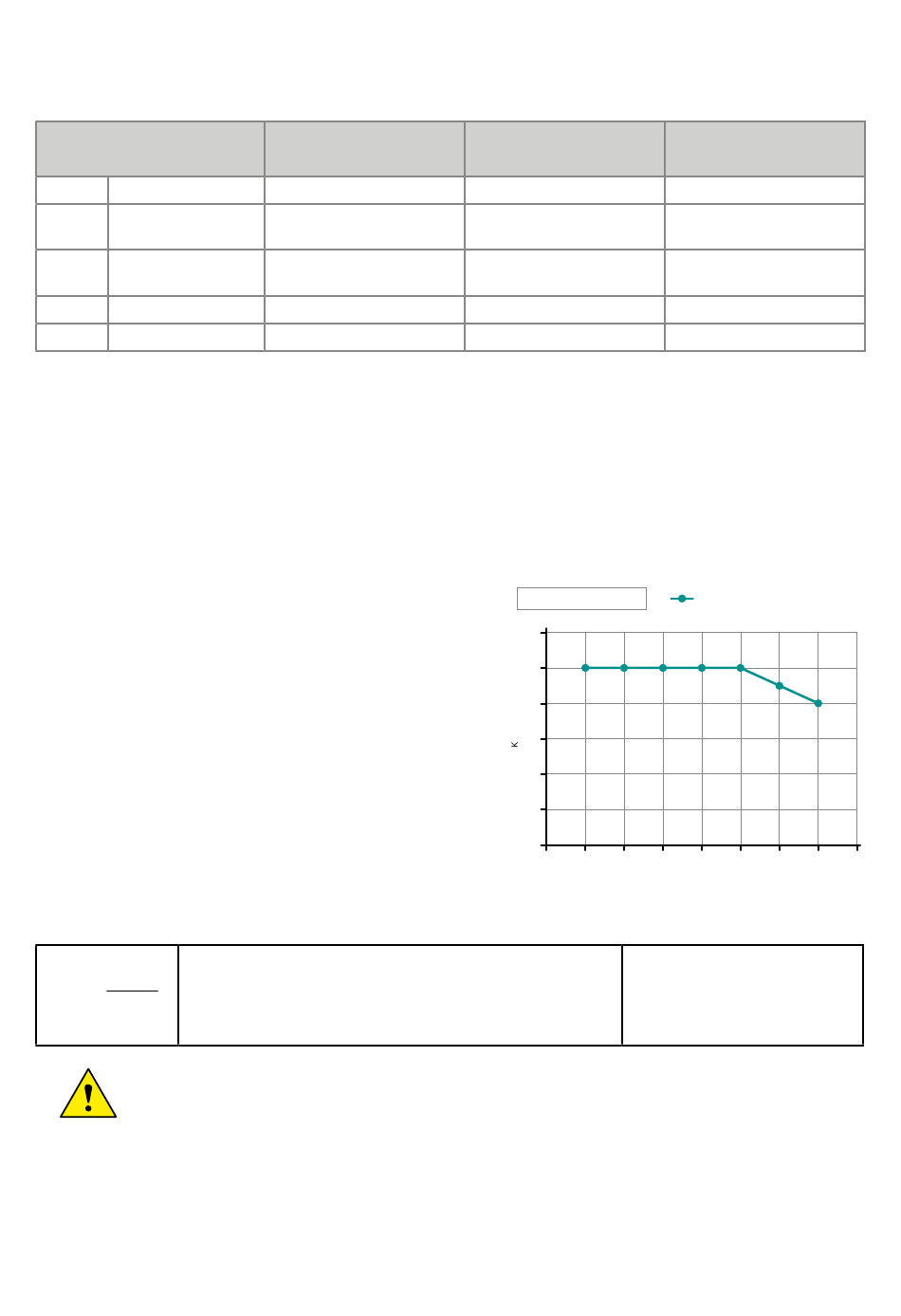

3.6 Derating Curve and Thermal conditions

The nominal current of the units in specification are referred
to continuos service at 40°C ambient temperature. For higher
temperature multiply the nominal current times derating
coefficient K here represented:

3.7 Calculating flow capacity of the fan

All the thyristor units when are in conduction produces power
loss that is dissipated inside cubicle in terms of heating. Due
to this fact the internal temperature of cubicle is higher than
ambient temperature. To be cooled the thyristor need of
fresh air cooling and to do it is normally used a fan mounted
on the front door or on the roof of the cabinet.
Procedure to size Fan air mass flow (V): see power loss for
each thyristor and fuse mounted indicated in the manual
related to the current (Output feature and Internal fuse
Chapter)
Qv = total power losses (w) (thyristor + fuse power loss)
V=f * Qv
ta = ambient temperature (°C)
tc = cabinet temperature (°C)
tc-ta
V = fan air mass flow (m3/h)
f = altitude coefficient (see table on right)
The formulas used are for information only and is not a substitute for a proper thermal
rating done by a qualified person.
Number of fans
230Vac Standard
One Fan - 16W
Two Fans - (16W x 2) 32W
Two Fans - (16W x 2) 32W
Four Fans - (16W x 4) 64W
Four Fans - (16W x 4) 64W
0-40°C (32-104°F) at nominal current. Over 40°C (104°F) use the derating curve.
-25°C to 70°C -13°F to 158°F
Don't install at direct sun light, where there are conductive dust, corrosive gas,
vibration or water and also in salty environmental.
Up to 1000 meter over sea level. For higher altitude reduce the nominal current of
2% for each 100m over 1000m
From 5 to 95% without condense and ice
Up to 2nd Level ref. IEC 60947-1 6.1.3.2
Number of fans
115Vac Option
One Fan - 14W
Two Fans - (14W x 2) 28W
Two Fans - (14W x 2) 28W
Four Fans - (14W x 4) 56W
Four Fans - (14W x 4) 56W
l max = l nominal x K
1,2
1
1
0,8
0,6
0,4
0,2
0
15 20
For higher cabinet temperature
contact the producer of the unit
14
User's manual
Number of fans
24Vdc Option
One Fan - 7W
Two Fans - (7W x 2) 14W
Two Fans - (7W x 2) 14W
Four Fans - (7W x 4) 28W
Four Fans - (7W x 4) 28W
Derating
1 1 1 1
0,9
25 30 35 40 45
CABINET TEMPERATURE °C
Altitude
0:100 meters f = 3.1 m3k/Wh
100:250 meters f = 3.2 m3k/Wh
250:500 meters f = 3.3 m3k/Wh
500:750 meters f = 3.4 m3k/Wh
0,8
50 55
