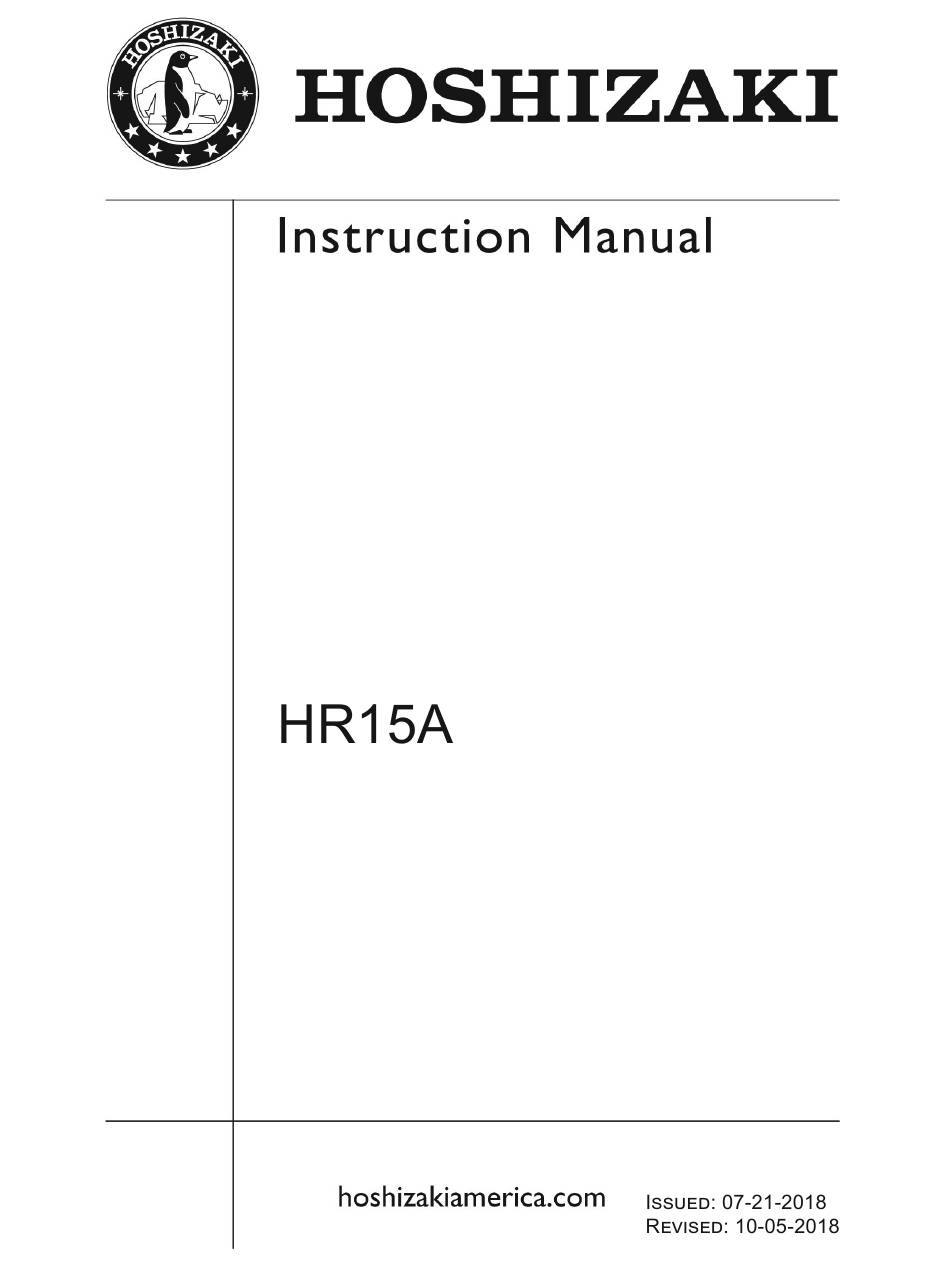

  • Page 1 Refrigerator Model Number: MAN-321-R...
  • Page 2 WARNING Only qualified service technicians should install and service the appliance. To obtain the name and phone number of your local Hoshizaki provides this manual primarily to assist qualified service...

  • Page 3: Table Of Contents

    IMPORTANT This manual should be read carefully before the appliance is installed further reference that may be necessary. TABLE OF CONTENTS Introduction ............... Important safety information ........General safety ............Know your equipment ..........Check for shipping damage ........Handling the cabinet ..........Location ..............

  • Page 4: Introduction

    INTRODUCTION maintenance of your unit. DANGER WARNING NOTICE damage to the appliance or property. IMPORTANT of the appliance. DANGER Risk of Fire or Explosion Flammable Refrigerant Used service.
  • Page 5 WARNING coverage. the appliance. hands.
  • Page 6 WARNING, continued concerning use of the appliance by a person responsible for their safety. Children should be properly supervised around this appliance. could be damaged. appliance could cause harm to individuals or damage to the equipment. This appliance is designed only for storage of package food. Employ may be reduced.

  • Page 7: General Safety

    WARNING, continued other electrical equipment. NOTICE damage the appliance. and closing. GENERAL SAFETY...

  • Page 8: Know Your Equipment

    KNOW YOUR EQUIPMENT ACCESS COVER DOOR CONTROL MODULE POWER CORD SLIDE OUT SHELF LEVELING LEG FRONT GRILLE FIG. 1...

  • Page 9: Check For Shipping Damage

    CHECK FOR SHIPPING DAMAGE Check the crate thoroughly for signs of shipping damage DANGER damage. save all including the four clips or supports for each shelf. WARNING...

  • Page 10: Handling The Cabinet

    HANDLING THE CABINET migrate from the compressor. o not let the unit fall abruptly. LOCATION Cabinet clearance top can be installed around the appliance as long as the front grille remains unobstructed. Front Grille openings kept clean. It is not recommend the use of a custom made grille...

  • Page 11: Remove The Crate And Skid

    REMOVE THE CRATE AND SKID LEVEL THE CABINET The base of the refrigerator has heavy duty leveling legs underneath so the cabinet Leveling leg To lower, turn clockwise To raise, turn counterclockwise FIG. 2...

  • Page 12: Electrical Installation

    ELECTRICAL INSTALLATION WARNING hands. ATTENTION...

  • Page 13: Installing The Shelves

    INSTALLING THE SHELVES WARNING To add or remove a shelf appliance and insert the top hooks into the shelf support slots and drop START UP THE COOLER product. cabinet. increased temperature of the products.

  • Page 14: Door Reversal

    DOOR REVERSAL TOOLS INSTRUCTIONS Step 1 FIG. 3...
  • Page 15 Step 2 FIG. 4 Step 3...
  • Page 16 Step 4. Bushing FIG. 6 Step 5.
  • Page 17 Step 6. Bushing Step 7 FIG. 9...
  • Page 18 Step 8 Step 9 FIG. 11...
  • Page 19 Step 10 FIG. 12 Step 11 Bracket FIG. 13...

  • Page 20: Controls And Adjustments

    CONTROLS AND ADJUSTMENTS STEPS TO CHANGE SETPOINT displayed on the screen. ALARM SAFETIES alarm icon and alarm code.

  • Page 21: Alarm Indicators

    Note: The sound alarm can be turned off by pressing the red button ”set mute” on the right side of the display. In case the alarm is not turned off by the actions suggested, or you have any questions regarding the cooler performance, please contact Hoshizaki Technical Support.

  • Page 22: Cleaning And Maintenance Instructions

    CLEANING AND MAINTENANCE INSTRUCTIONS Cleaning WARNING moving parts. IMPORTANT Maintenance WARNING refrigerator. Check the condenser once a year and use a brush or vacuum cleaner to clean the condenser as required. for repairs.

  • Page 23: Preparing The Appliance For Periods Of Non-Use

    PREPARING THE APPLIANCE FOR PERIODS WARNING that children may not easily climb inside. IMPORTANT WARNING! To reduce the risk of electric shock, do not 4. WARNING! Prevent the door from closing to reduce the risk of children climb inside. DISPOSAL DANGER Risk of Fire or Explosion Flammable Refrigerant Used WARNING...
  • Page 24 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com...
