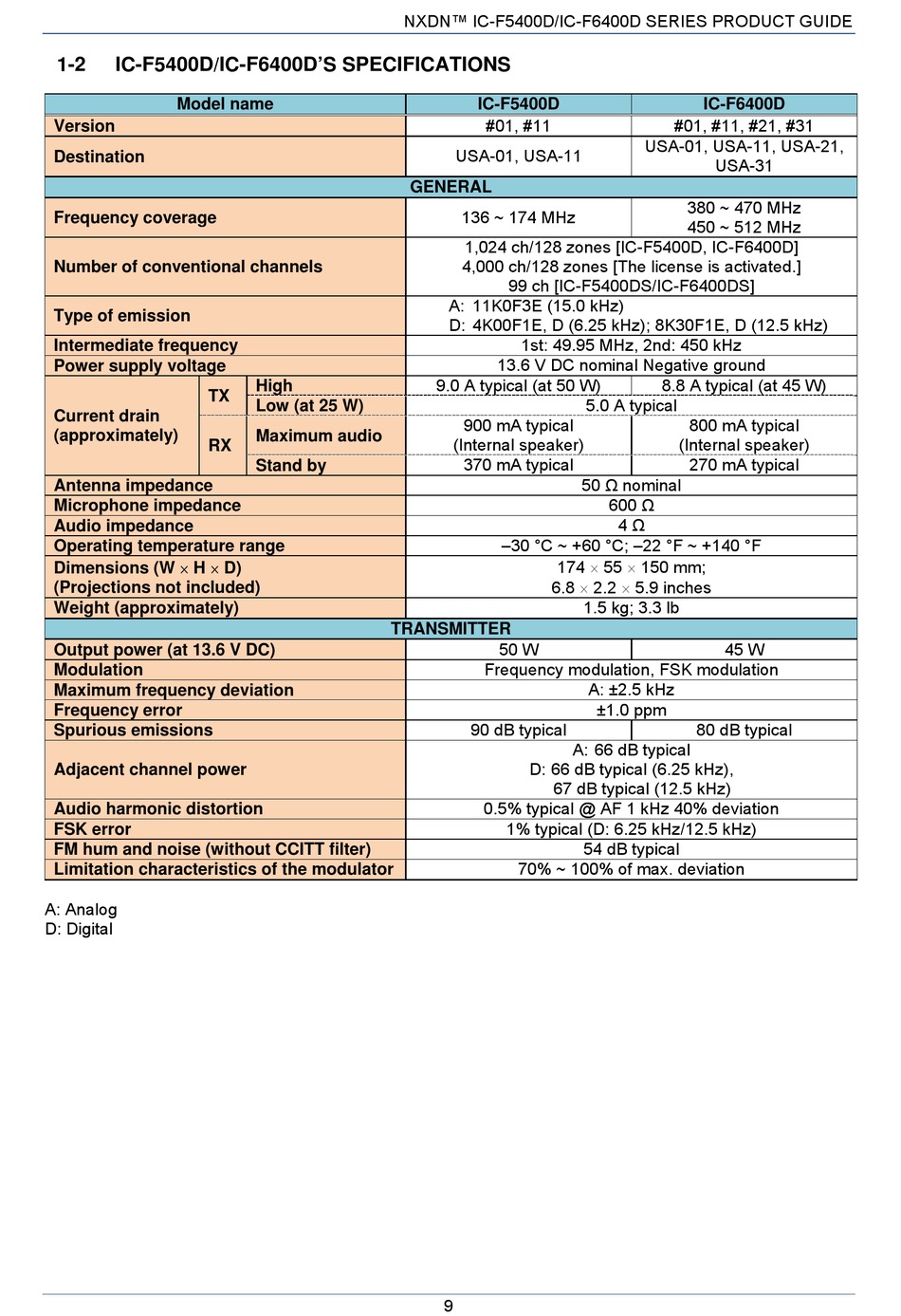

IC-F5400D/IC-F6400D'S SPECIFICATIONS

Model name
Version
Destination
Frequency coverage
Number of conventional channels
Type of emission
Intermediate frequency
Power supply voltage
TX
Current drain
(approximately)
RX
Antenna impedance
Microphone impedance
Audio impedance
Operating temperature range
Dimensions (W  H  D)
(Projections not included)
Weight (approximately)
Output power (at 13.6 V DC)
Modulation
Maximum frequency deviation
Frequency error
Spurious emissions
Adjacent channel power
Audio harmonic distortion
FSK error
FM hum and noise (without CCITT filter)
Limitation characteristics of the modulator
A: Analog
D: Digital
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE
GENERAL
High
Low (at 25 W)
Maximum audio
Stand by
TRANSMITTER
IC-F5400D
#01, #11
USA-01, USA-11
136 ~ 174 MHz
1,024 ch/128 zones [IC-F5400D, IC-F6400D]
4,000 ch/128 zones [The license is activated.]
99 ch [IC-F5400DS/IC-F6400DS]
A: 11K0F3E (15.0 kHz)
D: 4K00F1E, D (6.25 kHz); 8K30F1E, D (12.5 kHz)
1st: 49.95 MHz, 2nd: 450 kHz
13.6 V DC nominal Negative ground
9.0 A typical (at 50 W)
5.0 A typical
900 mA typical
(Internal speaker)
370 mA typical
50 Ω nominal
–30 °C ~ +60 °C; –22 °F ~ +140 °F
174  55  150 mm;
6.8  2.2  5.9 inches
1.5 kg; 3.3 lb
50 W
Frequency modulation, FSK modulation
A: ±2.5 kHz
±1.0 ppm
90 dB typical
A: 66 dB typical
D: 66 dB typical (6.25 kHz),
67 dB typical (12.5 kHz)
0.5% typical @ AF 1 kHz 40% deviation
1% typical (D: 6.25 kHz/12.5 kHz)
54 dB typical
70% ~ 100% of max. deviation
9
IC-F6400D
#01, #11, #21, #31
USA-01, USA-11, USA-21,
USA-31
380 ~ 470 MHz
450 ~ 512 MHz
8.8 A typical (at 45 W)
800 mA typical
(Internal speaker)
270 mA typical
600 Ω
4 Ω
45 W
80 dB typical
