9.3 R
EMOTE TRIGGER TIMING
When the REMOTE MODE switch (see page 19) is set to position 2, the REMOTE OUT terminal can be used to
enable and disable power amplification.

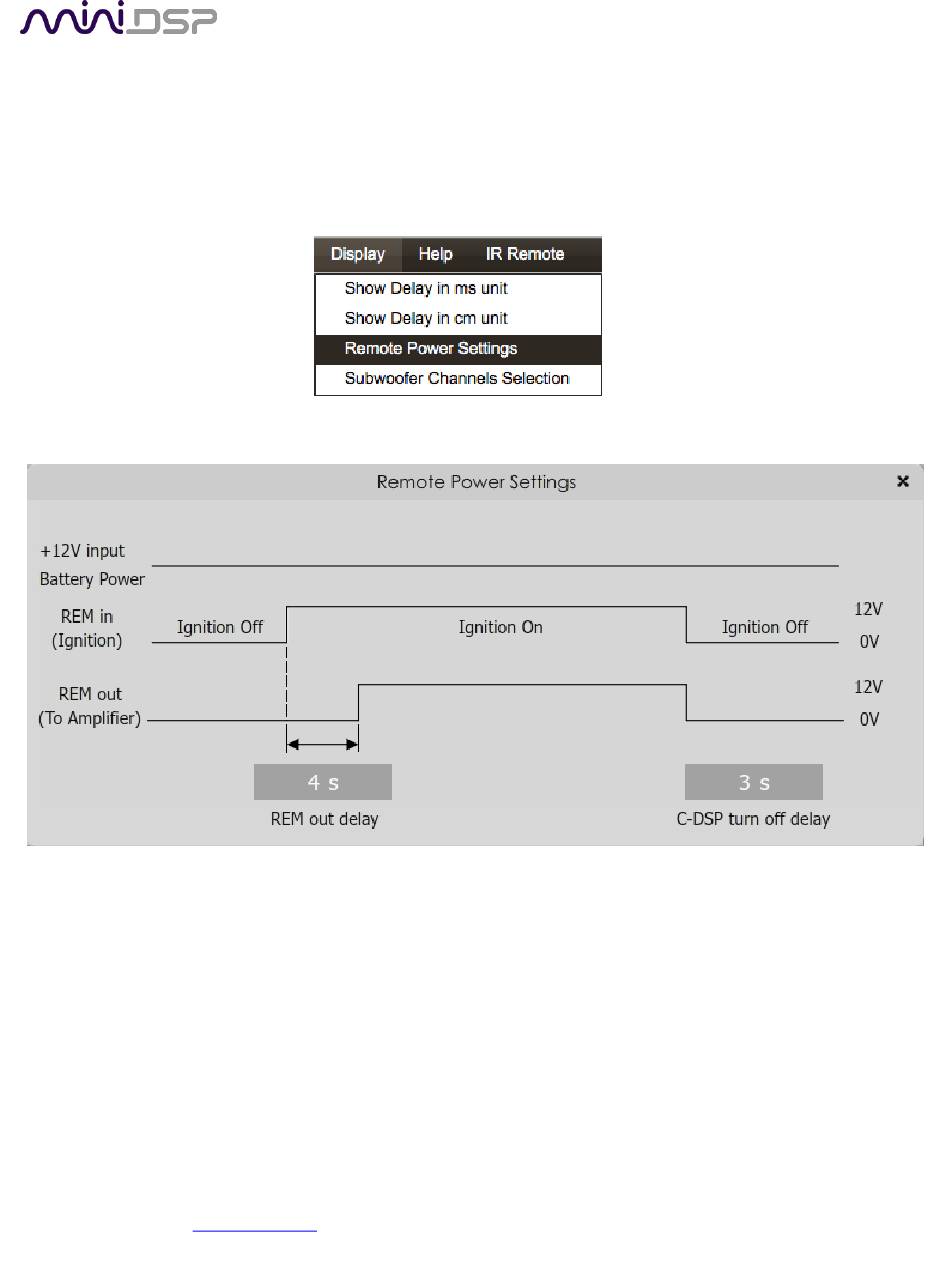

The relevant delays can be configured from within the plugin. To do so, open the C-DSP 8x12 DL plugin, drop
down the Display menu and select Remote Power Settings:
The window shows a timing diagram with two editable text boxes that can be used to change the timing:
REM out delay
This value controls the delay from REMOTE IN going high to REMOTE OUT going high.
C-DSP turn off delay
This value controls the delay from REMOTE IN going low until the C-DSP 8x12 DL turns off.
Enter the desired value for each time delay parameter and press the Enter key. When finished, click the close
"X" icon at the top right, and the settings will be downloaded to the C-DSP 8x12 DL.
Note: the default settings are suitable for 90% of installations. There's no need to change from the default if it's
working fine for you.
