8 P R
LUGIN EFERENCE
8.1 O
UTPUT CHANNEL PROCESSING

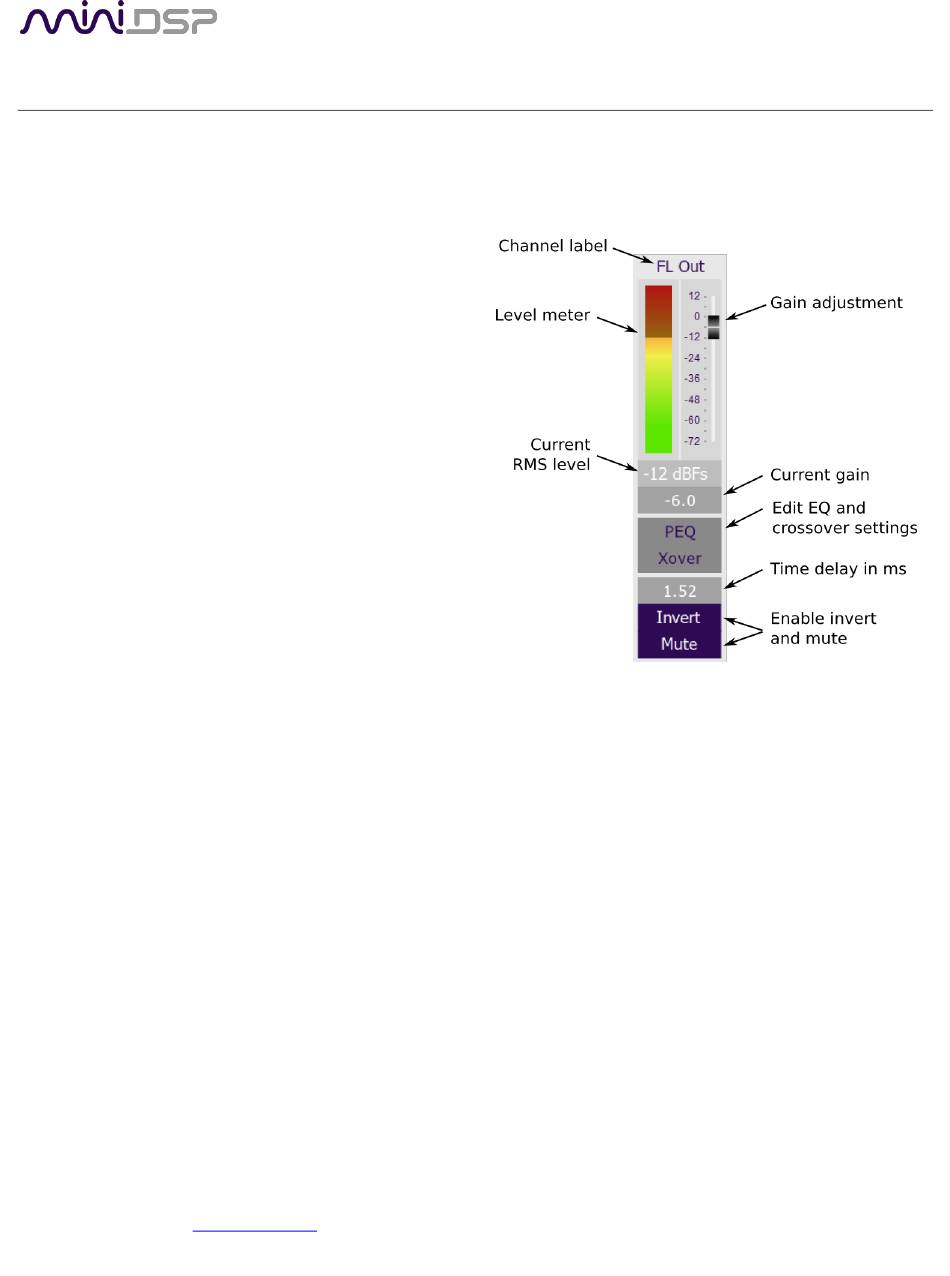

8.1.1 Channel label

Each output channel has a customizable label, which is
shown at the top of the channel strip. This label also
appears on the Routing tab. To change the label, click on
it, type a new label (up to eight characters), and press
the Return key.

8.1.2 Level meter and gain control

Level meter, current RMS level
Displays the current signal level in real time. (The plugin must be in online mode to display signal
levels.)
Gain adjustment
The gain of each channel can be adjusted by moving the Gain Adjustment slider, or by typing the
desired gain into the Current Gain text box. The maximum gain setting is 12 dB, and the minimum gain
setting is –72 dB. (0 dB, the default, is unity gain or no change in level.)
The level meters are useful in many situations. For example, when adding filters with boost, monitor the level
meters with typical signals and maximum levels to ensure that there is no clipping. The meters can also be used
during normal operation to monitor for or to help locate level or gain structure problems.
miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice
PRELIMINARY
58
