5.5.1 Sound System tab

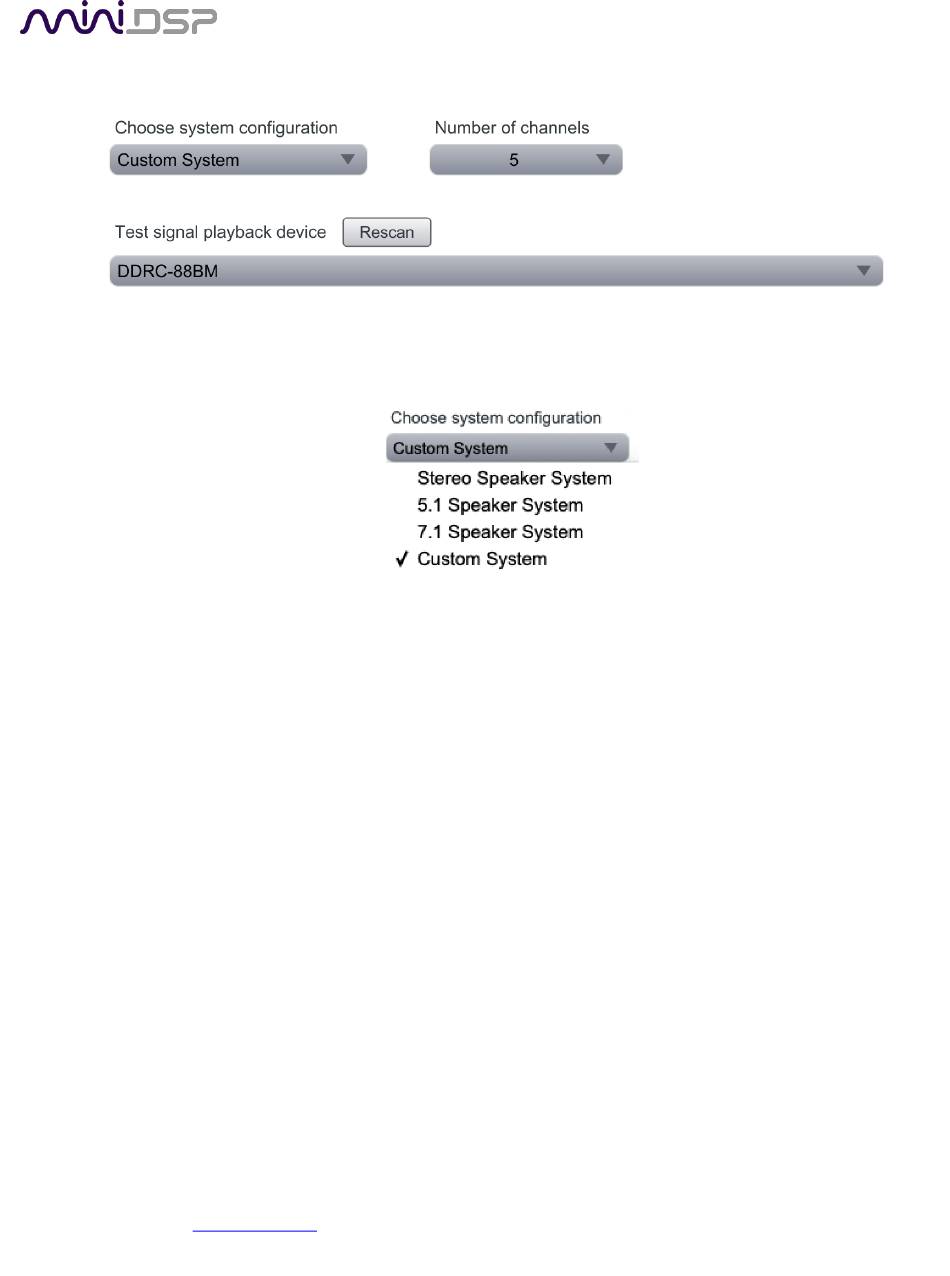

On the Sound System tab, set the following parameters.
Choose system configuration
Use the dropdown menu to select your system configuration.
In a vehicle environment, the Custom System configuration is usually the best choice. When this is
selected, an additional parameter appears as shown above: Number of channels. However, there are a
range of possible scenarios; here are some common ones:
o For a stereo source and two speaker channels, select Stereo Speaker System. Do the same if you
want to generate a subwoofer drive signal from the left and right input channels.
o For a "straight through" multichannel configuration, use Custom System and set Number of
Channels to the number of input channels. For example:
▪
Use 4 for a four-channel source and four speakers, or for a four-channel source with 4
speakers and a subwoofer.
▪
Use 5 for a 4.1 source and 4 speakers plus a sub.
o For a 5.1 source that applies the "10 dB LFE gain," use 5.1 Speaker System.
Test signal playback device
Preset to C-DSP 8x12 DL. This will ensure that test signals are sent into your audio system via the C-DSP
8x12 DL processor.
If the entry for C-DSP 8x12 DL is not showing, check that your C-DSP 8x12 DL processor is connected
via USB and powered on, click the Rescan button, and then use the drop-down menu to select C-DSP
8x12 DL.
Once you have verified that this tab is correct, click the Proceed button.
