PRELIMINARY
4.3 G
LOBAL CONTROLS

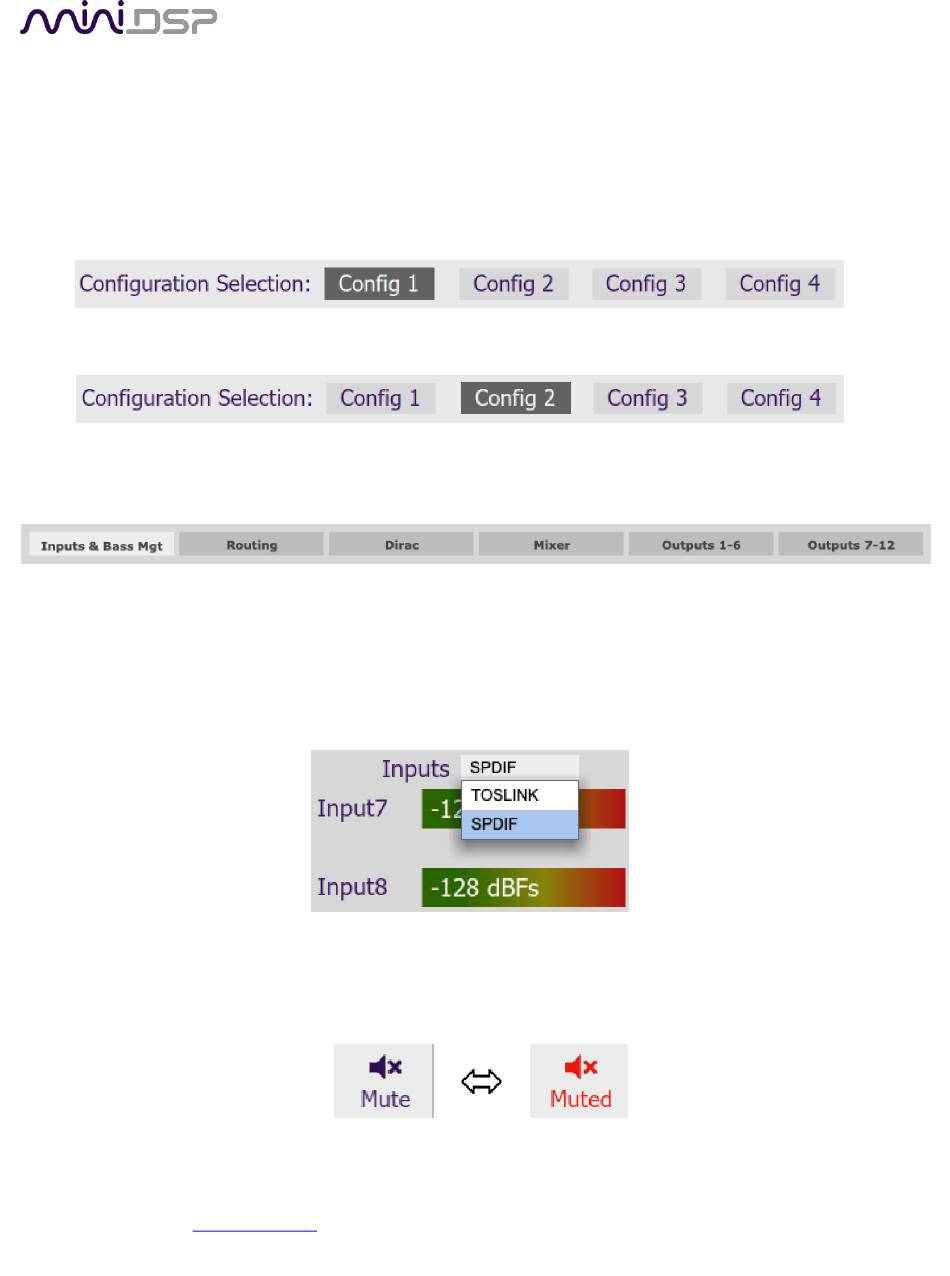

4.3.1 Configuration/preset selection

The set of data that controls the back-end processing is called a configuration. This includes crossovers,
parametric EQ and the routing matrix. It does not include the master volume or mute status.
Four configurations are stored onboard. The currently selected preset is indicated by a dark background:
To switch to a different preset, just click on the desired button:

4.3.2 Tab selection

For the selected configuration, this row of tabs selects the parameters to be display in the main display area.

4.3.3 Digital input selection

When the plugin is connected to the C-DSP 8x12 DL, the currently select digital input appears on the Inputs &
Bass Mgt tab, just above the level meters for channels 7 and 8. Click on it to pop up the selection menu and
select the desired input.

4.3.4 Master mute

The Mute button disables all audio output:
23
