PRELIMINARY
3.5 W
IRED REMOTE

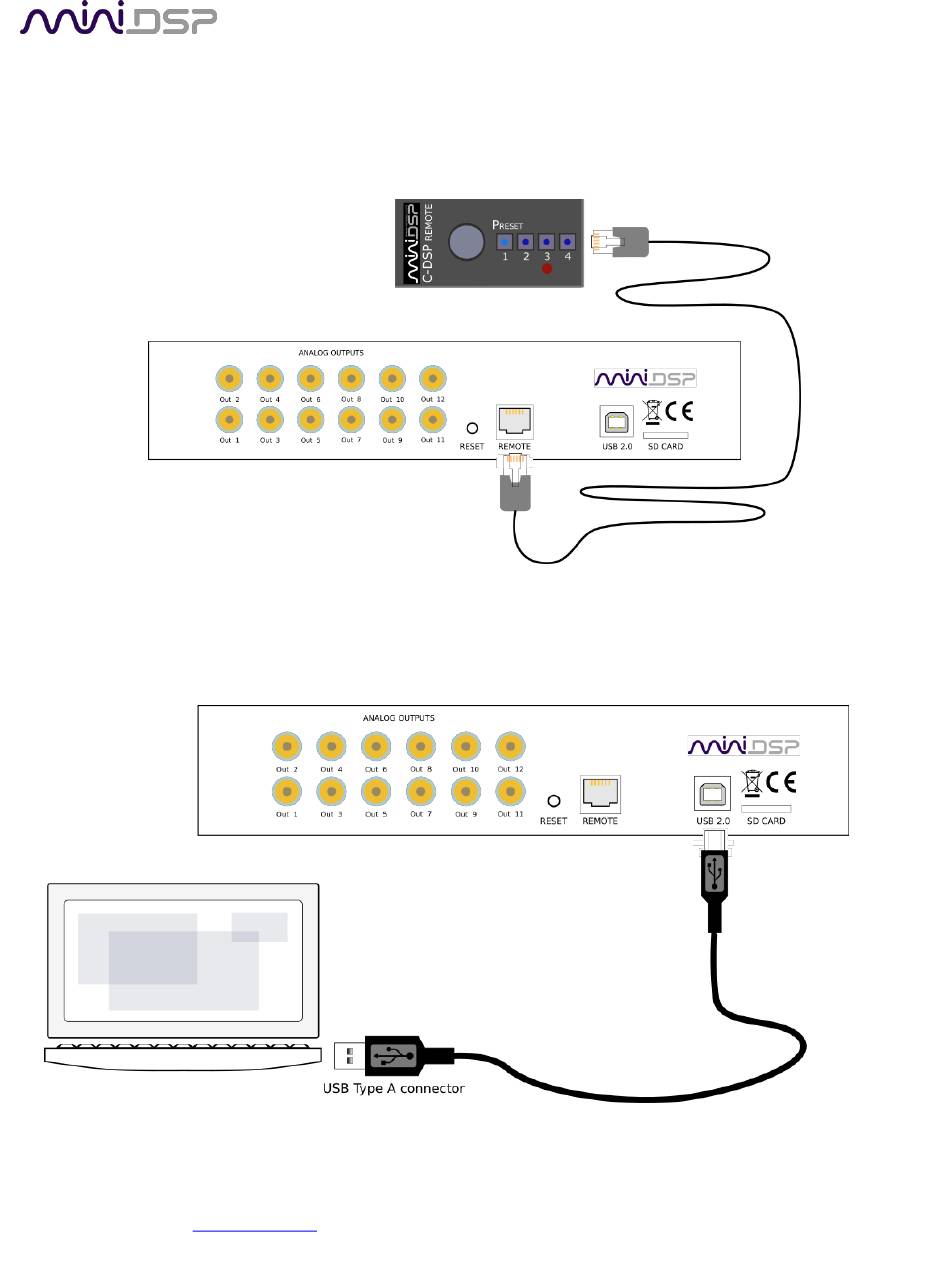

The wired remote can be positioned anywhere in the vehicle and is connected via the supplied RJ11 phone
cable. The plugs on each end simply plug into the base of the remote and into the rear panel of the C-DSP 8x12
DL. The wired remote also contains the receiver for infrared remote control.

3.6 USB

To configure the processor, connect its USB port to a USB 2.0 port on your computer using the supplied cable.
Note that USB is used only for configuration — audio data cannot be streamed to the processor over USB.
Configurations can also be loaded from a micro SD card – see page 68.
20
