miniDSP C-DSP 8X12 DL User Manual page 47

PRELIMINARY

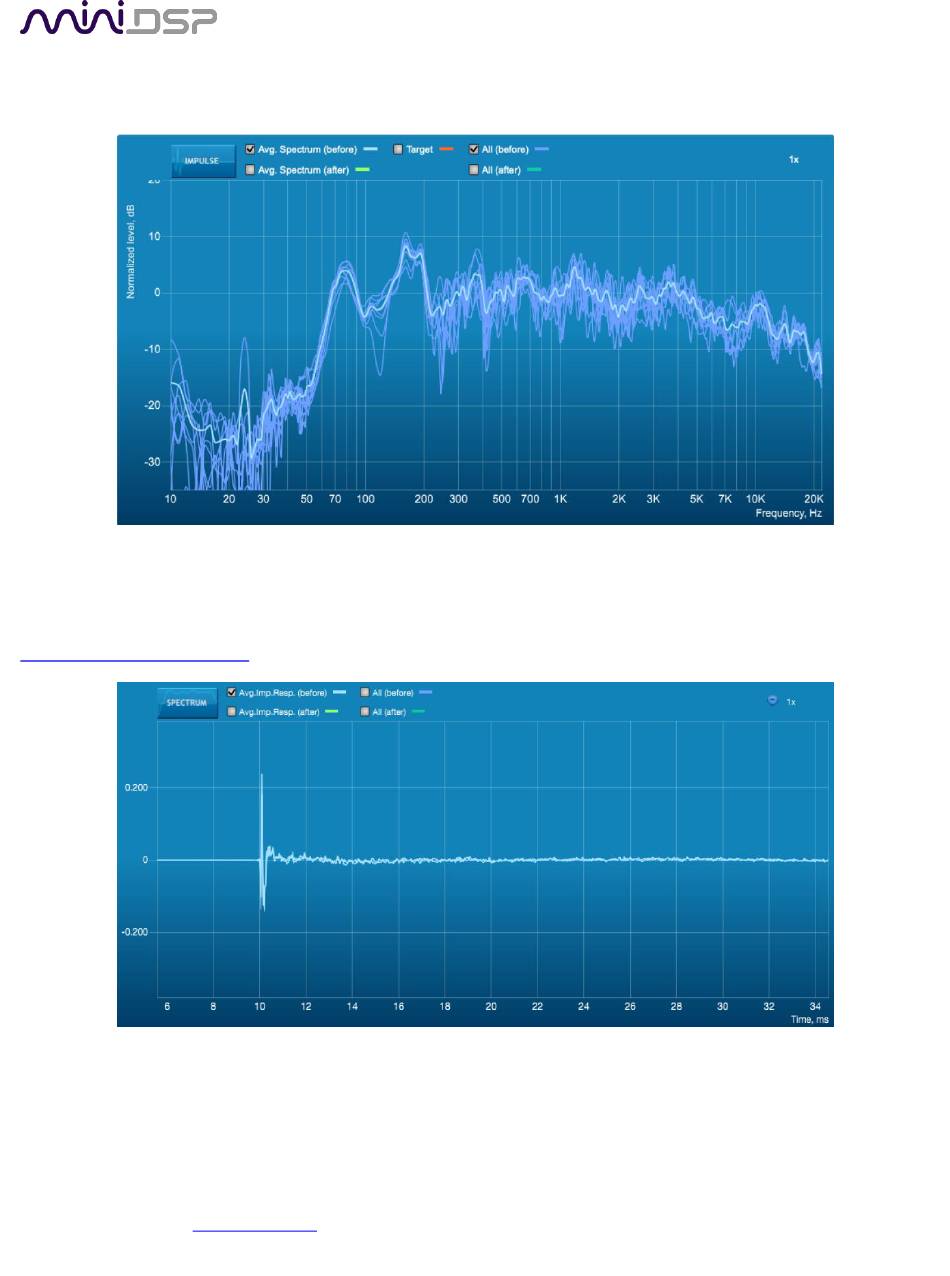

The graphs showing all nine measurements are useful for seeing how much variation there is across the listening
area:
To display the impulse response instead of the magnitude response, click on the Impulse button at the top left
of the display. All nine individual impulse responses can be shown as well as the average response. The
predicted responses after correction can be viewed after filters are generated with the Optimize button (see
Generating correction filters on page 52).
To return to the magnitude response, click on the Spectrum button.
