Summary of Contents for miniDSP NANOAVR HD
-
Page 1: User Manual

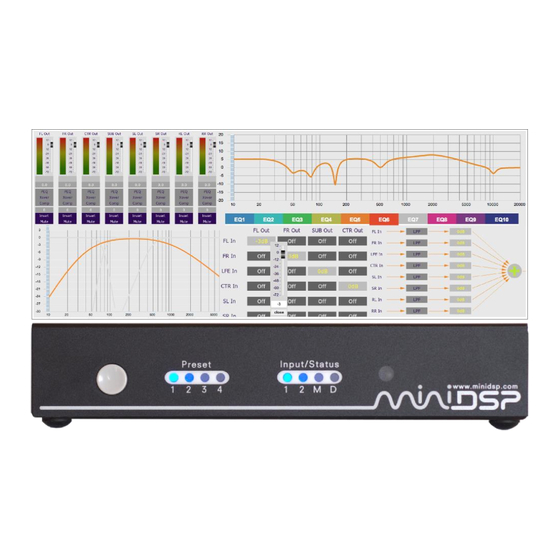

Home Theater Series AVR HD NANO AVR HDA NANO HDMI A RESOLUTION UDIO ROCESSOR User Manual miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... - Page 2 Update for Home Theater series 28 August 2014 Added nanoAVR HDA, HDMI 17 March 2015 channel mode, smartphone app miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 3: Table Of Contents
CE Mark Statement ............................7 What's included ............................... 7 A Note on this Manual ............................. 7 Product Overview ............................9 Typical usage – nanoAVR HD ........................ 9 Typical usage – nanoAVR HDA ......................10 Installation and setup ..........................11 Hardware connectivity ........................11 2.1.1... - Page 4 5.3.2 Automated method ........................39 Additional information ..........................40 Specifications ............................. 40 Troubleshooting ..........................41 MCU Firmware upgrade ........................42 Obtaining Support ..........................42 miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 5: Important Information
MPORTANT NFORMATION Please read the following information before use. In case of any questions, please contact miniDSP via the support portal at minidsp.desk.com. YSTEM EQUIREMENTS To configure the nanoAVR, you will require a Windows PC or Apple Mac OS X computer with the following... -
Page 6: Disclaimer/Warning
ISCLAIMER ARNING miniDSP cannot be held responsible for any damage that may result from the improper use of this product or incorrect configuration of its settings. As with any other product, we recommend that you carefully read this manual and other technical notes to ensure that you fully understand how to operate this product. The nanoAVR is a powerful tool, and misuse or misconfiguration, such as incorrectly set gains or excessive boost, can produce signals that may damage your audio system. -
Page 7: Ce Mark Statement
CE M TATEMENT The nanoAVR HD/HDA has passed the test performed according to European Standard EN 55022 Class B. S INCLUDED Your nanoAVR package contains: One nanoAVR HD or nanoAVR HDA HDMI audio processor ... - Page 8 Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 9: Product Overview
YPICAL USAGE NANO In its most typical application, the nanoAVR HD connects between an HDMI source such as a Blu-ray player and an A/V receiver, providing an unmatched level of audio tuning flexibility for home theater applications. The second HDMI input allows connection of a second device such as a media streamer or computer/HTPC. -
Page 10: Typical Usage - Nanoavr Hda
In this case, volume control is done digitally in the nanoAVR HDA itself, using a remote control or the miniDSP smartphone app. The analog outputs of the nanoAVR HDA can also be connected to multichannel analog inputs of an A/V receiver, A/V preamp, or any other component with multichannel analog inputs. -
Page 11: Installation And Setup
Use an A/V receiver or preamp with 96 kHz support to decode HDMI audio. † Apple Macs with a Thunderbolt port can be connected to the nanoAVR with the use of a Thunderbolt to HDMI adapter cable. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 12: Analog Outputs (Nanoavr Hda Only)
Note that HDMI audio and the analog outputs are simultaneously active. Always be sure to turn off all equipment before connecting or disconnecting audio signal cables. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 13: Dc Power
To configure the nanoAVR via USB, connect the USB port of the nanoAVR to a USB 2.0 port on your computer using the supplied cable. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 14: Ethernet
(link-local) addresses will be assigned. For this to work correctly, your PC must be set to allow automatic IP addresses (that is, it must not be set to a static IP address). miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 15: Software Installation
User Downloads section of the miniDSP website. This link is visible when you have logged into the site with the account you created when purchasing. Navigate to the nanoAVR section of User Downloads, and download the nanoAVR HD plugin. Double-click on it to unzip it. -
Page 16: Mac Os X
If you haven’t updated these recently, you should download and install the latest versions prior to running the miniDSP install program. To install the miniDSP software, open the Mac folder of the download, and double-click on the nanoAVR_BM.dmg file to open it in a new window. Then double-click on the installer program, Install nanoAVR_BM.app. -
Page 17: Configuring The Nanoavr
This screenshot shows the nanoAVR_BM plugin with the key areas highlighted: Note: during initial configuration of the nanoAVR, it is recommended that the connected HDMI output device be muted. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 18: Connecting To The Nanoavr
It is recommended that the first time you connect, use Restore Config to ensure a known starting state. Thereafter, use Synchronize Config. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 19: Global Settings
A drop-down menu allows either HDMI 1 or HDMI 2 to be selected as the input source: The Mute button disables all audio output: The Channel Mode selector controls how the nanoAVR outputs audio over HDMI. See Channel mode below. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 20: Configure Signal Routing
-6 dB: Note: To rename an input channel, click on its label and type in a new name (maximum of eight characters). miniDSP Ltd, Hong Kong / www.minidsp.com... -
Page 21: Output Channel Setup
The meters can also be used during normal operation to monitor for or to help locate level or gain structure problems. miniDSP Ltd, Hong Kong / www.minidsp.com... -
Page 22: Parametric Eq
For the PEAK and SUB_EQ filter types, this is the gain in dB at the center frequency. For the HIGH_SHELF and LOW_SHELF filter types, this is the gain in dB reached at high or low frequencies respectively. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... - Page 23 Other filter types can be created by switching to Advanced mode. In this mode, the coefficients of each filter “biquad“ are entered individually. The coefficients will need to be calculated by a filter design program. A useful spreadsheet for a number of filter types is available on the miniDSP.com website – see the application note Advanced Biquad Programming.
-
Page 24: Crossover Settings
Available in 12, 24, and 48 dB/octave, Linkwitz-Riley crossover filters are 6 dB down at the cutoff frequency. Bessel Available in 12 dB/octave only, a Bessel filter gives a more gradual roll off through the crossover region. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... - Page 25 For other types of filter and filter slopes, use Advanced mode. This mode allows you to enter the coefficients of eight biquads directly into the interface. The coefficients will need to be calculated by a filter design program. A useful spreadsheet for a number of filter types is available on the miniDSP.com website – see the application note Advanced Biquad programming.
-
Page 26: Compressor
The delay value can be entered numerically, and the up and down arrows can be used to change the delay in small (0.02 ms) increments. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 27: Invert And Mute
Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... - Page 28 Then click Close. To turn off low frequency mixing for a channel, simply click on the gain control box to set it to Off. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 29: Channel Mode
The number of audio channels that the nanoAVR signals on its HDMI output to the downstream HDMI device is selected by the Channel Mode dropdown selector: miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 30: Working With Configurations
Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 31: Saving And Loading Configurations
Tip: To copy a configuration from one preset to another, simply save the configuration to a file, then select a different preset and load the file. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 32: Restoring To Defaults
Crossover frequency and filter type PEQ filter frequency, gain, and Q Space The Space bar toggles buttons that have two states, such as Bypass, Invert, and Mute. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 33: Using The Nanoavr
SING THE NANO Once configured, the computer is not required to operate the nanoAVR. The front panel, an infrared remote, or the miniDSP smartphone app can be used to control: Preset selection HDMI input selection Master volume (remote control and smartphone app only) ... -
Page 34: Infrared Remote Control
This can be used instead of Config 1, Config 2 and so on. Once programmed, check that the programmed buttons perform the expected function. Note: changing the selected configuration preset with the remote will cause the user interface to disconnect. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 35: Smartphone Control App
MARTPHONE CONTROL APP † The nanoAVR HD and nanoAVR HDA can be controlled with the miniDSP control app for Android and iOS smartphones and tablets. To control the nanoAVR over the network, connect an Ethernet from the nanoAVR's Ethernet port to a free port on your Ethernet router or switch. -
Page 36: Acoustic Measurement
In the graph, the blue line shows the measured frequency response after correction with the parametric equalizer (PEQ) on the subwoofer channel. Figure 1. Sample bass frequency response measurement, before and after applying PEQ miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 37: Performing Acoustic Measurements
To perform an acoustic measurement, connect a computer with HDMI or Thunderbolt output to one of the inputs of the nanoAVR and select that input. The miniDSP UMIK-1 measurement microphone (or other measurement hardware) can be connected to a USB input on the computer. -
Page 38: Adjusting Equalizer Settings
3 to 6 dB. Or, if less high treble emphasis is desired, this can be accomplished with a gentle high-shelf filter with a few dB cut at high frequencies. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 39: Automated Method
Equalizing your home theater system with the nanoAVR and UMIK-1 Bass management with the nanoAVR miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 40: Additional Information
Controls master volume, mute, HDMI input selection, preset selection Power supply 5 VDC single supply @ 600mA, 2.1 mm center-positive Dimensions (H x W x D) 31 x 161 x 110 mm (nanoAVR HD) 47 x 161 x 110 mm (nanoAVR HDA) miniDSP Ltd, Hong Kong / www.minidsp.com... -
Page 41: Troubleshooting
Check that individual channels are not muted. Check that Master Volume is not at a low level. Double-check the routing screen to ensure that inputs are correctly routed to outputs. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 42: Mcu Firmware Upgrade
Note that the firmware upgrade tool is, as of publication of this User Manual, available on Windows only. 6.4 O BTAINING UPPORT 1. Check the forums on miniDSP.com to see if this issue has already been raised and a solution or solutions provided. 2. Contact miniDSP via the support portal at minidsp.desk.com with: a.
