PRELIMINARY
3.2 D
IGITAL INPUT

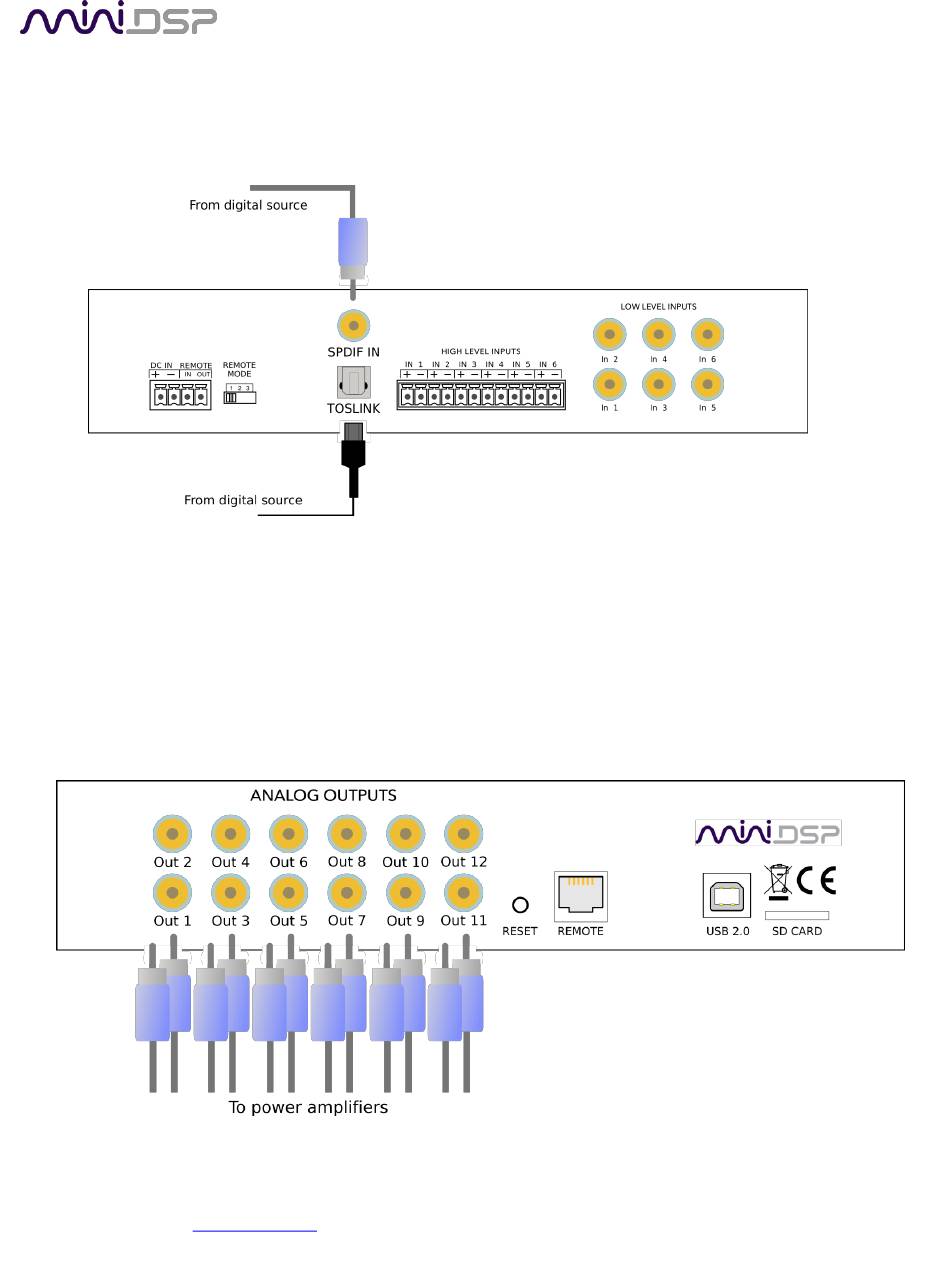

Two digital sources can be connected via the S/PDIF coax (RCA) connector and the TOSLINK (optical) connector.
Switching between sources can be done from within the plugin or with an infrared remote control.
Note: the digital inputs accept only a stereo PCM digital signal. They do not accept encoded or multichannel
digital audio.
3.3 A
NALOG OUTPUTS
There are twelve analog output channels. Unbalanced connections are made from the RCA jacks on the rear
panel to the power amplifiers. Be sure to take careful note of the channel numbering shown in this diagram and
on the rear panel.
18
