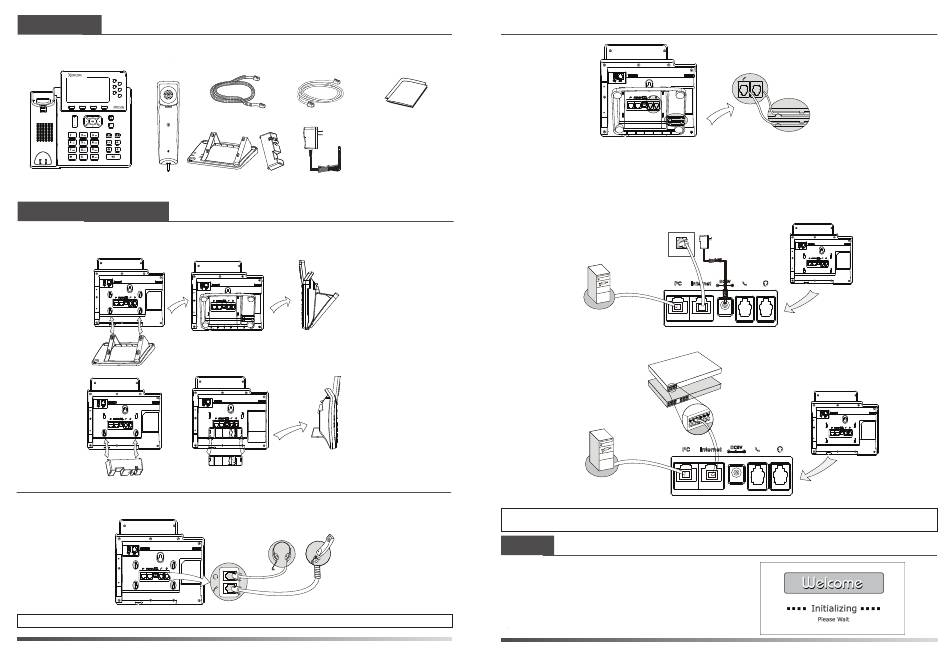

Packing List

The following items are included in your package. If you find anything missing, contact your
system administrator.
IP Phone Handset

Assembling the Phone

1. Attach the stand, as shown below:
2. Connect the handset and optional headset, as shown below:
Note: The headset should be purchased separately.
XP0150G Quick Installation Guide
Ethernet Cable Quick Installation
Handset Cord
Guide & Quick
Reference Guide
Stand Power Adapter
(Optional)
(Optional
Deskmount Method
Wallmount Method
3. Connect the network and power, as shown below:
You have two options for network and power connections. Your system administrator will advise
you on which one to use.
a. AC Power Option
PC Connection
(Optional)
Internet
b. PoE (Power over Ethernet) Option
PC Connection
(Optional)
Note: If inline power (PoE) is provided, you don't need to connect the power adapter. Make sure the Ethernet
cable and hub/switch are PoE compliant.

Startup

After the IP phone has been connected to the
network and supplied with power, it automatically
begins a process of initializing itself on the network.
After that, you can begin to configure the phone via
Web user interface or phone user interfafce.
Power Adapter
(DC 5V)
IEEE 802.3af compliant
PoE Hub/Switch
