Installation, Operating and Servicing
Instructions

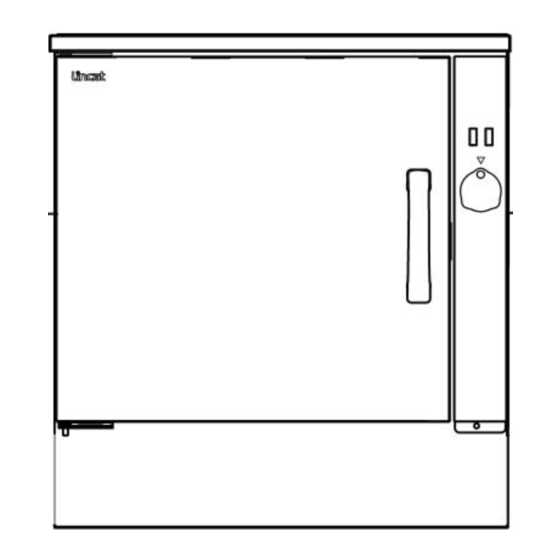

Silverlink 600 Electric Ovens
V6, V6/F, V6/D, V6/FD, V7, V7/4
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 218 ECN 4897
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lincat V6/F
Summary of Contents for Lincat V6/F
- Page 1 Installation, Operating and Servicing Instructions Silverlink 600 Electric Ovens V6, V6/F, V6/D, V6/FD, V7, V7/4 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 218 ECN 4897 Page 1 of 8...
- Page 2 WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.
- Page 3 During operation parts may become hot - avoid accidental contact. Disconnect this appliance before servicing, maintenance or cleaning. TECHNICAL DATA Model Height (mm) Width (mm) Depth (mm) Weight (kg) 46.0 V6/F V6/D 650-670 47.0 V6/FD 53.0 V7/4 CHECK LIST OF ENCLOSURES Warranty card...
- Page 4 If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of this appliance. The fixed wiring insulation must be protected by insulated sleeving having a temperature rating of at least 60 Deg C.
- Page 5 OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. Connect the appliance to the supply. For V6 and V6/F the green neon will illuminate. For other models, turn on at the green switch, which will illuminate. Set the oven temperature using the thermostat control knob – the amber neon will illuminate.
- Page 6 V6, V6/F, V6/D, V6/FD, V7 RE28 Relay V6/F, V6/FD, V7, V7/4 SE22 Side door seal SE22 Top and bottom door seal V6, V6/F, V6/D, V6/FD SE44 Top and bottom door seal V7, V7/4 SH03 Shelf V6, V6/F, V6/D, V6/FD SH63...
- Page 7 All available on serial plate Type number Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
- Page 8 IS 218 ECN 4897 Page 8 of 8...
