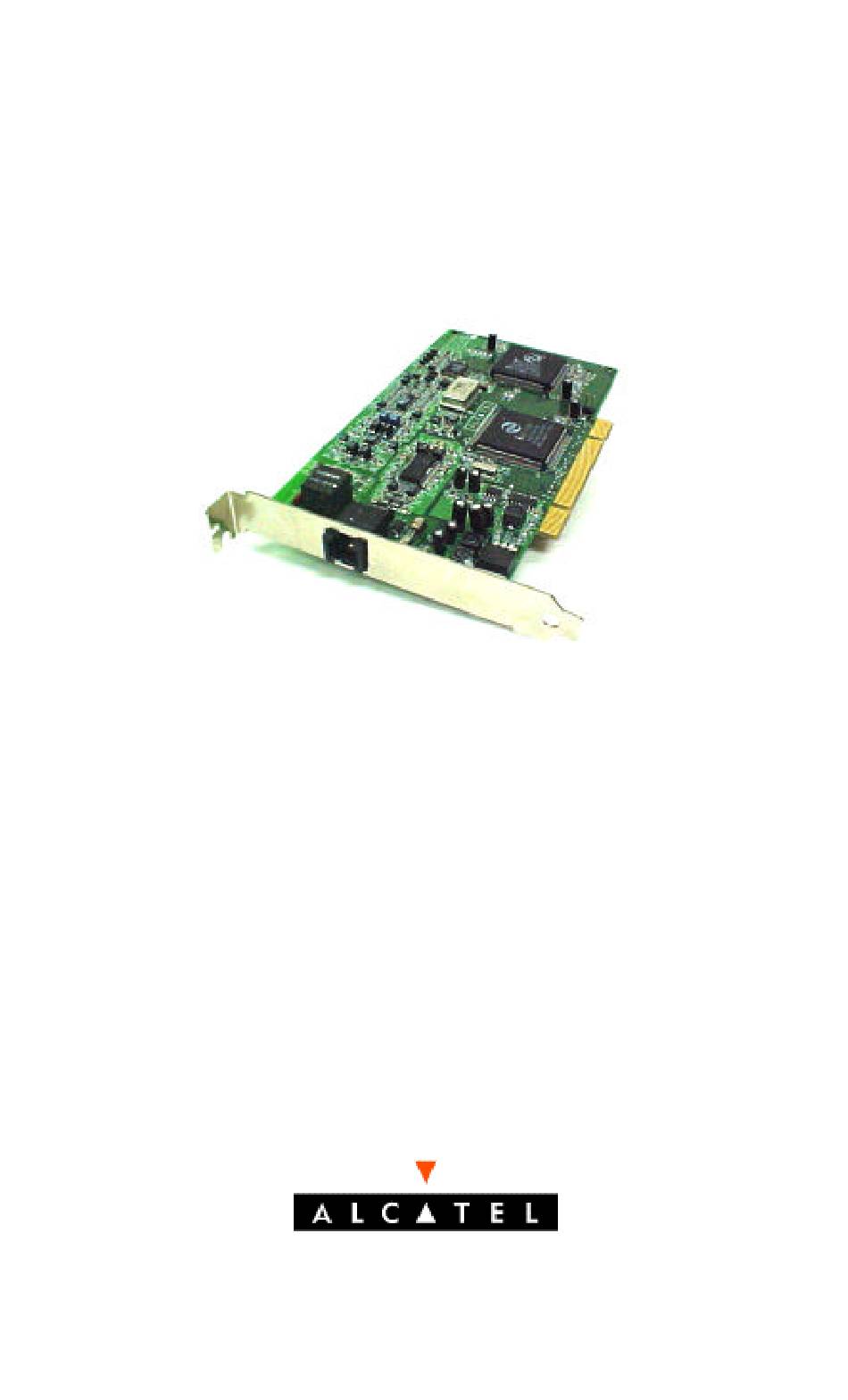

- Page 1 SPEED TOUCH PC ADSL Modem Card Installation Guide V2.1.4 47-060015-001 www.alcateldsl.com...
-
Page 3: Table Of Contents
Table of Contents Congratulations!........................1 Step 1 – Know your PC’s Operating System...............1 Step 2 – Determine your Connection Settings ............2 Step 3 – Install the ADSL Modem Card...............3 Step 4 – Install the Drivers and Make a Connection ..........5 Windows 95A ........................6 Windows 95B........................9 Windows 98, 98SE......................12 Windows Millennium.....................14... -
Page 5: Congratulations
RJ-11 jack is configured so that the center two pins, pins 2 and 3, are used for ADSL data. If the ADSL data port installation uses pins 1 and 4 for data, then a wiring converter Alcatel Speed Touch PC... - Page 6 Do not alter or remove a wiring converter if present. Consult with your provider regarding a wiring converter or before attempting any wiring changes. Alcatel Speed Touch PC...
-
Page 7: Step 2 - Determine Your Connection Settings
VCI value:_________ Framing: VC/MUX LLC/SNAP Mode: ANSI T1.413 ITU G.lite ITU G.dmt 1483 2364 For RFC For RFC Host: User Name: Domain: Password: Gateway: Host or IP Address: IP Address: Subnet Mask: DNS or server address: Alcatel Speed Touch PC... -
Page 8: Step 3 - Install The Adsl Modem Card
Unplug the power cord for your computer from the electrical outlet. Remove the cover from your systems chassis (see your PC manufacturer’s manual). Unscrew “metal slot cover bracket” from an unused PC motherboard PCI connector (usually white in color). Alcatel Speed Touch PC... - Page 9 Replace the cover of your computer system and Connect the ADSL/phone line to the connector port on the modem card. Then plug the other end of the cable into your ADSL/phone service. Alcatel Speed Touch PC...
-
Page 10: Step 4 - Install The Drivers And Make A Connection
Windows 95A -------------------------------------------------------------------------------Page 6 Windows 95B -------------------------------------------------------------------------------Page 9 Windows 98, 98SE------------------------------------------------------------------------- Page 12 Windows Millennium----------------------------------------------------------------------Page Windows 2000 ------------------------------------------------------------------------------Page 20 Windows NT - RFC 1483 ----------------------------------------------------------------Page 26 Windows NT - RFC 2364-----------------------------------------------------------------Page 28 Alcatel Speed Touch PC... -
Page 11: Windows 95A
Microsoft Dial-Up Networking 1.3 for Windows 95. Do you wish to continue? Click Yes. An End-User License Agreement will appear. To accept, click Yes. Back in the Microsoft Dial-Up Networking 1.3 window. You will be Alcatel Speed Touch PC... - Page 12 Do you want to restart your computer now? Click Yes. Alcatel Speed Touch PC...
- Page 13 Windows 95 CD. Insert the Windows 95 CD into the CD drive and click OK. NOTE: If during the file copying process a file is reported as “not found” enter the path with the CD Drive letter and :\Win95 (ex:D:\Win95). Alcatel Speed Touch PC...
- Page 14 Finish. The System Settings Change window appears. For the PC system to set up the Alcatel Speed Touch PC, a system Restart is required. Click Yes. NOTE: After restarting the system, the Diagnostic Tool icon (See Appendix) is active and monitoring connectivity.
-
Page 15: Windows 95B
This will install Microsoft Dial -Up Networking 1.3 for Windows 95. Do you wish to continue? Click Yes. An End-User License Agreement will appear. To accept, click Yes. Back in the Microsoft Dial-Up Networking 1.3 window. You will be Alcatel Speed Touch PC... - Page 16 Do you want to restart your computer now? Click Yes. Alcatel Speed Touch PC...
- Page 17 CD-ROM drive letter. Your drive may have a different letter.) Then click OK. 11. The Update Device Driver Wizard will then find the Alcatel Speed Touch PC. Click Finish. NOTE: During the installation process you may be asked to insert your Windows 95 CD-ROM.
- Page 18 Finish. The System Settings Change window appears. For the PC system to set up the Alcatel Speed Touch PC, a system Restart is required. Click Yes. NOTE: After restarting the system, the Diagnostic Tool icon (See Appendix) is active and monitoring connectivity.
-
Page 19: Windows 98, 98Se
CD-ROM for the protocol supported by your ADSL provider: 1483w98 2364w98. Click Next. The Add New Hardware Wizard will appear and indicate the Alcatel Speed Touch PC has been recognized and will install a new driver. Click Next. Alcatel Speed Touch PC... - Page 20 Add New Hardware Wizard window appears and displays your newly installed Alcatel Speed Touch PC software. Click Finish The System Settings Change window appears. For the PC system to set up the Alcatel Speed Touch PC, a system Restart is required.
-
Page 21: Windows Millennium
CD-ROM drive letter. Drive letters may vary.) Then click Next. The Add New Hardware Wizard window now displays your newly installed Alcatel Speed Touch PC. Click Next. The Add New Hardware Wizard has now finished installing the new hardware device. - Page 22 ADSL configuration. Go to page 15. Alcatel Speed Touch PC...
-
Page 23: Setting The Adsl Configuration
You must now make an ADSL connection. Proceed to the section for ð RFC1483 Bridged Ethernet over ATM Go to page 16 ð RFC2364 Point-to-Point Protocol over ATM Go to page 19 Alcatel Speed Touch PC... - Page 24 The Network window appears. Select the Configuration tab, scroll the installed network component window and find Alcatel Speed Scroll the installed network component window and select TCP/IP àAlcatel Speed Touch PC. Then click the Properties button. Alcatel Speed Touch PC...
- Page 25 Specify an IP Address option. Enter the IP Address and Subnet Mask settings supplied by your ADSL provider. To setup a new gateway, select the Gateway tab, and then enter the setting in the New Gateway section. Click Add. Alcatel Speed Touch PC...
- Page 26 10. The Network window appears. Click 11. After setting all the necessary TCP/IP properties, click OK. 12. The System Setting Change window appears. You will be asked if you want Congratulations, you are done. Your ADSL Internet connection is established! Alcatel Speed Touch PC...
- Page 27 The Connection Established window appears. Internet service is now established. Click Close and then the Diagnostic tool icon will appear on the task bar. Congratulations, you are done. Your ADSL Internet connection is established! Alcatel Speed Touch PC...
-
Page 28: Windows 2000
Insert the ADSL Driver CD into the systems CD-ROM drive. Click Browse to locate the driver on your CD-ROM for the protocol supported by your ADSL provider: 1483w2K or 2364w2K. (The example uses “D” as the CD-ROM Alcatel Speed Touch PC... - Page 29 Your drive may have a different letter.) Click OK. Alcatel Speed Touch PC...
- Page 30 The Found New Hardware Wizard will then find the Alcatel Speed Touch PC, click Next. The Digital Signature Not Found window appears. You will be asked; Do you want to continue installation? Click Yes. The Found New Hardware Wizard will prompt that Windows has finished installing the software for this device.
-
Page 31: Setting The Adsl Configuration
You must now make an ADSL connection. Proceed to the section for ð RFC1483 Bridged Ethernet over ATM Go to page 23 ð RFC2364 Point-to-Point Protocol over ATM Go to page 25 Alcatel Speed Touch PC... - Page 32 General tab, enable Use the following IP address. The default settings for IP configurations will turn from gray to clear. Enter in the IP address, Subnet Mask, and Default Gateway supplied by your ADSL service provider. Click Alcatel Speed Touch PC...
- Page 33 The previous General Tab window appears. Click OK. The Network and Dial-up Connection window appears. CLOSE this window and your connection is complete. Congratulations, you are done. Your ADSL Internet connection is established! Alcatel Speed Touch PC...
- Page 34 User Name and Password supplied by your ADSL service provider. You are now ready to make a network connection. Click Dial. The Connection complete window appears, click OK. Congratulations, you are done. Your ADSL connection is established! Alcatel Speed Touch PC...
-
Page 35: Windows Nt4.0 - Rfc 1483
ROM for the protocol supported by your ADSL provider: 1483NT4 (The example uses “d” as the CD-ROM drive letter. Your drive may have a different letter.) Click OK. The Select OEM Option window will find Alcatel Speed Touch PC, Click Alcatel Speed Touch PC... - Page 36 The Network window will appear. Click the Adapters tab to verify that Alcatel Speed Touch PC has been found. Click on the Protocols tab and verify that ADSL Management and Monitor Interface is present. When you have verified these items, click Close.
- Page 37 Congratulations, you are done. Your ADSL connection is established! Alcatel Speed Touch PC...
- Page 38 ROM for the protocol supported by your ADSL provider: 2364NT4 (The example uses “d” as the CD-ROM drive letter. Your drive may have a different letter.) The Select OEM Option window will find Alcatel Speed Touch PC, Click OK. Alcatel Speed Touch PC...
- Page 39 The Remote Access Setup window appears. Click Continue. 11. The Network window will appear. Click the Adapters tab to verify that Alcatel Speed Touch PC has been found. Click on the Protocols tab and verify that the ADSL Management and Monitor Interface is present.
- Page 40 12. The Network Settings Change window appears. You must now re- start your computer for the settings to take effect. Click Yes. 13. You must now create a Dial-up Network Connection. Go to page 31. Alcatel Speed Touch PC...
- Page 41 Password are entered and try the connection again. Also verify that the connection address is correct. The Connection Complete window is displayed at the completion of a successful Dial-Up logon. Choose a display behavior and click OK to close. Alcatel Speed Touch PC...
-
Page 42: Removing Drivers
Select Programs. The system window appears. Select the ITeX Tab, and then click on the Un-Installer Tab. Speed Touch PC NOTE: For W95-98-NT4, an Uninstall Finished windows message appears. Click Yes to restart your system and confirm changes. Alcatel Speed Touch PC... -
Page 43: Diagnostic Tools
Net Data Rates for upstream and downstream data. NOTE: ADSL protocols supported by the ADSL drivers are T1.413, G.dmt and G.lite. The protocol must be supported also by the ADSL equipment located at the central office. Alcatel Speed Touch PC... - Page 44 Diagnostic program. Product Information (e.g. driver revisions) is displayed by clicking the Product Info tab. Product Information lists the versions of the Diagnostic Tools and the driver version. The Alcatel Speed Touch PC...
-
Page 45: Trouble Shooting
5. If the modem successfully connected to the TelCO but repeatedly starts to reconnect in a very short time. • The ADSL line may be too close to outside “noise” (radio frequency) interference. • You may have a bad component – Return the PCB. Alcatel Speed Touch PC... -
Page 46: Connector Pin-Out
2 and 3 for data. If the ADSL data port installation uses pins 1 and 4 for data, then a wiring converter will be required. Do not alter or remove the wiring converter if present. Consult with your ADSL provider before attempting any wiring changes. Alcatel Speed Touch PC... -
Page 47: Copyright & Regulatory Information
Reorient or relocated the receiving antenna. ð Increase the separation between the equipment and receiver. ð Connect the equipment into a different outlet circuit from than the receiver. ð Consult an experienced radio/TV technician for help. Alcatel Speed Touch PC... - Page 48 ð Shielded cables must be used to comply with FCC regulations. Francis Wellensplein 1 • B-2018 Antwerpen Alcatel Speed Touch PC...
- Page 49 Tel. +32 3 240 40 11 • Fax +32 3 240 99 99 www.alcateldsl.com Alcatel Speed Touch PC...
