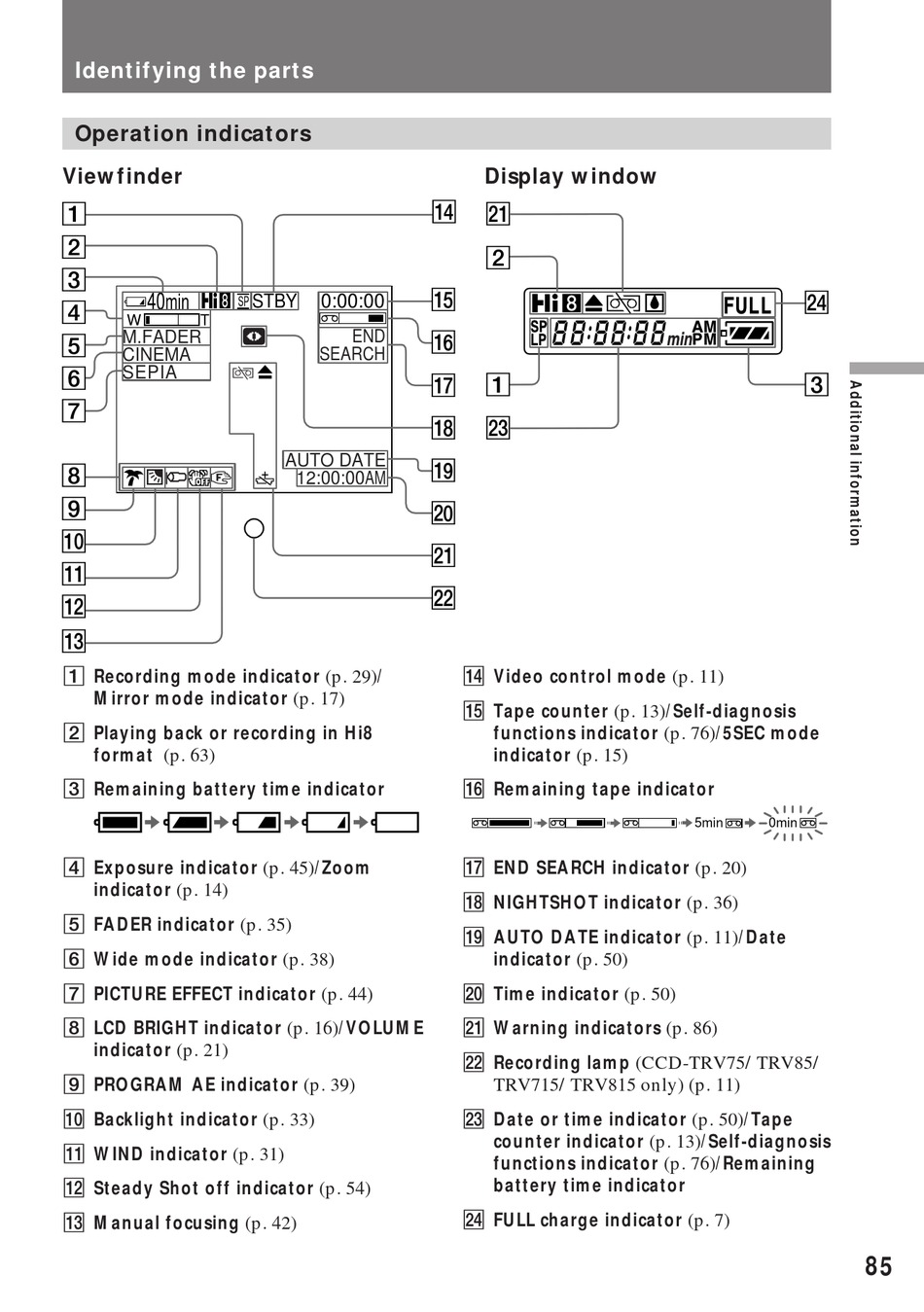

Identifying the parts
Operation indicators
Viewfinder
1
2
3
40
H
min
4
W T
M.FADER
5
CINEMA
6 SEPIA
7
8
c „
f
9
0
!¡
!™
!£
1 Recording mode indicator (p. 29)/
Mirror mode indicator (p. 17)
2 Playing back or recording in Hi8
format (p. 63)
3 Remaining battery time indicator
4 Exposure indicator (p. 45)/Zoom
indicator (p. 14)
5 FADER indicator (p. 35)
6 Wide mode indicator (p. 38)
7 PICTURE EFFECT indicator (p. 44)
8 LCD BRIGHT indicator (p. 16)/VOLUME
indicator (p. 21)
9 PROGRAM AE indicator (p. 39)
0 Backlight indicator (p. 33)
!¡ WIND indicator (p. 31)
!™ Steady Shot off indicator (p. 54)
!£ Manual focusing (p. 42)
STBY 0:00:00
SP
END
SEARCH
AUTO DATE
12:00:00AM
Display window
!¢
@¡
2
!∞
!§
1
!¶
!•
@£
!ª
@º
@¡
@™
!¢ Video control mode (p. 11)
!∞ Tape counter (p. 13)/Self-diagnosis
functions indicator (p. 76)/5SEC mode
indicator (p. 15)
!§ Remaining tape indicator
!¶ END SEARCH indicator (p. 20)
!• NIGHTSHOT indicator (p. 36)
!ª AUTO DATE indicator (p. 11)/Date
indicator (p. 50)
@º Time indicator (p. 50)
@¡ Warning indicators (p. 86)
@™ Recording lamp (CCD-TRV75/TRV85/
TRV715/TRV815 only) (p. 11)
@£ Date or time indicator (p. 50)/Tape
counter indicator (p. 13)/Self-diagnosis
functions indicator (p. 76)/Remaining
battery time indicator
@¢ FULL charge indicator (p. 7)
@¢
