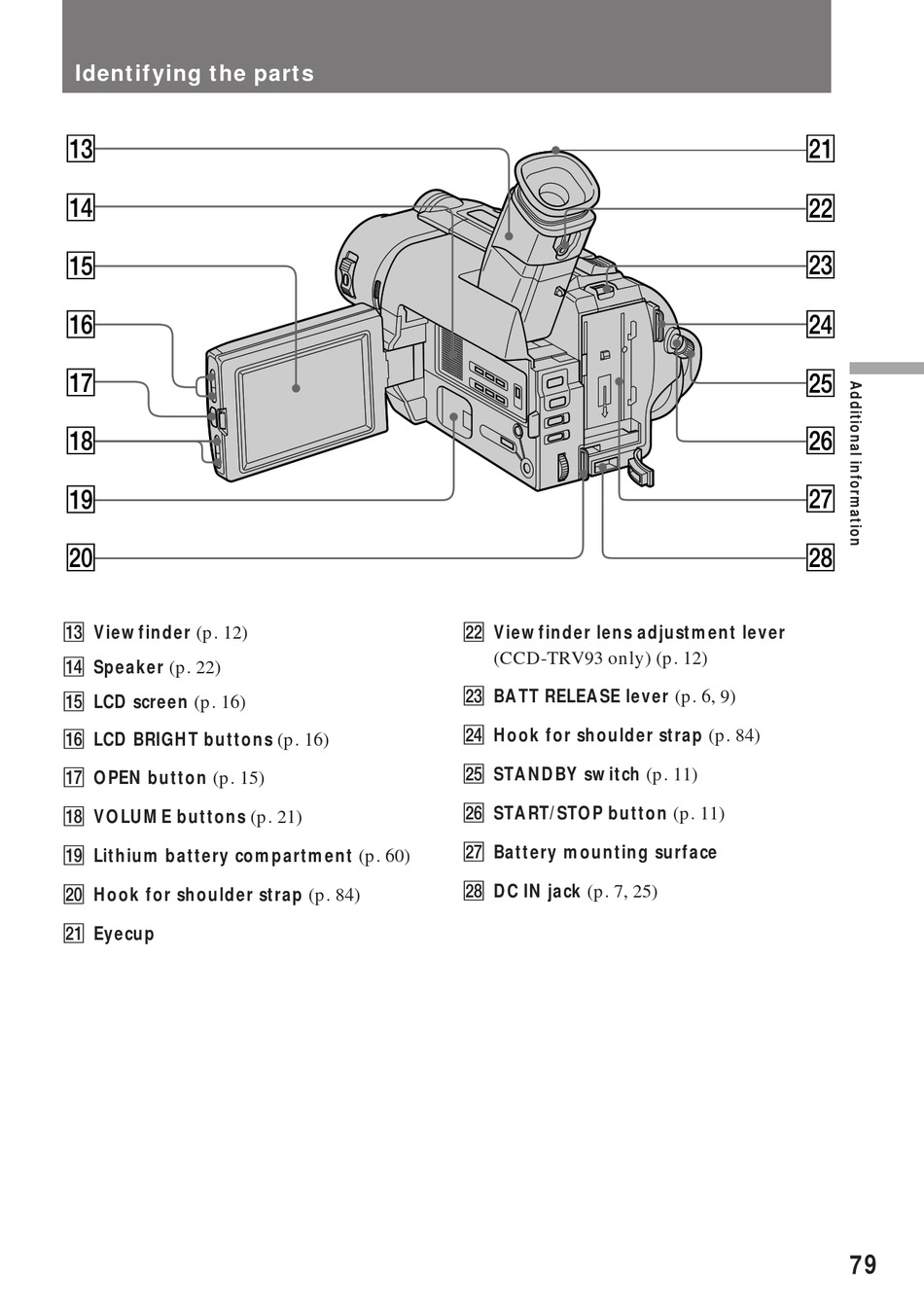

Identifying the parts
!£
!¢
!∞
!§
!¶
!•
!ª
@º
!£ Viewfinder (p. 12)
!¢ Speaker (p. 22)
!∞ LCD screen (p. 16)
!§ LCD BRIGHT buttons (p. 16)
!¶ OPEN button (p. 15)
!• VOLUME buttons (p. 21)
!ª Lithium battery compartment (p. 60)
@º Hook for shoulder strap (p. 84)
@¡ Eyecup
@™ Viewfinder lens adjustment lever
(CCD-TRV93 only) (p. 12)
@£ BATT RELEASE lever (p. 6, 9)
@¢ Hook for shoulder strap (p. 84)
@∞ STANDBY switch (p. 11)
@§ START/STOP button (p. 11)
@¶ Battery mounting surface
@• DC IN jack (p. 7, 25)
@¡
@™
@£
@¢
@∞
@§
@¶
@•
