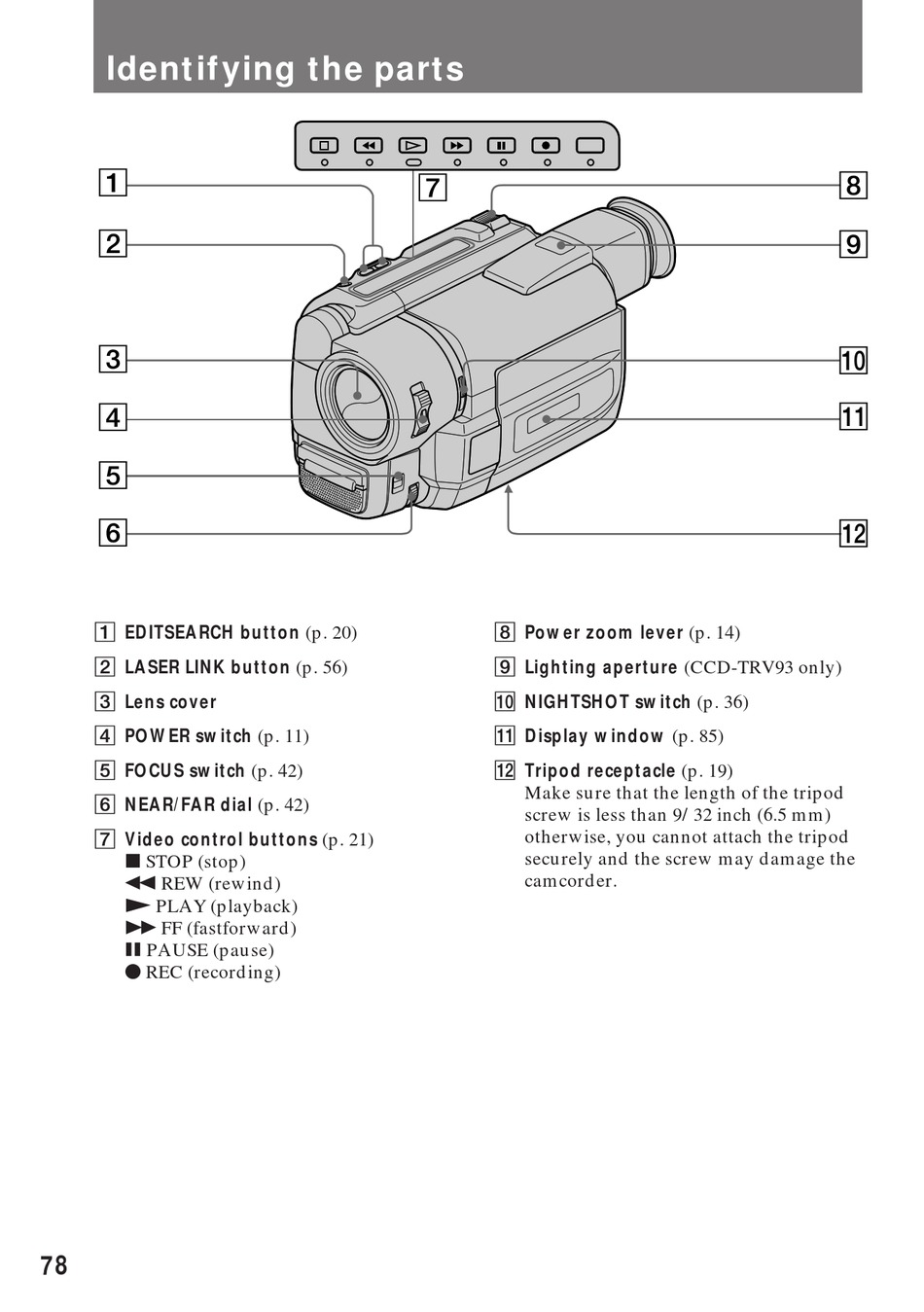

Identifying the parts

1
2
3
4
5
6
1 EDITSEARCH button (p. 20)
2 LASER LINK button (p. 56)
3 Lens cover
4 POWER switch (p. 11)
5 FOCUS switch (p. 42)
6 NEAR/FAR dial (p. 42)
7 Video control buttons (p. 21)
p STOP (stop)
0 REW (rewind)
( PLAY (playback)
) FF (fastforward)
P PAUSE (pause)
r REC (recording)
78
7
8 Power zoom lever (p. 14)
9 Lighting aperture (CCD-TRV93 only)
0 NIGHTSHOT switch (p. 36)
!¡ Display window (p. 85)
!™ Tripod receptacle (p. 19)
Make sure that the length of the tripod
screw is less than 9/32 inch (6.5 mm)
otherwise, you cannot attach the tripod
securely and the screw may damage the
camcorder.
8
9
0
!¡
!™
