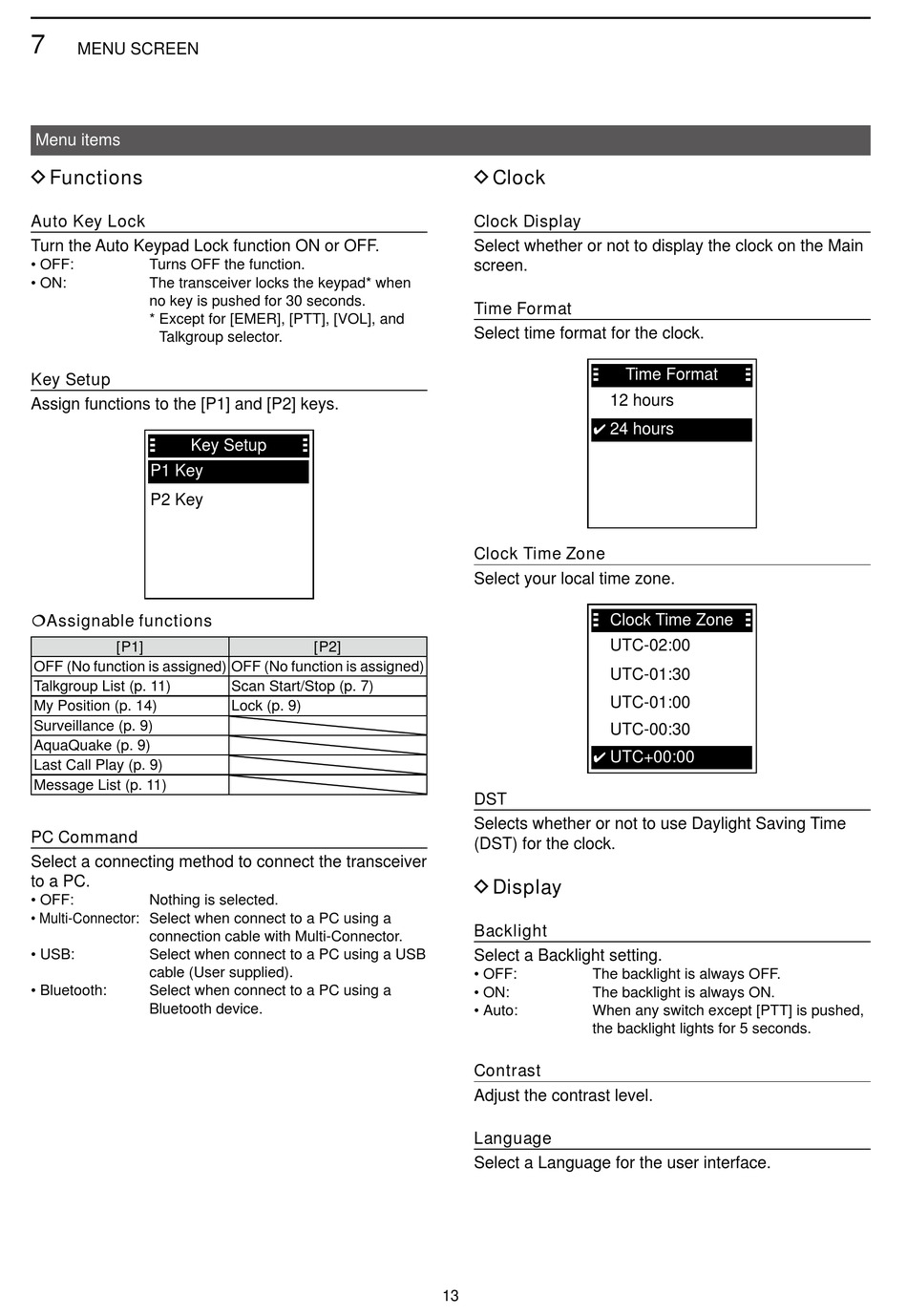

Icom IC-SAT100 Operating Manual page 15

7
MENU SCREEN
Menu items
D Functions
Auto Key Lock
Turn the Auto Keypad Lock function ON or OFF.
• OFF: Turns OFF the function.
• ON: The transceiver locks the keypad* when
no key is pushed for 30 seconds.
* Except for [EMER], [PTT], [VOL], and
Talkgroup selector.
Key Setup
Assign functions to the [P1] and [P2] keys.
Key Setup
P1 Key
P2 Key
✔
✔
✔
Assignable functions
[P1]
OFF (No function is assigned) OFF (No function is assigned)
Talkgroup List (p. 11)
My Position (p. 14)
Surveillance (p. 9)
AquaQuake (p. 9)
Last Call Play (p. 9)
Message List (p. 11)
PC Command
Select a connecting method to connect the transceiver
to a PC.
• OFF: Nothing is selected.
• Multi-Connector: Select when connect to a PC using a
connection cable with Multi-Connector.
• USB: Select when connect to a PC using a USB
cable (User supplied).
• Bluetooth: Select when connect to a PC using a
Bluetooth device.
[P2]
Scan Start/Stop (p. 7)
Lock (p. 9)
D Clock
Clock Display
Select whether or not to display the clock on the Main
screen.
Time Format
Select time format for the clock.
12 hours
✔
24 hours
✔
✔
✔
✔
Clock Time Zone
Select your local time zone.
Clock Time Zone
UTC-02:00
✔
UTC-01:30
✔
UTC-01:00
✔
UTC-00:30
✔
UTC+00:00
✔
DST
Selects whether or not to use Daylight Saving Time
(DST) for the clock.
D Display
Backlight
Select a Backlight setting.
• OFF: The backlight is always OFF.
• ON: The backlight is always ON.
• Auto: When any switch except [PTT] is pushed,
the backlight lights for 5 seconds.
Contrast
Adjust the contrast level.
Language
Select a Language for the user interface.
13
Time Format
