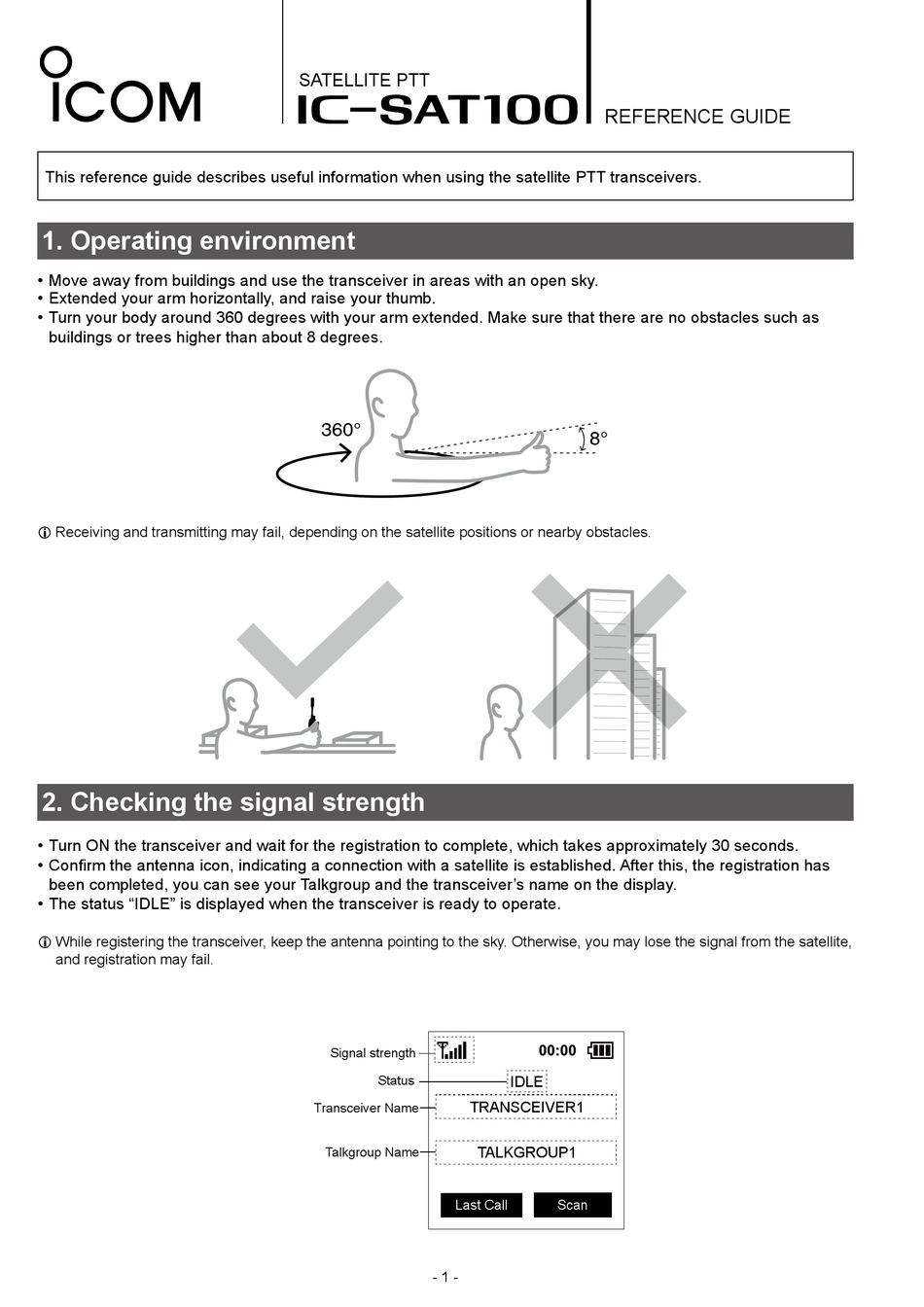

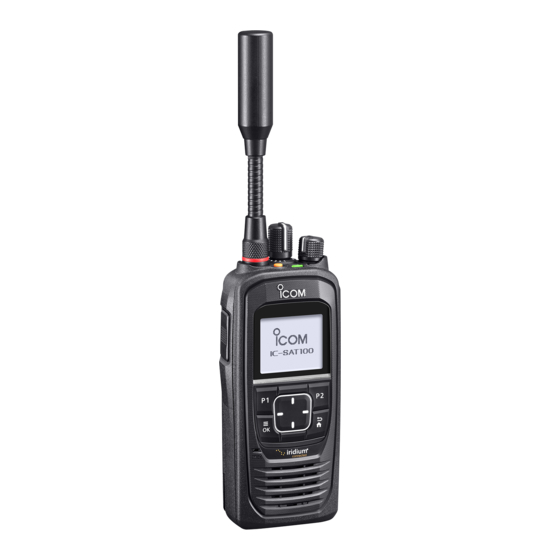

This reference guide describes useful information when using the satellite PTT transceivers.
1. Operating environment
• Move away from buildings and use the transceiver in areas with an open sky.
• Extended your arm horizontally, and raise your thumb.
• Turn your body around 360 degrees with your arm extended. Make sure that there are no obstacles such as
360°
buildings or trees higher than about 8 degrees.
8°
360°
Receiving and transmitting may fail, depending on the satellite positions or nearby obstacles.
2. Checking the signal strength
• Turn ON the transceiver and wait for the registration to complete, which takes approximately 30 seconds.
• Confi rm the antenna icon, indicating a connection with a satellite is established. After this, the registration has
been completed, you can see your Talkgroup and the transceiver's name on the display.
• The status "IDLE" is displayed when the transceiver is ready to operate.
While registering the transceiver, keep the antenna pointing to the sky. Otherwise, you may lose the signal from the satellite,
and registration may fail.
360°
SATELLITE PTT
|SAT100
8°
360°
Signal strength
Status
Transceiver Name
Talkgroup Name
8°
REFERENCE GUIDE
8°
IDLE
TRANSCEIVER1
TALKGROUP1
Scan
Last Call
- 1 -
