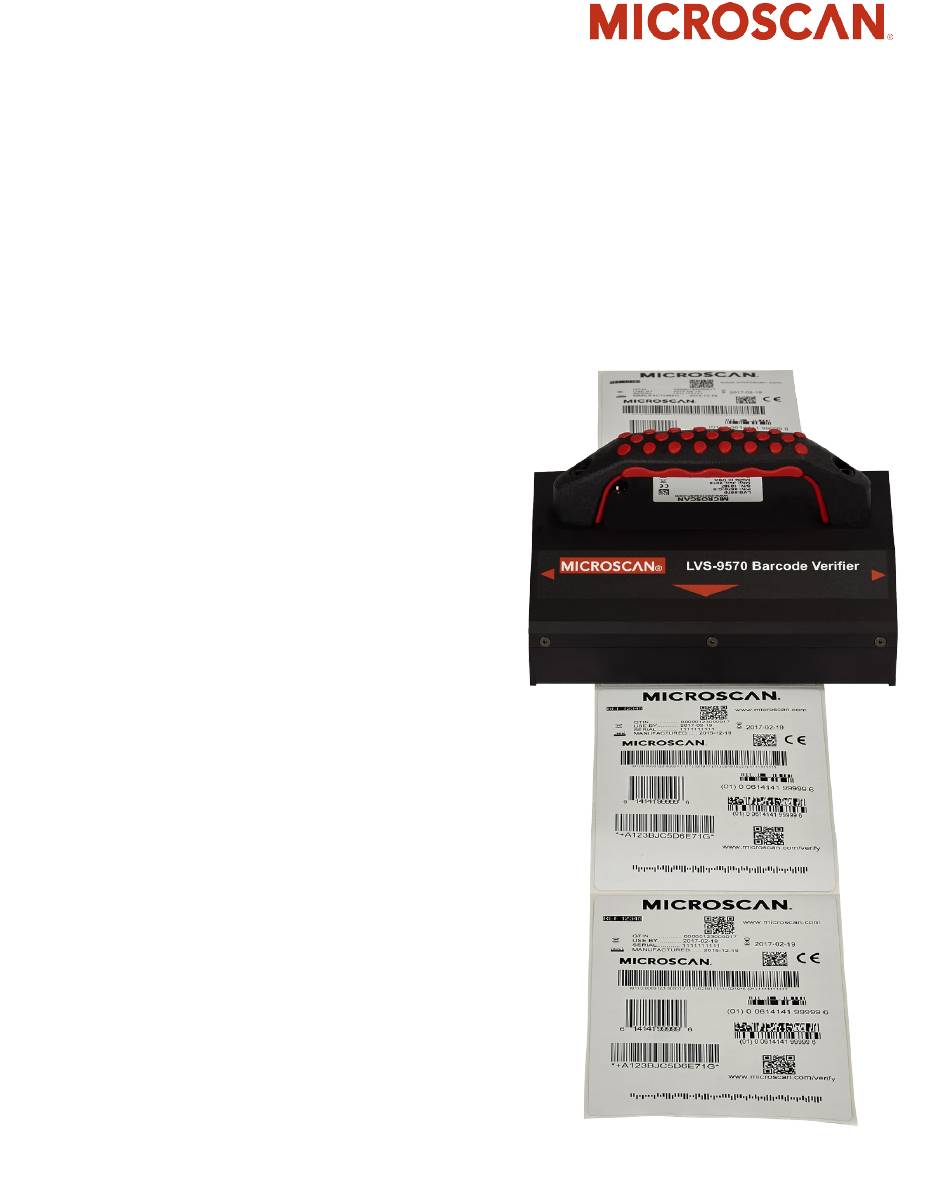

- Page 1 9570 ® Information Book P/N 83-9310004-02 Rev A...
-
Page 2: Table Of Contents
Table of Contents Features...........................4 Engineering Specifications.......................6 Configurations..........................7 Supported Symbologies......................8 Supported Standards.......................8 Software Overview........................8 Terms and Conditions.......................9 2 of 12 LVS-9570 Information Book... - Page 3 All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan.
-
Page 4: Features

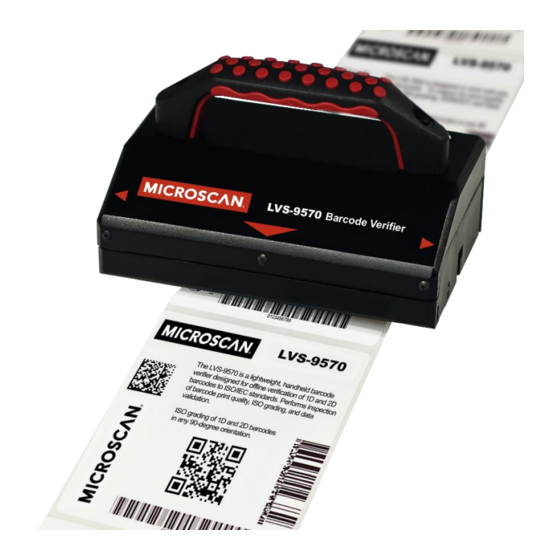

Features The LVS-9570 is a 1D and 2D handheld bar code verifier designed for offline verification of bar codes to ISO/IEC standards. The LVS-9570 is unique in the world of ISO verification due to its ease of use and ability to verify linear (1D) and two-dimensional (2D) codes using a lightweight, handheld verifier;... - Page 5 EAN/UPC NIST Traceable Calibrated Conformance Standard Test Card The LVS-9570 is supplied with a NIST traceable calibrated conformance standard test card provided by GS1 to ensure that the system is always within a known calibration standard. 21 CFR Part 11 compliant-ready 5 of 12 LVS-9570 Information Book...
-
Page 6: Engineering Specifications
Engineering Specifications Physical Properties Height • Verifier height 2.13 inches 54.10 mm • 4 inches 101.6 mm Total height including handle 3.94 inches 100.08 mm Length 6.56 inches 166.62 mm Width 2.3 pounds 1.04 kg Weight Scanner • 400 DPI •... -
Page 7: Configurations
Configurations The LVS-9570 uses a 400 dpi scanner to verify 1D and 2D codes that comply with ISO/IEC standards and GS1 General Specifications. 1D (Narrow Bar Width): 8.8 mils Minimum X Dimension (0.0088 inches) (0.223 mm) (Nominal): 2D (Cell Size): 12.5 mils (0.0125 inches) (0.317 mm) Field of View (Approximate): 5.4 inches (138 mm) -
Page 8: Supported Symbologies
Supported Symbologies Below are just a few of the symbologies supported by the LVS-9570. Contact Microscan for a full list of supported symbologies. ® Hanxin Code Aztec Code Interleaved 2 of 5 (ITF) Composite Code CC-A ITF-14 Composite Code CC-B... -
Page 9: Software Overview
Software Overview The LVS-9570 software is comprised of tabs located across the top of the screen, each designed to perform a specific function. Refer to the following sections for more information on each tab. Tabs WELCOME TAB The Welcome tab is the first tab to appear when logging onto the LVS-9570. This tab provides the version number and allows the user to select the desired software language. - Page 10 CALIBRATION TAB The Calibration tab is where calibration of the system occurs. An EAN/UPC NIST traceable Calibrated Conformance Test Card (test card) used for calibrating the LVS-9570. The test card is provided by GS1 to ensure the LVS-9570 is calibrated according to ISO/ IEC 15416:2000(E) and is traceable to NIST standards.
- Page 11 ZOOM TAB The Zoom tab allows you to further evaluate the quality of bar codes by magnifying the bar code image up to four times. You can change the position of magnification by clicking on a different position on the image, and you can also change the horizontal and vertical position of the image.
- Page 12 SAFETY CERTIFICATIONS DESIGNED FOR FCC, CE, UL (Pending) ROHS COMPLIANT QMS CERTIFICATION www.microscan.com/quality ©2016 Microscan Systems, Inc. Warranty – For current warranty information about this product, please visit www.microscan.com/warranty. ISO 9001 Registered www.microscan.com 12 of 12 LVS-9570 Information Book...
