External Components - Liquid Controls LectroCount LCR-II E3655 Series Installation Manual

Weights & Measures seals
To detect possible intrusions into Weights & Measures approved calibrations on a LectroCount LCR-II, fillister holes
have been drilled into the switchplate screw and the latch. To seal according to Weights & Measures standards, a wire
is threaded through the fillister holes and closed with a lead seal.
sWITChPlaTe

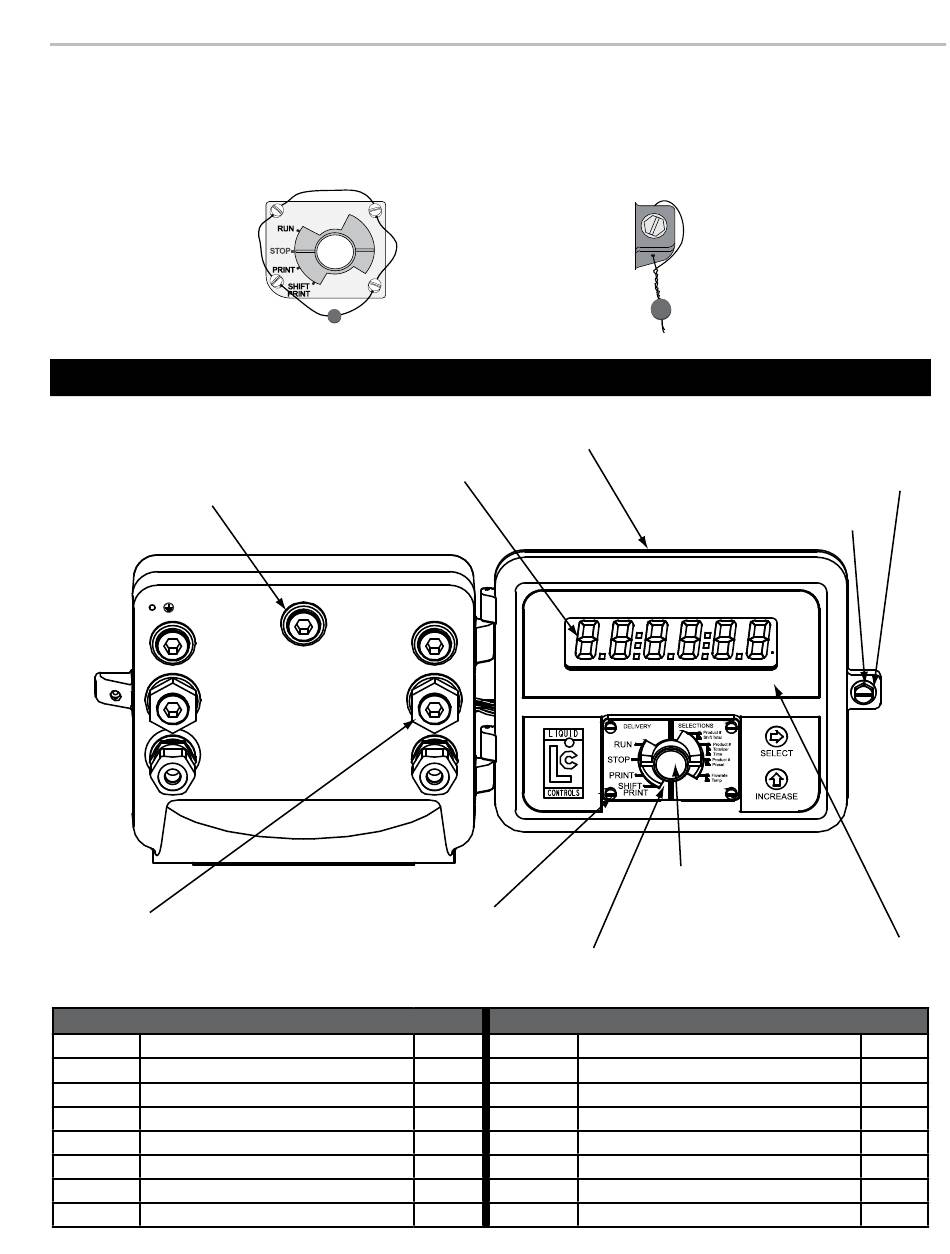

bill of Materials—external Components
07223
Plug ½-40 NPT (7)
08198
Hex Bushing ¾-½" NPT (2)
lectroCount lCr-II With Pulser
LCR-II PN
E365607 LCR-II W/ Pulser and No Tag
E365617 LCR-II W/ Pulser and Gross Gallons Tag
E365627 LCR-II W/ Pulser and Net Gallons Tag
E365637 LCR-II W/ Pulser and Gross Litres Tag
E365647 LCR-II W/ Pulser and Net Litres Tag
E365657 LCR-II W/ Pulser and Pounds Tag
E365667 LCR-II W/ Pulser and Kilograms Tag
PosT InsTallaTIon—bIll of MaTerIals
81915
LCD Display Assembly
08133
Screw #8-32 x ⅜" (4)
Description
818352
Enclosure Cover Assembly
LectroCount LCR-II
Gallons
08198
Switch Plate
lectroCount lCr-II Without Pulser
Tag PN LCR-II PN
E365507 LCR-II W/O Pulser and No Tag
818271 E365517 LCR-II W/O Pulser and Gross Gallons Tag 818271
818272 E365527 LCR-II W/O Pulser and Net Gallons Tag
818273 E365537 LCR-II W/O Pulser and Gross Litres Tag
818274 E365547 LCR-II W/O Pulser and Net Litres Tag
818275 E365557 LCR-II W/O Pulser and Pounds Tag
818276 E365567 LCR-II W/O Pulser and Kilograms Tag
laTCh
06635
Flat Washer .265" ID
08193
Captive Screw ¼-20 x ⅝"
Volume Corrected
to 60°F
70471
Selector Switch Knob
Tag (See Tables Below)
Description Tag PN
818272
818273
818274
818275
818276
