Standard System; Introduction To Simjunior Standard; Setup Summary - laerdal SimJunior Directions For Use Manual

Setup Summary

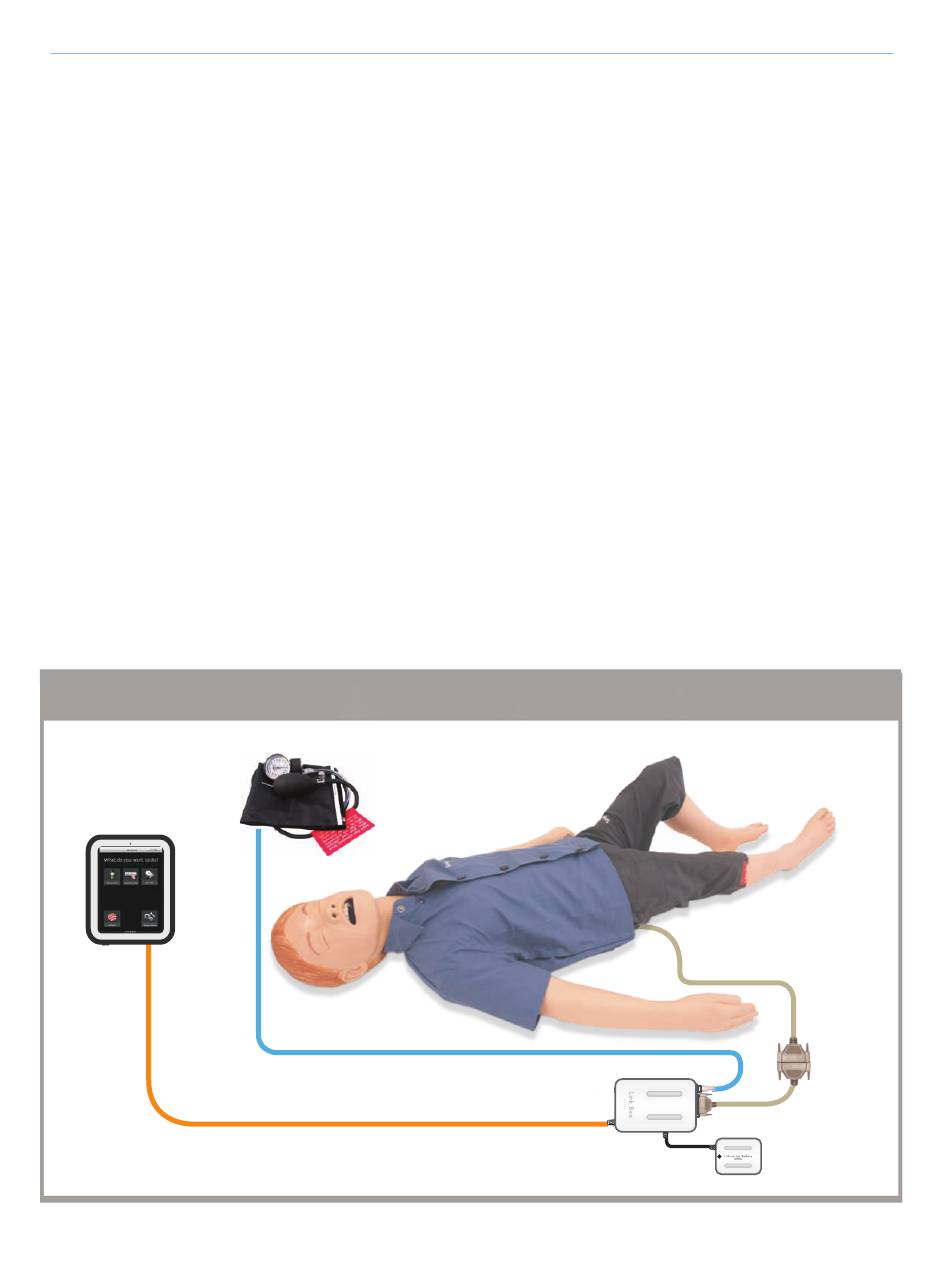

See below illustration "Setup of SimJunior Standard. "
1.
Connect the SimPad to the Link Box
–
Connect the Link Box to power supply or battery.
– The SimPad can connect to the Link Box wirelessly or wired with a Network Cable.
2.
Connect the Manikin to the Link Box
–
Connect the 37-Pin Serial Cable (Adapter Cable may be required) to the Link Box.
–
Place the Blood Pressure cuff on the left arm of the
manikin if desired.
–
Connect the clear tubing from the Blood Pressure cuff to
the SimPad Blood Pressure connector on the back of the
Link Box.
3. Connect the Manikin to a power supply.
The manikin can be powered by external power or by an internal battery.
–
– The manikin battery can be charged by connecting the external power connector
to the manikin power adapter.
–
The manikin battery and the SimPad battery are the same.
4. Refer to the SimPad DFU for Setup of the SimPad
SimPad

Standard System

Setup of SimJunior Components
BP Tube
Network Cable
(Optional)
Link Box
8
Manikin Cable
Adapter Cable
Battery
