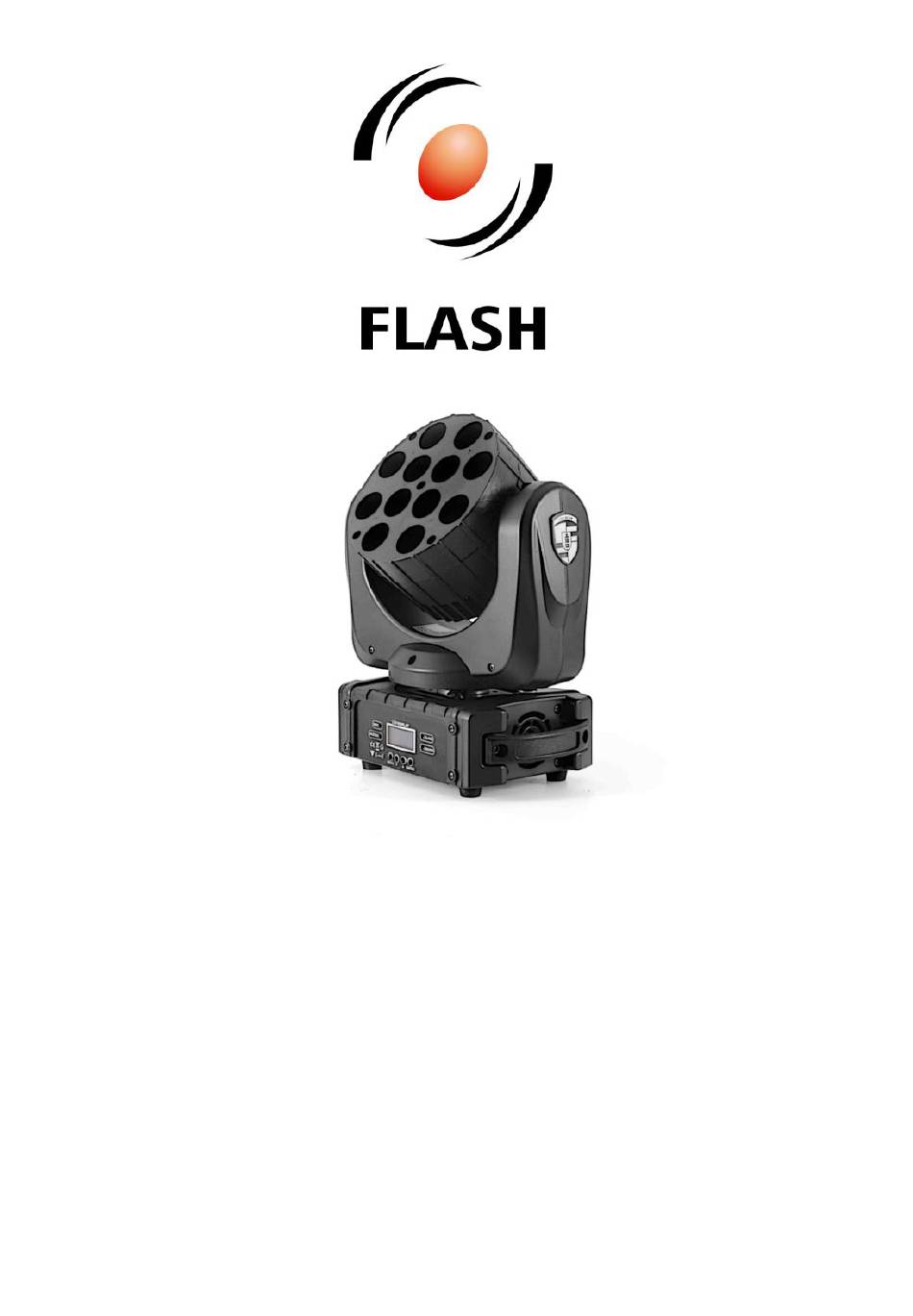

  • Page 1 LED Moving Head 12x12 BEAM F7100496 USER MANUAL / INSTRUKCJA OBSŁUGI...

  • Page 2: Table Of Contents

    LED Moving Head 12X12 BEAM - F7100496 Table of Contents Introduction ..............................2 Safety information ............................2 Product information ............................2 Specification ..............................2 Installation ................................ 3 Connections ..............................3 Connecting DMX signal..........................3 Voltage specification ..........................3 Connecting power supply ........................4 Operation manual ............................

  • Page 3: Introduction

    Diode power: 12W  Display: LCD Matrix  Color: RGBW  Dimming: Linear: 0 - 100%  Flash frequency (min): 0Hz  Flash frequency (max): 12Hz  PAN range: 540  TILT range: 270  Number of DMX channels: 9 / 16 ...

  • Page 4: Installation

    LED Moving Head 12X12 BEAM - F7100496  IP Rating: IP20  Housing made: ABS  Cooling: Active INSTALLATION After removing the packaging, check if the device was not damaged during transport. Before connecting to the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage caused by unstable mounting.

  • Page 6: Dmx Channel List

    LED Moving Head 12X12 BEAM - F7100496 DMX channel list 9CH mode Channel Function Effect CH 1 0-255: CH 2 TILT 0-255; CH 3 Dimmer 0-255: CH 4 0-255: CH 5 Green 0-255: CH 6 Blue 0-255: CH 7 White...

  • Page 7: Wprowadzenie

    Barwa: RGBW  ZOOM: Nie  Ściemnianie: Płynne: 0 - 100%  Błysk - częstotliwość minimalna: 0Hz  Błysk - częstotliwość maksymalna: 12Hz  Zakres ruchu - PAN: 540  Zakres ruchu - TILT: 270  Ilość kanałów DMX: 9/16 www.flash-butrym.pl...

  • Page 8: Instalacja

    LED Moving Head 12X12 BEAM - F7100496  Standard DMX: DMX 512  Sterowanie: 4 przyciski  AC IN: powerCON  AC OUT: powerCON  DMX IN: XLR - 3 pin  DMX OUT: XLR - 3 pin  Stopień ochrony IP: IP20 ...

  • Page 9: Specyfikacja Zasilania

    INSTRUKCJA UŻYTKOWANIA Panel sterowania Panel sterowania wyposażony jest w wyświetlacz oraz w 4 przyciski sterujące o następujących funkcjach: MENU – wybranie funkcji DOWN – edycja parametru UP – edycja parametru ENTER – zatwierdzenie zmian www.flash-butrym.pl...

  • Page 10: Lista Kanałów Dmx

    LED Moving Head 12X12 BEAM - F7100496 Lista kanałów DMX 9CH mode Channel Function Effect CH 1 0-255: CH 2 TILT 0-255; CH 3 Dimmer 0-255: CH 4 0-255: CH 5 Green 0-255: CH 6 Blue 0-255: CH 7 White...
