Machine control – Operating elements
4
4.1

Overview of control sections

For description purposes, the machine control has been divided into two sections (A, B) to
ensure maximum clarity. The setting ranges for the parameter values are summarised in the
parameter overview section > see 8.1 chapter.
Item Symbol
1
2
099-00LPXQ-EW501
13.03.2018
Machine control – Operating elements
Description 0
Control section A
> see 4.1.1 chapter
Control section B
> see 4.1.2 chapter

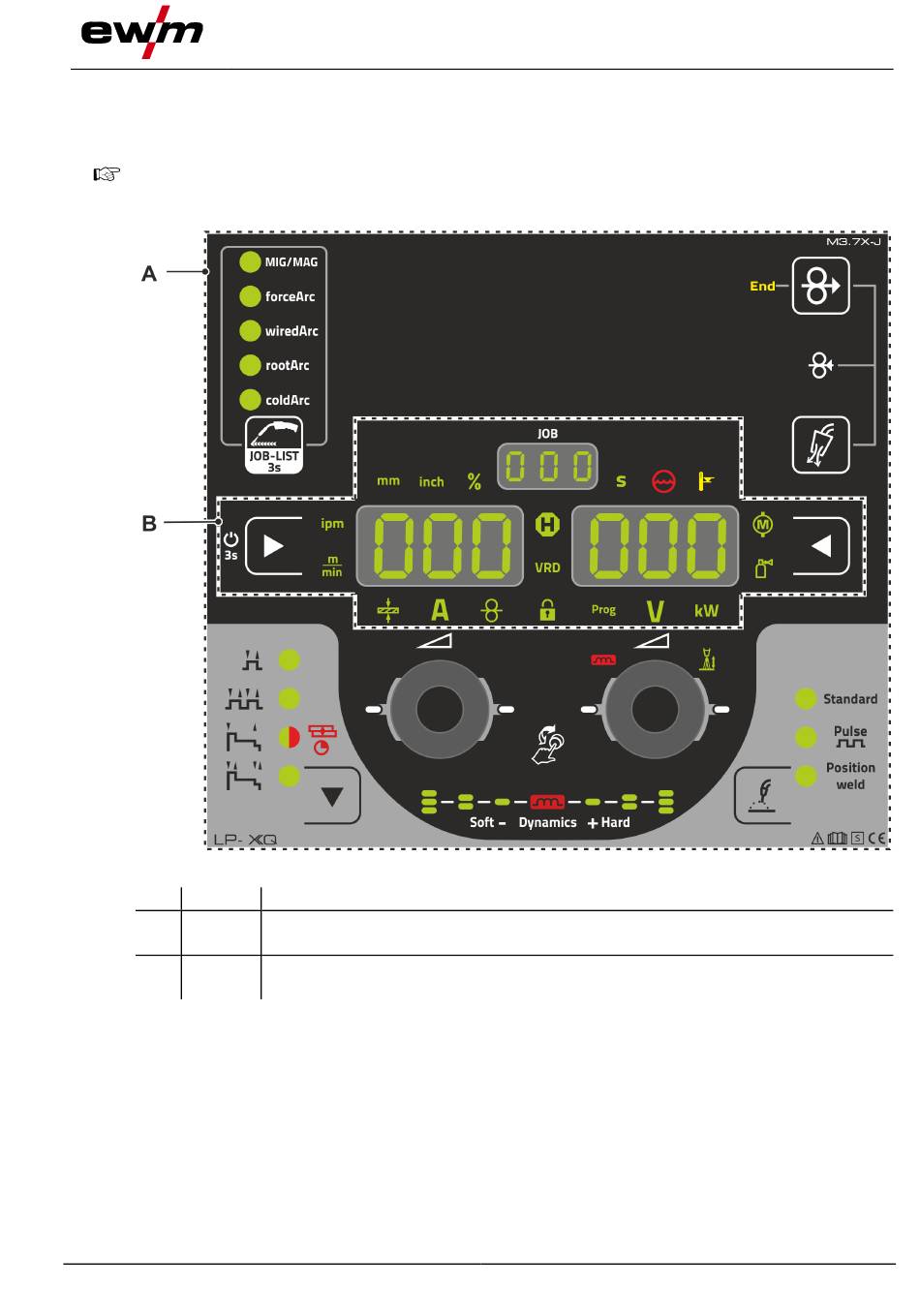

Figure 4-1
Overview of control sections
