INSTALLING THE REMOTE
BLOWER
NOTE: The following instructions are for
preparing the hood for use with external or
in-line blower models CBE-1000 or PBN-
1000A. For blower installation details refer
to manual included with the blower.

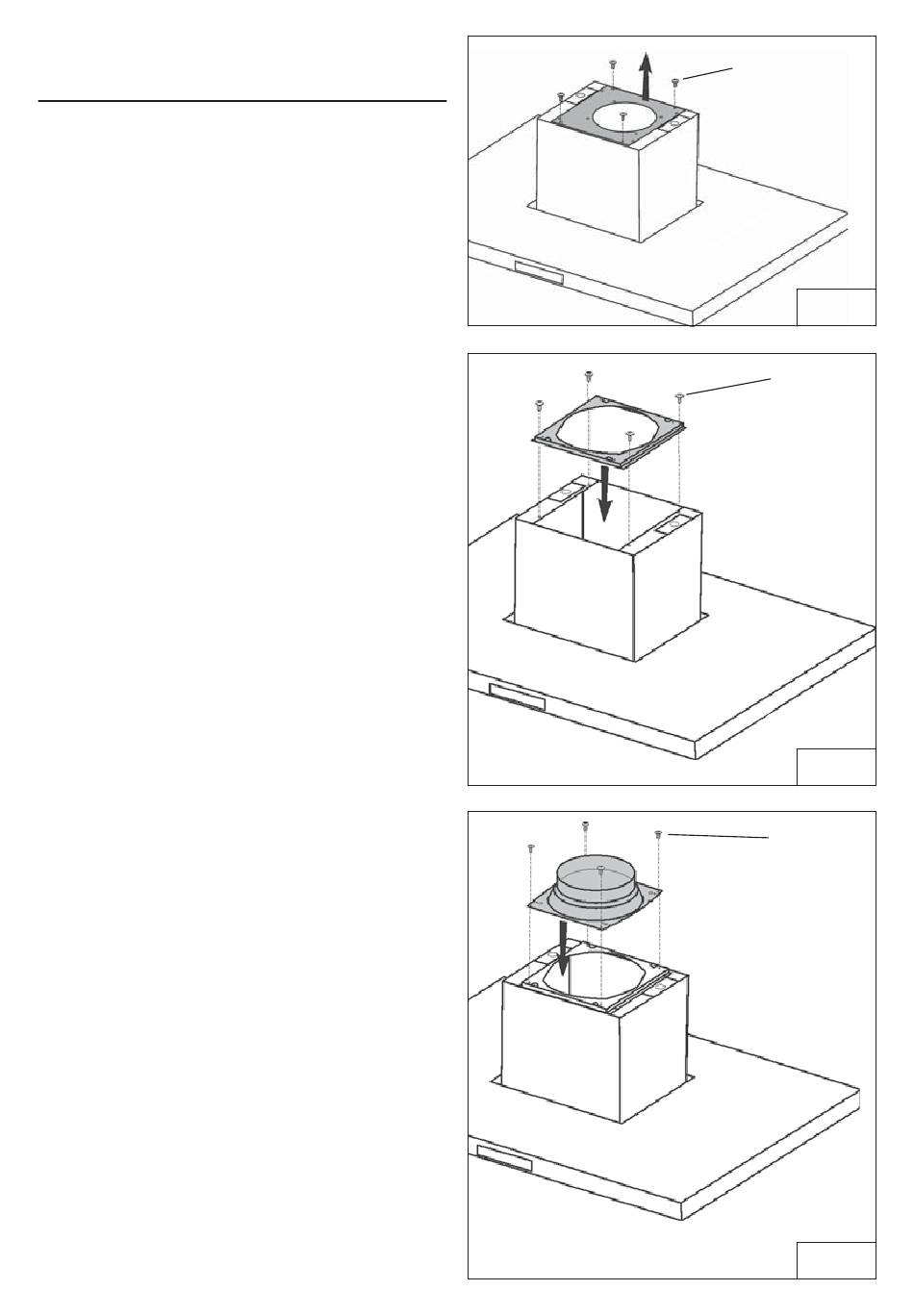

1. Remove the blower plate unscrewing the
(4) 3.9x9.5 mm screws (Fig.15).
2. Install the external blower plate and secure
using (4) 3.9x6 mm screws (Fig.16)
3. Install 8" round blower collar to top of
blower housing screwing the (4) 3.9x9.5
mm screws (Fig.17).
- 20 -
MOUNTING
SCREWS
3.9x6mm
FIG. 15
MOUNTING
SCREWS
3.9x6 mm
FIG. 16
MOUNTING
SCREWS
3.9x9.5 mm
FIG. 17
