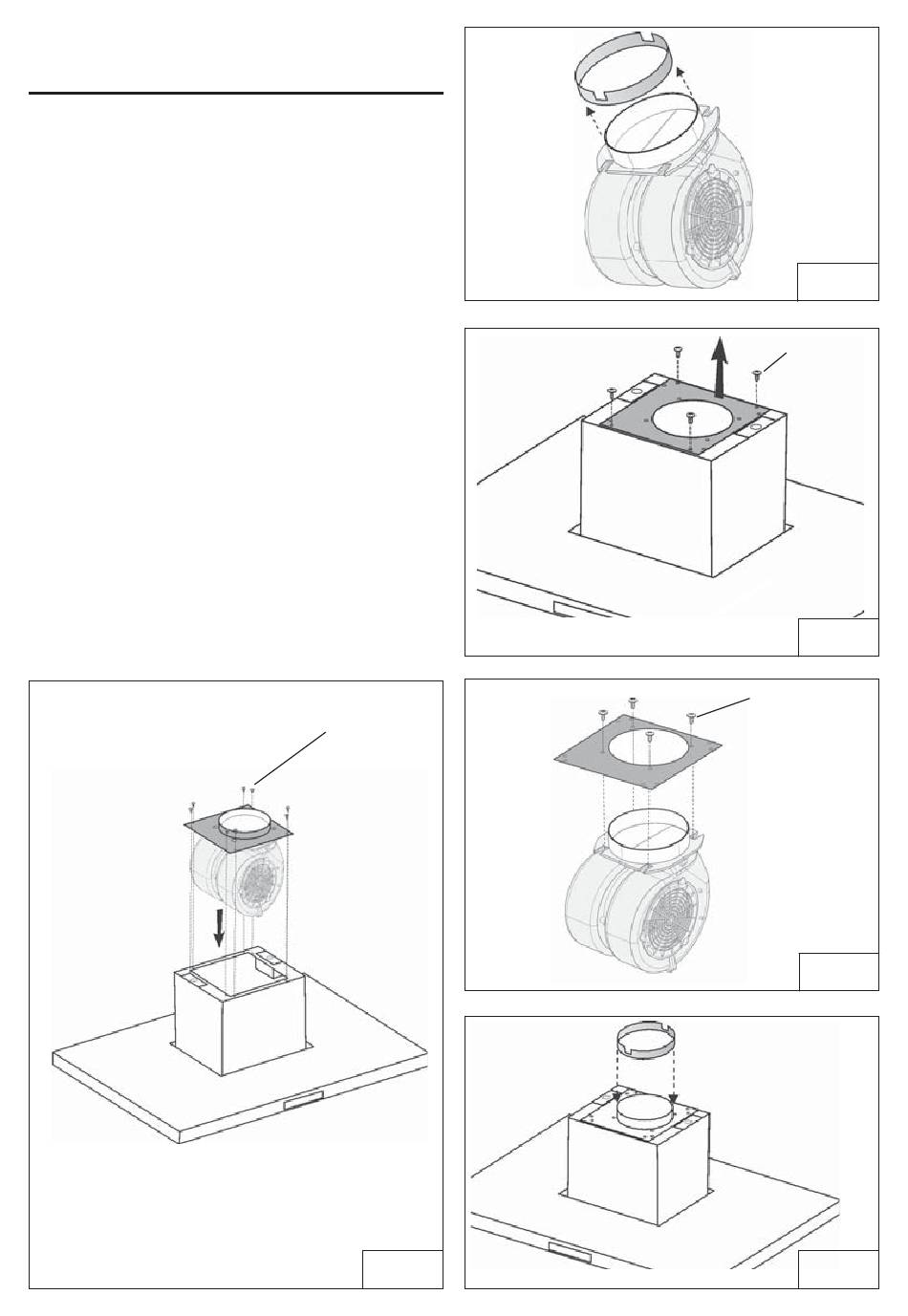

INSTALLING THE INTERNAL
BLOWER
NOTE: The following instructions are for
installing the internal blower only.
Install this range hood only with internal blower
model CBI-290A or CBI-600A.
1. Remove the 6" metallic flange provided on
the blower's air outlet (the flange may
already be pre-installed) (Fig.8).
2. Remove the blower plate unscrewing the
(4) 3.9x9.5 mm screws (Fig.9).
3. Install internal blower into blower plate and
secure using (4) screws (Fig.10).
4. Install assembly blower by means (8) 3.9x6
mm screws (Fig.11).
5. Place the 6" metallic flange provided on the
blower's air outlet (Fig.12).
MOUNTING
SCREWS
3.9x6mm
FIG. 11
- 17 -
FIG. 8
MOUNTING
SCREWS
3.9x6mm
FIG. 9
(4) MOUNTING
SCREWS
(Supplied with the
motor)
FIG. 10
FIG. 12
