Dynojet Power Commander V Installation Instructions page 4

FIG.D
PCV ground
FIG.E
FIG.F
22-063 www.powercommander.com

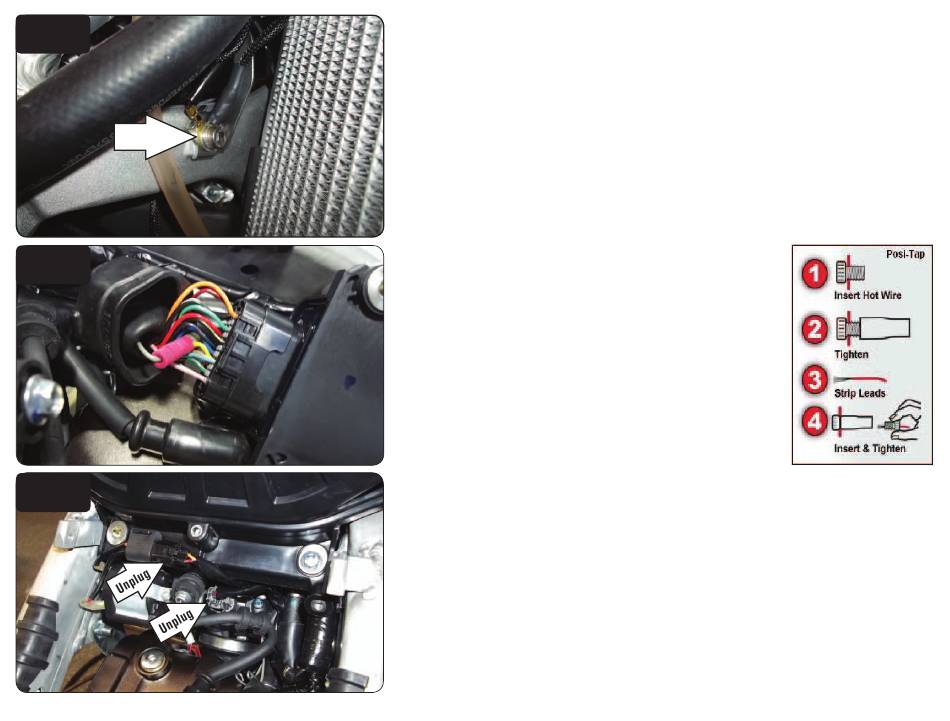

7 Secure the PCV ground wire with the ring lug to the common ground located
on the frame just below the PCV module mounting location (Fig. D).
8 Loosen the rubber boot surrounding the stock ECU
connector.
9 Feed the single unterminated GREY wire of the PCV
wiring harness through the rubber boot.
10 Use the supplied Posi-tap to attach the PCV
GREY wire to the stock YELLOW wire on the ECU
connector (Fig. E).
11 Pull the rubber boot back over the ECU connector.
12 Unplug the BLACK 2-pin connector for the Ignition Coil.
13 Unplug the GREY 2-pin connector for the Fuel Injector (Fig. F).
2014 Yamaha YZ450F F/I PCV - 4
