Dynojet Power Commander V Installation Instructions page 3

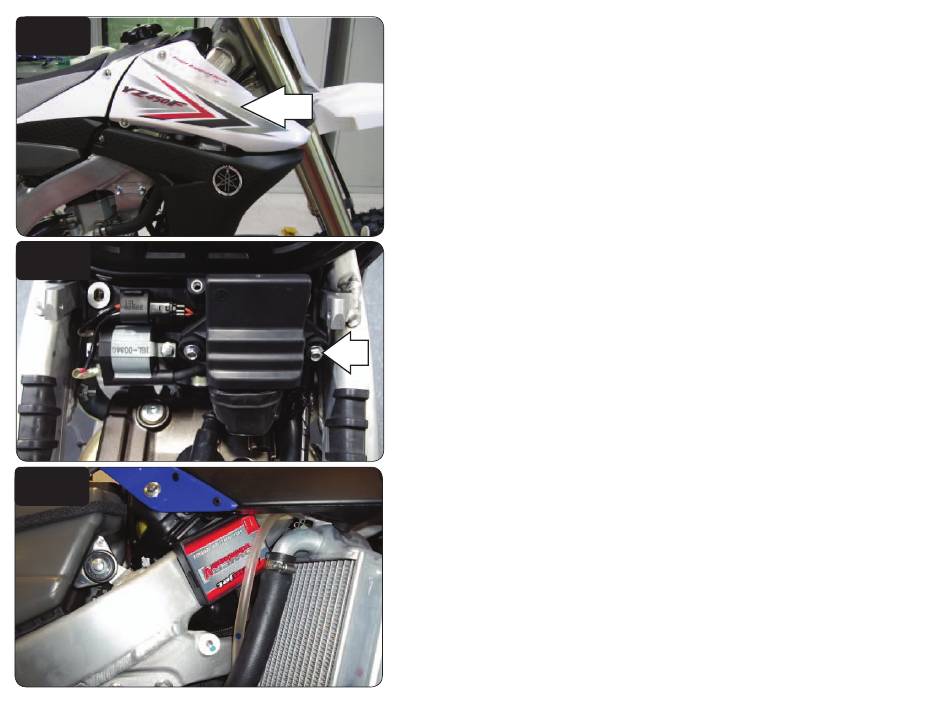

FIG.A
FIG.B
FIG.C
22-063 www.powercommander.com
1 Remove the seat.
2 Remove the radiator shrouds on both sides (Fig. A).
3 Remove the fuel tank.
The fuel tank does not need to be completely removed; but it does need to be
loosened and lifted out place to access the ECU and throttle body.
4 Remove the right ECU bolt, and pull the ECU loose from its mounting location
(Fig. B).
5 Install the PCV module to the right hand side of the frame using the supplied
Velcro and/or the zip tie (Fig. C).
6 Route the PCV harness to the inside of the frame and go towards the throttle
body.
The shorter harness branch with the pair of WHITE 2-pin connectors and
BROWN colored wires will need to go towards the left radiator.
Loosening the airbox will help routing the harness.
2014 Yamaha YZ450F F/I PCV - 3
