Installation and Assembly:
PC Component Plate for PULL-OUT Video Wall Mounts
Models: DS-ACC770
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Before you start check the parts list below to make sure all of the parts shown are included.

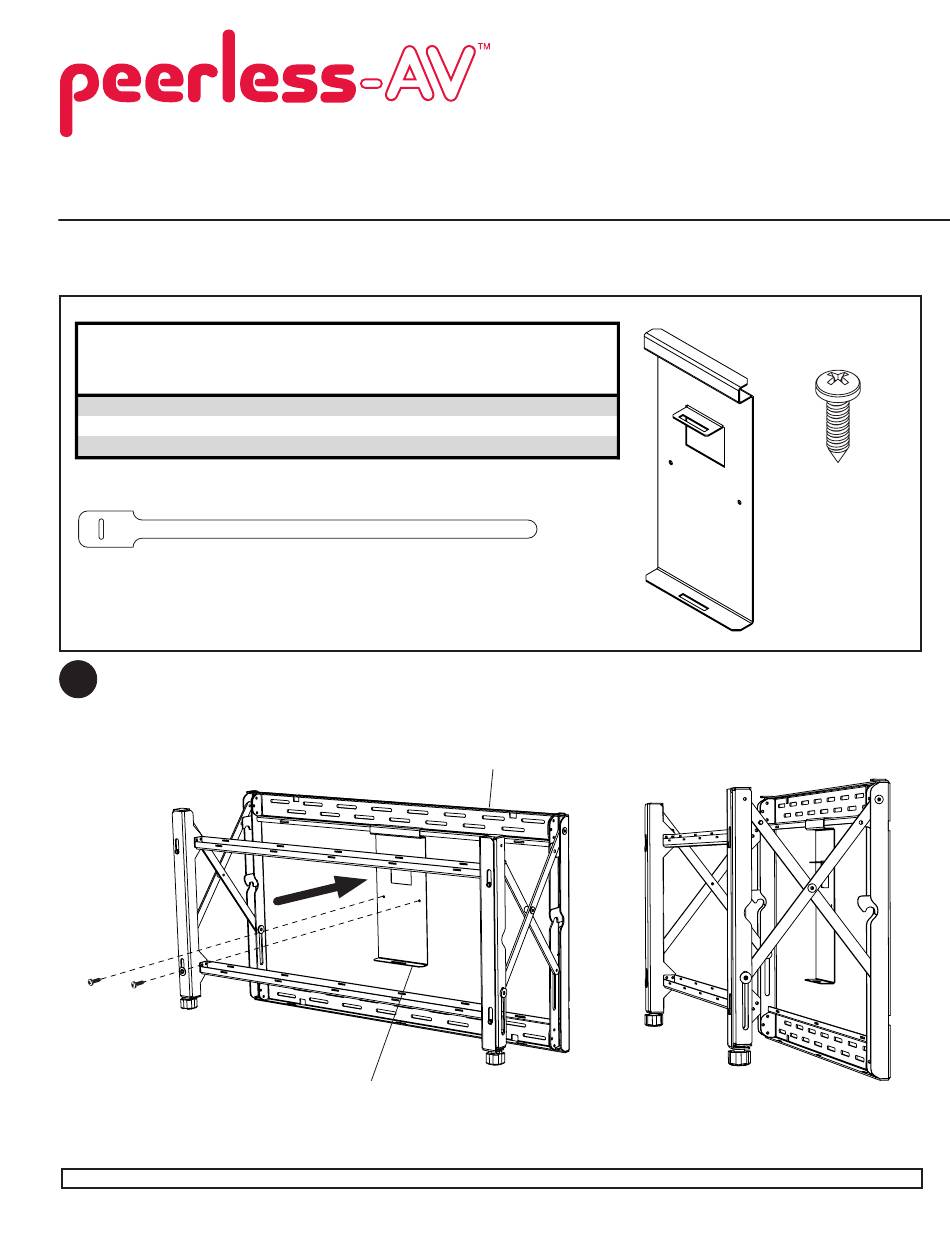

Parts List
Description
A component plate
B #10 x 3/4" wood screw
C 13" black velcro strip
C
Open DS-VW765-LAND using instructions provided with DS-VW765-LAND.
1
Insert and position component plate (A) as shown. Secure component plate to mounting surface using two
screws (B) as shown below.
B
Qty.
Part #
1
145-T1407
2
500-9006
2
560-0232
DS-VW765-LAND
A
1 of 2
A
B
SIDE VIEW
ISSUED: 08-08-11 SHEET #: 125-9230-1
Advertisement
Table of Contents
Related Manuals for peerless-AV DS-ACC770
Summary of Contents for peerless-AV DS-ACC770
-
Page 1: Parts List
Installation and Assembly: PC Component Plate for PULL-OUT Video Wall Mounts Models: DS-ACC770 IMPORTANT! Read entire instruction sheet before you start installation and assembly. Before you start check the parts list below to make sure all of the parts shown are included. - Page 2 Use two 13" black velcro strips (C) to secure PC component to component plate (A). Use slots in component plate (A) when securing 13" black velcro strips (C). SLOT PC COMPONENT 2 of 2 ISSUED: 08-08-11 SHEET #: 125-9230-1 © 2011 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc.
