• Insert the end of the tube package through the strain relief intermediate tube package and lock by
turning to the right.
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
• Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
• Lock connecting nipples of the cooling water tubes into the corresponding rapid-action closure
couplings:
Return line red to rapid-action closure coupling, red (coolant return) and
supply line blue to rapid-action closure coupling, blue (coolant supply).
Item No.:099-OW0008-EWM01
0
Intermediate tube package strain relief
7-pole connection socket (digital)
Wire feed unit connection
Connection socket for "+" welding current
Welding current connection for wire feed unit
Rapid-action closure coupling, red (coolant return)
Rapid-action closure coupling, blue (coolant supply)

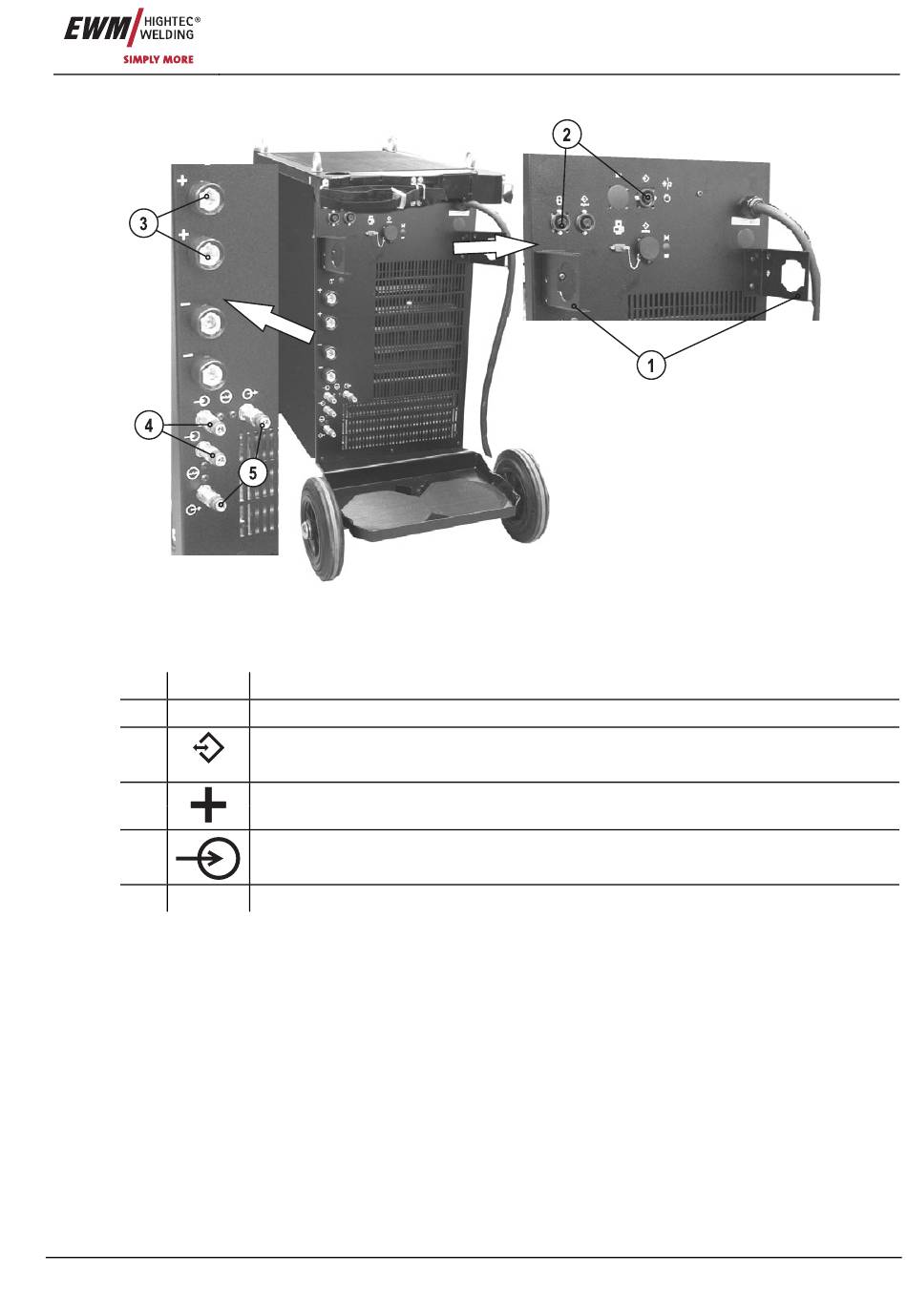

Connecting the intermediate tube package to the power source
Figure 5-3
