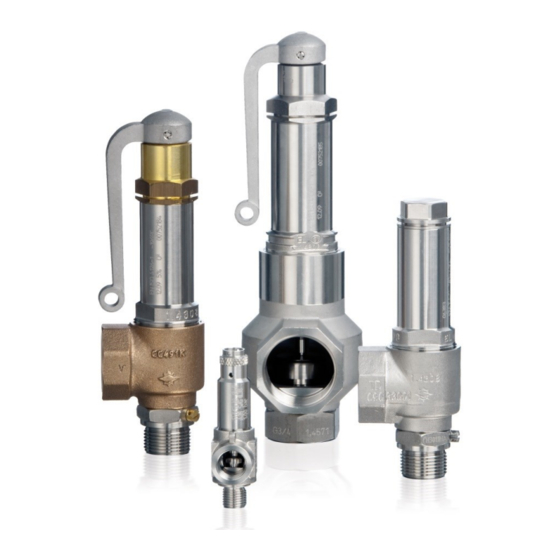

HEROSE 06001 Operating Instructions Manual
Angle safety valve for cryogenic applications
Hide thumbs
Also See for 06001:
- Operating instructions manual (80 pages) ,
- Operating instructions manual (84 pages) ,
- Operating instructions manual (96 pages)
Related Manuals for HEROSE 06001
Summary of Contents for HEROSE 06001
- Page 1 HEROSE GMBH ARMATUREN UND METALLE Operating instructions Angle safety valve For cryogenic applications...
- Page 3 Operating instructions READ CAREFULLY BEFORE USE! RETAIN FOR FUTURE REFERENCE! © 2018 HEROSE GMBH ARMATUREN UND METALLE Elly-Heuss-Knapp-Straße 12 23843 Bad Oldesloe Germany Phone: +49 4531 509 – 0 Fax: +49 4531 509 – 120 E-mail: info@herose.com Web: www.herose.com 1st issue 1/2019 The transmission or duplication of this document and the use or communication of its content are forbidden unless expressly permitted.
-
Page 4: Table Of Contents
Operating instructions Table of contents About these instructions ....................1 Safety ..........................1 Transport and storage ....................3 Description of the safety valve ..................4 Assembly ........................7 Operation ........................9 Maintenance and service ..................... 10 Disassembly and disposal ................... 12 Phone +49 4531 509-0... -
Page 5: About These Instructions
Follow all safety instructions and operating procedures in these operating instructions. Warranty claims against HEROSE GMBH will be rejected if the HEROSE seal is broken by unauthorised companies. Meaning of the operating instructions The operating instructions are to be read and followed by the responsible technical personnel before installation and start-up. - Page 6 Operating instructions Requirements for persons who work with the safety valve Persons could be seriously injured or killed if the safety valve is used improperly. In order to avoid accidents, all persons who work on the valve must meet the following minimum requirements: ...
-
Page 7: Transport And Storage
Inspection of condition on delivery Inspect the safety valve for damage upon receipt. In case of transport damage, determine and document the precise extent of the damage, and report it immediately to the supplying dealer/carrier and the insurer. herose.com... -
Page 8: Description Of The Safety Valve
The safety valves are provided with an individual marking for identification. Symbol Explanation e.g. G1/2 Connection size PN….. Rated working pressure (max. permissible operating pressure) Manufacturer's mark "HEROSE" e.g. 1.4301 Material no. CE-mark, ID of notified body 0045 e.g. 06381 Type 01.18... - Page 9 European Parliament and of the Council, article 2, section 4. Operating data Pressure Max. back Temperature range pressure Type Medium [mm] [°C] [bar] 06001/06011 5.0 to 55 -196 °C to +65 °C 06002/06006/ 1.0 to 55 -196 °C to +150 °C 06012/06016 06381 10,5 0.2 to 25 06386/06387 06416/06417 -196 °C to +185 °C...
- Page 10 See catalogue page. Lifetime The user is obligated to use Herose products for their intended purpose. In this case, a technical service life may be assumed in accordance with the underlying product standards (e.g. EN1626 for shut-off valves and EN ISO 4126-1 for safety valves).
-
Page 11: Assembly
Operating instructions Assembly Installation position Type Installation position 06001/06011/ The safety valves can be installed vertically or in a 06002/06006/ horizontal installation position with the outlet 06012/06016 facing downwards. 06381 Vertical 06383/06413 06386/06387 The safety valves 06388, 06383, 06430 and... - Page 12 Operating instructions Tightening torques max. tightening torque [Nm] External thread Internal thread Type Material Thread R; Rc R; Rc 1/4'' CW617N 38'' 06001-06011 1/2'' 06002-06012 1/4'' 06006-06016 1.4408 38'' 1/2'' 1/2'' 3/4'' CW614N 11/4'' 11/2'' 1000 1900 1100 1300 1/2''...
-
Page 13: Operation
Step 2: Release the lifting knob and tighten it again. Step 1: Pull the lifting lever away from the spring cover until blow-off of the operating medium is clearly audible. Step 2: Release the lifting lever again. herose.com... -
Page 14: Maintenance And Service
Operating instructions Maintenance and service Safety during cleaning Take note of the specifications in the safety data sheet and the general occupational health and safety rules if degreasers are used for process-related reasons for the cleaning of bearing parts, fittings and other precision parts. - Page 15 Safety valves dimensioned Inadequate Re-dimension and replace the incorrectly for the plant performance safety valve. conditions; Safety valves not being used in accordance with the applicable Change conditions. regulations; herose.com...
-
Page 16: Disassembly And Disposal
Operating instructions Repairs Repairs to the safety valves may be carried out only by HEROSE or by specialist workshops authorised by HEROSE and monitored by the regulatory authorities, using only original spare parts. Returns / complaints Use the Service form in case of returns/complaints.
