Download
Share
Print this page
BEA EAGLE ONE HM User Manual
  1. Manuals
  2. Brands
  3. BEA Manuals
  4. Security System
  5. Eagle HM
  6. User manual

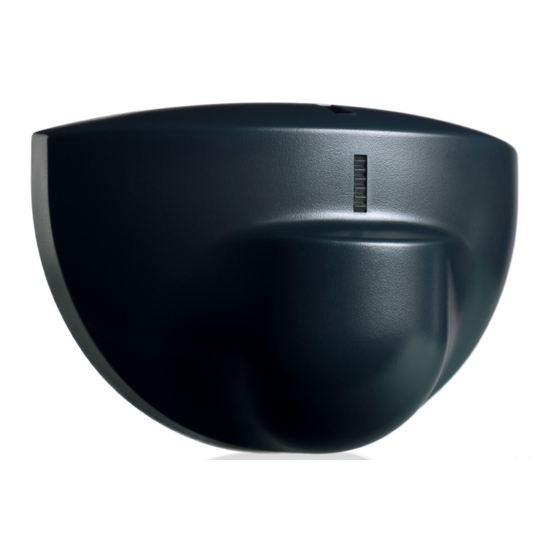

BEA EAGLE ONE HM User Manual

Universal motion sensors for high mounting on automatic doors
Hide thumbs Also See for EAGLE ONE HM:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Technology
TECHNICAL
SPECIFICATION
Transmitter frequency
Transmitter radiated power
Transmitter power density
Mounting height
Minimum
•
Maximum
•
Tilt angles
Detection area
(mounting height = 5 m)
Detection mode
Minimum speed
Supply voltage
Mains frequency
Power consumption
Output relay (free of potential change-over contact)
• Max. contact voltage
• Max. contact current
• Max. switching power
DESCRIPTION OF
THE SENSOR
INSTALLATION
TIPS
The sensor must be firmly
fastened to prevent from
vibrating.
UNIVERSAL MOTION SENSORS FOR HIGH MOUNTING ON AUTOMATIC DOORS
EAGLE ONE HM : unidirectional sensor • • • • EAGLE TWO HM: bidirectional sensor
: microwave and
microprocessor
: 24.175 GHz
: < 20 dBm EIRP
: < 5 mW/cm²
: 4m
: 5m
: 0° to 90° vertical
-30° to + 30° lateral
: 4m (W) x 2.5m (D)
: motion
: 5 cm/s (measured in the
sensor axis)
: 12V to 24V AC ±10%
12V to 24V DC +30% / -10%
: 50 to 60 Hz
: < 2W (VA)
: 42V AC - 60V DC
: 1A (resistive)
: 30W (DC) / 60VA (AC)
INTERNAL VIEW
The sensor must not be
placed directly behind a
panel or any kind of
material.
EAGLE ONE HM & EAGLE TWO HM
EAGLE ONE HM & EAGLE TWO HM
EAGLE ONE HM & EAGLE TWO HM
EAGLE ONE HM & EAGLE TWO HM
Hold time
Temperature range
Degree of protection
Norms and conformity
Dimensions
Weight
Material
Color of housing
Length of cable
Manual adjustment
• Sensitivity (by push buttons)
• Orientation of sensing field (mechanically)
Remote control adjustments
• Sensitivity
• Hold time
• Detection mode
• Immunity
• Mounting height
• Output configuration
• Door control
• Security
Terminal block
Wire opening footprints
Infrared receiver
LED
Push buttons
Lateral antenna position
adjustment
Planar antenna
Vertical antenna position
adjustment
The sensor must not
The sensor must not
have any object likely to
have any fluorescent
move or vibrate in its
lighting in its sensing
sensing field.
field.
USER'S GUIDE
: 0.5s to 9s (adjustable)
: -20°C to +55°C
: IP54
: EMC 2004/108/EC
: 120 mm (W) x 80 mm (H) x 50 mm (D)
: 0.215 kg
: ABS
: anthracite gray, aluminum finish
or white
: 2.5m
:
10 levels
:
from 0.5s to 9s in 10 levels
:
uni-/bidirectional, MTF, reverse mode
(Eagle ONE HM only)
:
quasi-presence, normal, increased
immunity, additional increased
immunities
:
standard, high
:
active/passive
:
automatic, permanently open/closed
:
1-4 digit access code
HOUSING
(INTERNAL VIEW)
To avoid damage by
electrostatic discharges,
do not touch any
electronic part of the
sensor.
1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the EAGLE ONE HM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA EAGLE ONE HM

Summary of Contents for BEA EAGLE ONE HM

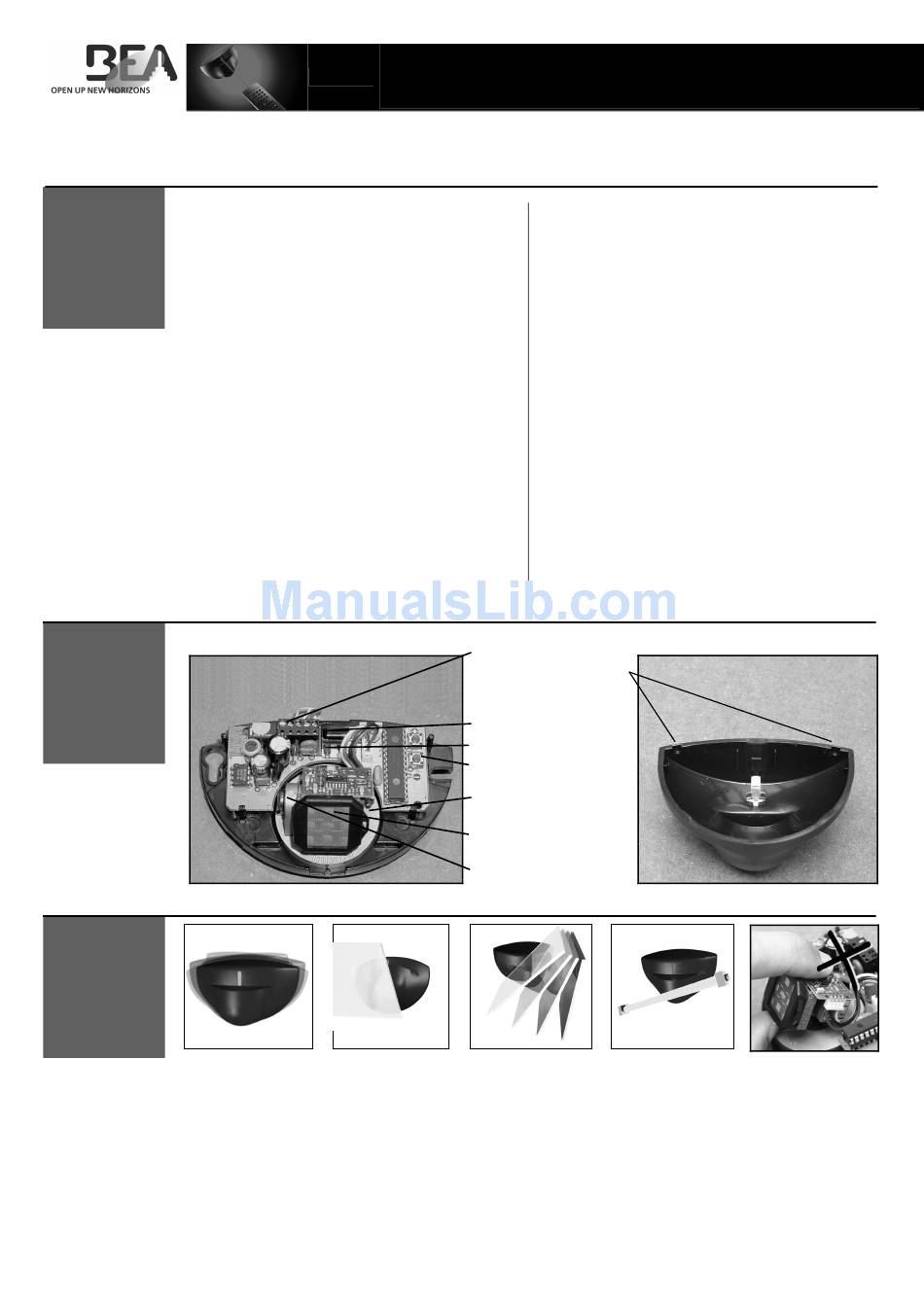

  • Page 1 EAGLE ONE HM & EAGLE TWO HM EAGLE ONE HM & EAGLE TWO HM USER’S GUIDE UNIVERSAL MOTION SENSORS FOR HIGH MOUNTING ON AUTOMATIC DOORS EAGLE ONE HM : unidirectional sensor • • • • EAGLE TWO HM: bidirectional sensor Technology : microwave and Hold time : 0.5s to 9s (adjustable)
  • Page 2 OPENING THE SENSOR From behind, before installation From the front, after installation PREPARATION FOR MOUNTING THE SENSOR • Paste the template • Insert screws, but do not screw them • Cut one of the footprint for the wire. fully home •...

  • Page 3: Mechanical Configuration

    DIMENSIONS OF THE SENSING FIELD (WIDTH, DEPTH, DEAD ZONE) ARE DETERMINED BY THE SENSITIVITY SETTING (0 to 9) MECHANICAL CONFIGURATION The sensing fields here on the right correspond to the following adjustments: • Vertical angle of antenna: 20; • Bidirectional mode; •...

  • Page 4: Insertion Of Batteries

    INSERTION OF BATTERIES FUNCTIONS CONFIGURATION WITH REMOTE • Open the battery compartment at the back of the remote control; CONTROL • Insert two AAA batteries supplied with the remote control as shown on the left; • Close the battery compartment. (10) Not used 0-9 Number keys (1) (11) Not used...
  • Page 5 Key 3 : Unidirectional mode with MTF-function Using the MTF (Motion Tracking Feature) enables the sensor Key 4 : Unidirectional mode reverse EAGLE ONE HM to automatically switch from the unidirectional mode to Key 5 : Unidirectional mode reverse with MTF- function only! bidirectional mode as soon as a target is detected.

  • Page 6: Led Signal

    Factory setting Sensitivity 0 - 9 Hold time 0 - 9 Detection mode 1 - 5 2 (EAGLE ONE HM) – 1 (EAGLE TWO HM) Immunity 1 - 9 Mounting height 1 - 2 Output configuration 1 - 2 Door control 1 - 3 If you do not have a remote control, you can only adjust the sensitivity parameter, by means of the push buttons + and - .
  • Page 7 The sensor will not unlock when access Improper access code being Cut and restore power supply. No access code is TROUBLE- code is entered. entered. required to unlock during the first minute after SHOOTING powering. Press on “unlock”, then on “lock” and introduce a new access code.
  • Page 8 The declaration of conformity and other technical documentation are available on our website or can be requested by phone or mail. BEA S.A. - LIEGE Science Park – Allée des Noisetiers 5 – B-4031 Angleur - Tel: +3243616565 – Fax: +3243612858 – info@bea.be - www.bea.be...

This manual is also suitable for:

Eagle two hm
