ADJ FOCUS SPOT 4Z User Instructions page 16

Focus Spot 4Z

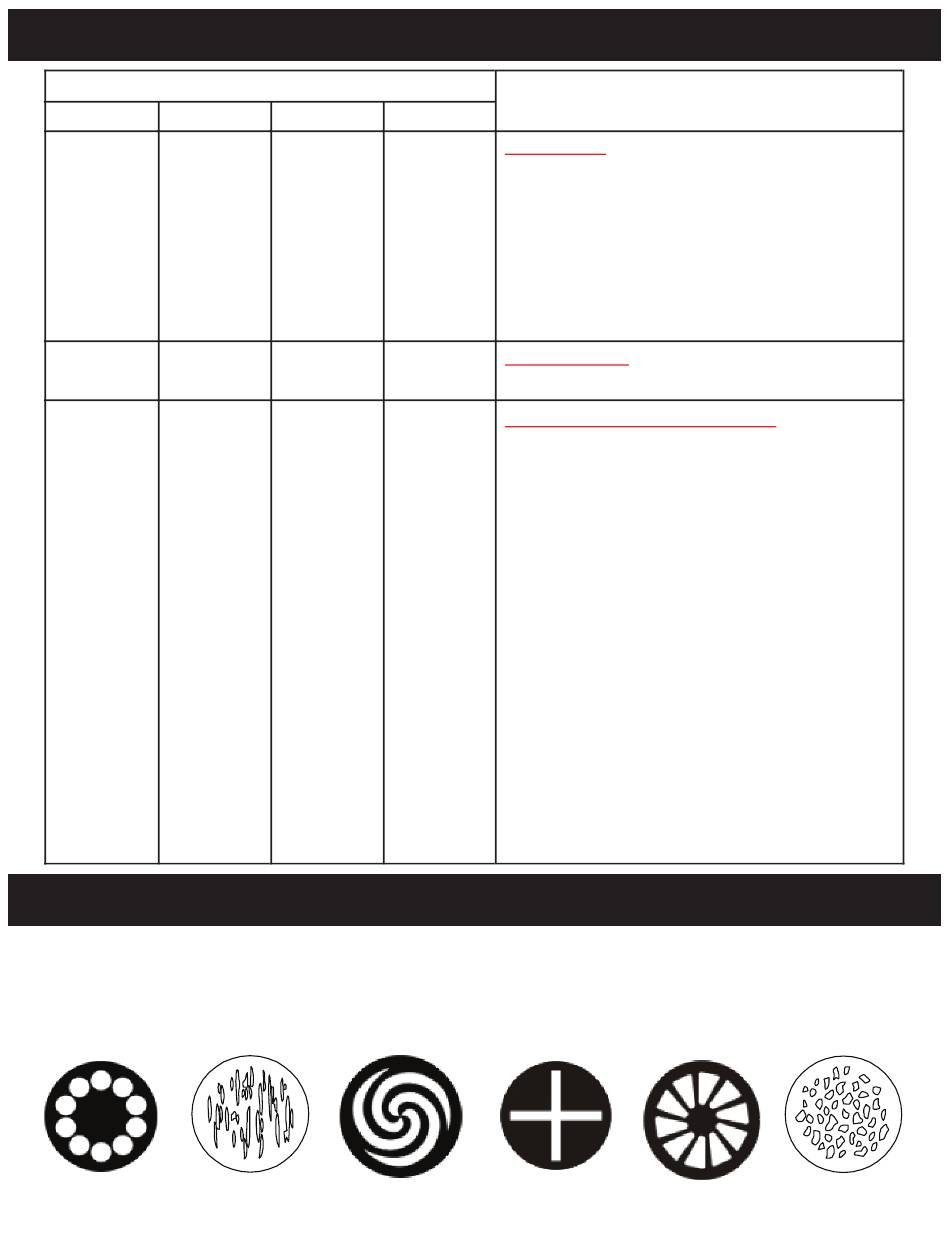

Channel Modes & Values
Basic Standard
14
15
16
Focus Spot 4Z
Inner Diameter: 19mm
Outer Diameter: 23mm
Thickness: 0.5mm
Gobo 1
ADJ Products, LLC - www.adj.com - Focus Spot 4Z User Manual Page 15
Extended
16 20
17 21
18 22
Gobo 2 Gobo 3
Values
Dim Curves:
000-020 Standard
021-040 Stage
041-060 TV
061-080 Architectural
081-100 Theatre
101-120 Stage 2
121-255 Default tu Unit Setting
Pan/Tilt Speed:
000-255
Max to min speed
Function, reset, internal programs
000-009 No Function
010-019 Blackout with Pan/Tilt Movement
020-029 Blackout with Color Wheel Movement
030-039 Blackout with Gobo Wheel Movement
040-059 Color and Gobo Motor Reset
060-069 Prism Motor Reset
070-079 Pan & Tilt Motor Reset
080-089 Focus Motor Reset
090-099 All Motors Reset
100-119 Internal Program 1 (Scene 1~8 of EEPROM)
120-139 Internal Program 2 (Scene 9~16 of EEPROM)
140-159 Internal Program 3 (Scene 17~24 of EEPROM)
160-179 Internal Program 4 (Scene 25~32 of EEPROM)
180-199 Internal Program 5 (Scene 33~40 of EEPROM)
200-219 Internal Program 6 (Scene 41~48 of EEPROM)
220-239 Internal Program 7 (Scene 49~56 of EEPROM)
240-255 No Function
Gobo 4
DMX Modes & Values
Functions
Gobo 5 Gobo 6
Gobos
