off. This means that the application will continue to run, and could produce unex-
pected results when the terminal is again turned on.
Cable for Connecting Printers

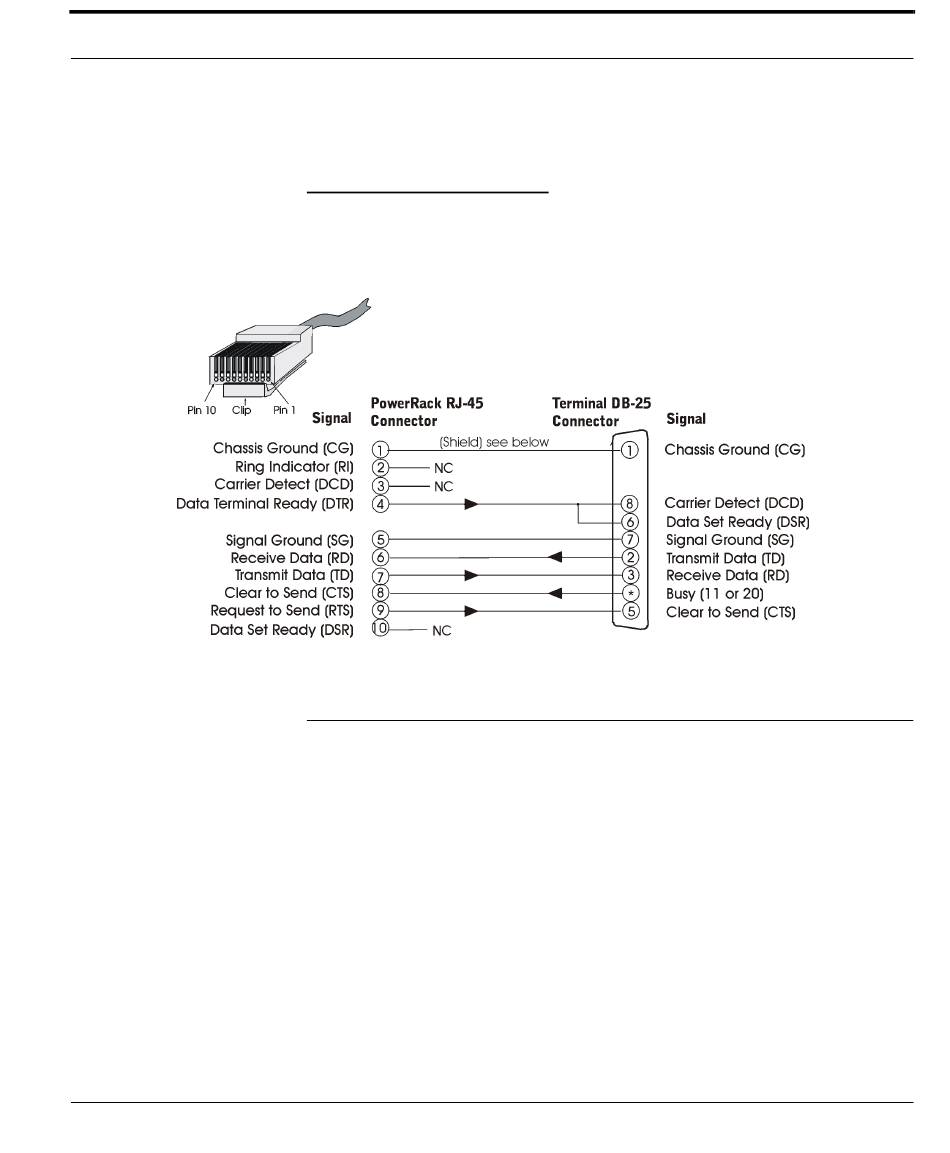

Figure 3-6 shows the pin-out for a cable to connect a printer.
Figure 3-6:
Notes:
If you are using hardware flow control, configure the PowerRack port for
1.
CTS flow control. Printers usually support hardware flow control using pin 11
or 20. Consult your printer manual to see which pin is appropriate and con-
nect it to the PowerRack's CTS pin. If you are using XON/XOFF flow control
this wire is not needed.
The Printer's Transmit Data (TD) signal is connected to the RAS 2000 Pow-
2.
erRack's Receive Data (RD) signal to support XON/XOFF flow control. It
can often be omitted when CTS flow control is used.
