Adding Serial Ports

After the "ears" are attached to the RAS 2000 PowerRack, install the completed
assembly into your rack enclosure. Provided are both #10-32
head Phillips screws. Use the size that fits your particular rack enclosure.
Figure 2-4.
The RAS 2000 PowerRack comes with a RISC-866 Engine card installed in the
bottom slot (slot 0). A single REX serial interface card is also installed in slot 1.
This card has the first 16 serial ports and these ports are numbered 0 - 15. Addi-
tional REX cards are sold separately and you can install up to three more, for a
total of 64 serial ports.

Where to Install Additional REX Cards

The first additional REX serial interface card should be installed in slot 2, use
slot 3 for the next, and slot 4 for the final card. Figure 2-5 shows the card slots
and port numbers.
RAS 2000 PowerRack Hardware Guide

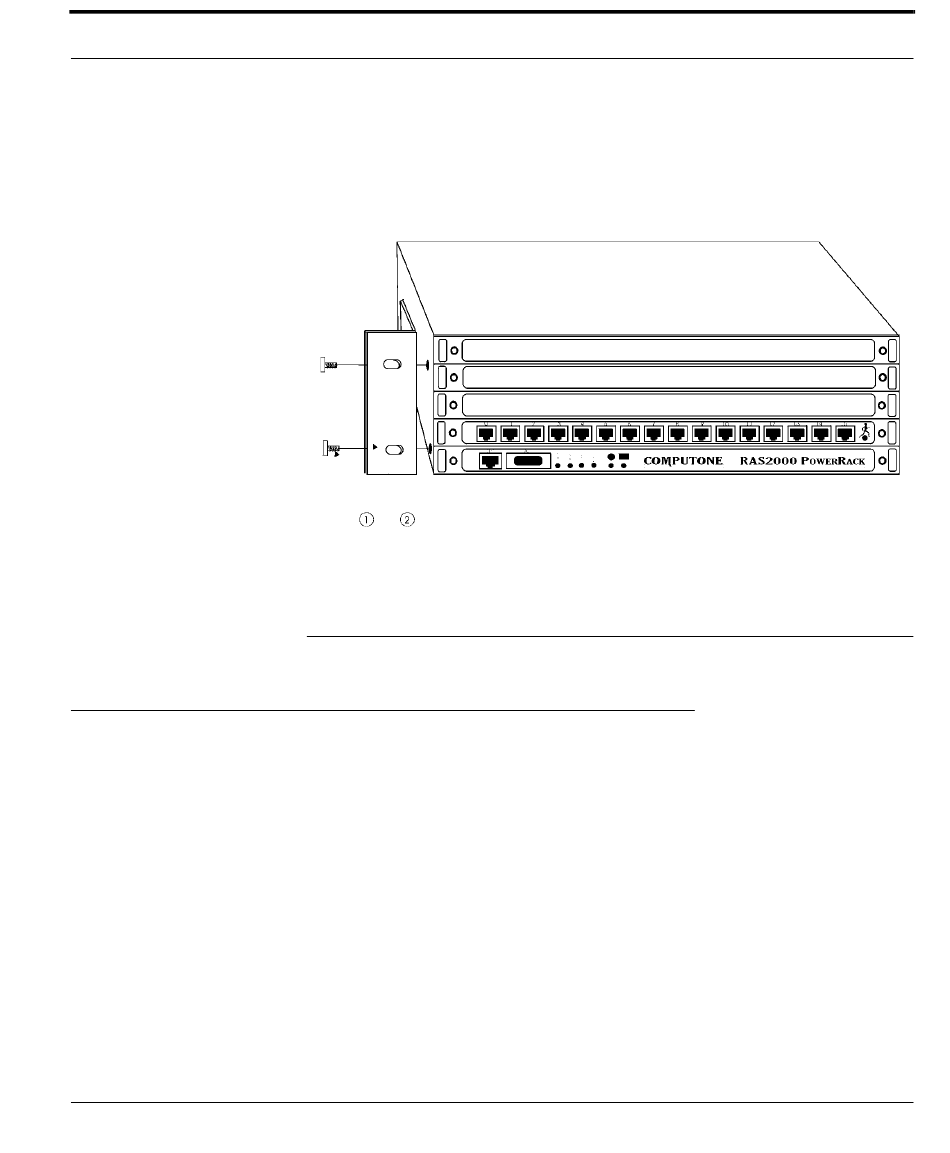

1 Pan head Phillips screw
2 Mounting bracket
Attaching the Mounting Brackets
1 " and M6x8 pan
/
2
