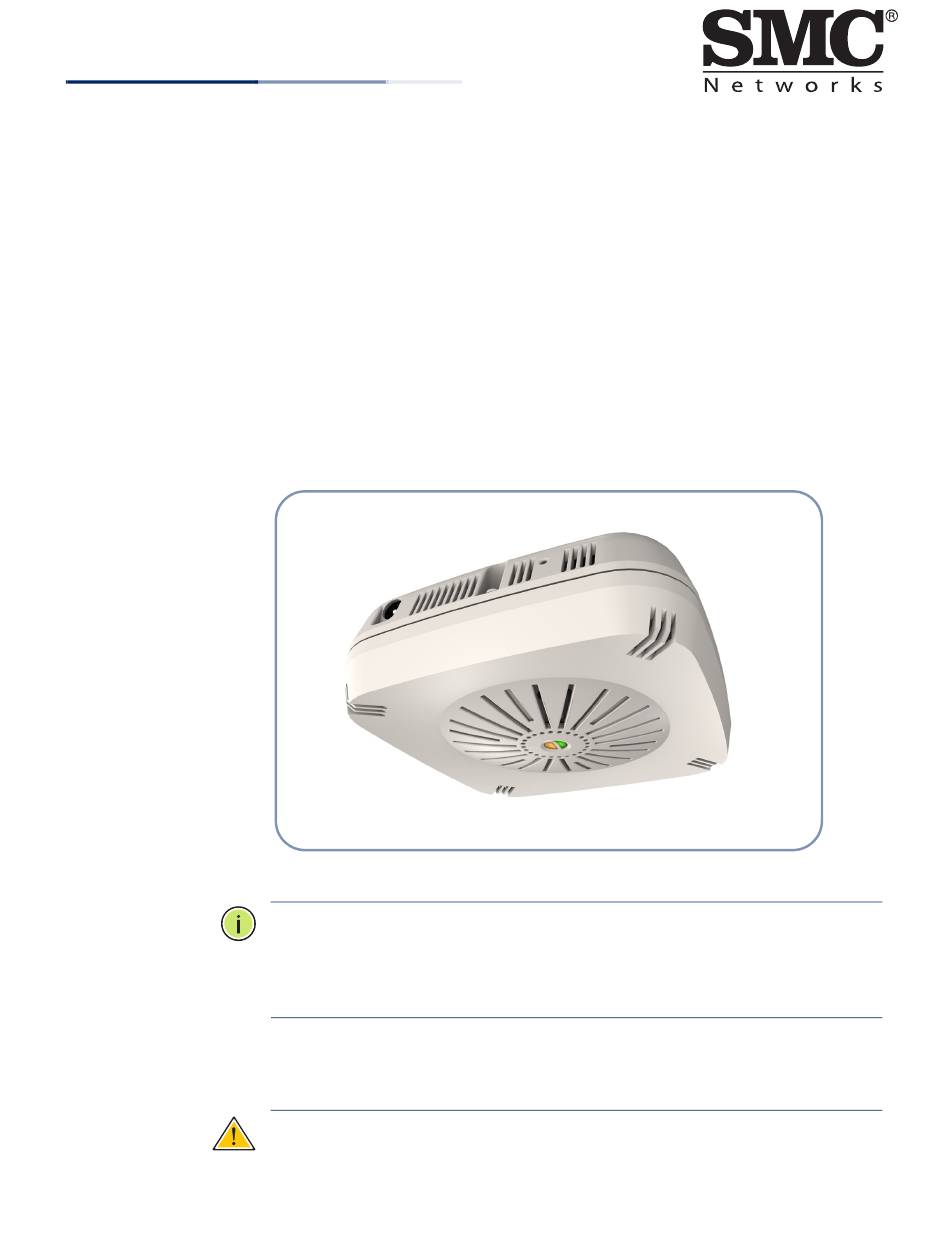

Quick Star t Guide
IEEE 802.11b/g/n Enterprise Access Point
WAP3110-L
www.smc.com
The WAP3110-L is a IEEE 802.11b/g/n access point (AP) that is designed to deliver
high-performance wireless services for clients in an enterprise environment.
Housed in a compact enclosure, the unit includes its own built-in options for
mounting on a wall, or suspended ceiling T-rail. The unit can be powered through a
PoE cable connection from a PoE network switch, or from its AC power adapter.
In addition, the AP supports network management from an SMC WAC4502 wireless
access controller throught the Control and Provisioning of Wireless Access Points
(CAPWAP) protocol.
For detailed access point (AP) installation information, refer to the
N
:
OTE
Installation Guide, which is on the Documentation CD included with the AP.
For Safety and Regulatory information, refer to the Safety and Regulatory
N
:
OTE
Information document included with the AP.
The AP includes its own built-in features for mounting the unit to a wall or
suspended ceiling T-rail.
Caution:
The planning and installation of the AP requires professional personnel
that are trained in the installation of radio transmitting equipment. The user is
– 1 –
E042013-AP-R01
