SMC Networks EliteConnect WAP5110 Specifications

WAP5110

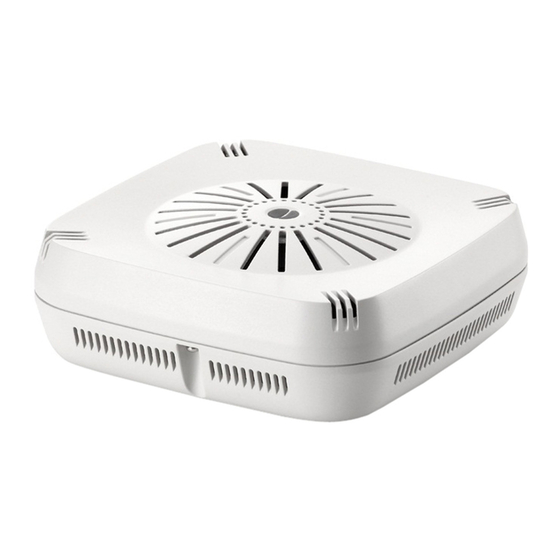

802.11n Dual-Band Wireless Access Point

Product Overview

The WAP5110 is an indoor 802.11a/b/g/n dual-band, dual-radio enterprise AP with a 2x2 MIMO antenna configuration.
Through its Gigabit Ethernet port the 802.11n dual-band wireless AP can connect to the backbone network. The WAP5110
supports 802.3af PoE, which enables the AP to be powered remotely by a PoE switch. An AC power adapter option is also
included for locations where PoE is not available.

Key Features and Benefits

Wireless 802.11n Technology
Using 802.11n MIMO (Multiple Input Multiple Output)
wireless technology, the AP supports two transmitting
and two receiving antennas that extend range and
increase the throughput by up to nine times that of
existing Wi-Fi.
Full Management Capabilities
The WAP5110 supports Simple Network Management
Protocol (SNMP v1/v2c/v3), including MIB II and MIB I.
The IEEE 802.1X authentication protocol supports
Extensible Authentication Protocol (EAP) MD5, Transport
Layer Security (TLS), Protected EAP (PEAP), Tunneled
TLS (TTLS), EAP-SIM, and EAP-AKA.

Application Diagram

Connect Your World ...
Switches | Wireless | Broadband | Carrier Ethernet | Network Management
Network
Core
VAP 0
WDS STA Mode
VAP 2
AP Mode
VAP 1
WDS AP Mode
VAP 0
WDS STA Mode
VAP 1
AP Mode
Advanced Traffic Management
Support for up to sixteen Virtual Access Point (VAP)
interfaces per radio, which allows traffic to be separated for
different user groups within the same service area. Each radio
can support up to 100 wireless clients, shared between all
VAPs, whereby the clients associate with each VAP in the
same way as they would with physically separate APs. This
means that each VAP can be configured with its own Service
Set Identification (SSID), security settings, VLAN
assignments, and other parameters, allowing the AP to serve
a diverse range of client needs from a single unit.
Dual-Band Access Point
Easy on your budget and simple to install, the AP uses
dynamic rate shifting to automatically match the best
connection speed, keeping users connected to the network
even while roaming.
WDS Links
Between Access Points
VAP 0
WDS AP Mode
VAP 2
AP Mode
WDS STA Mode
VAP 1
AP Mode
VAP 0
WDS STA Mode
VAP 1
WDS AP Mode
VAP 0
