Quick Star t Guide
IEEE 802.11a/b/g/n Enterprise Access Point
WAP5110-L
www.smc.com

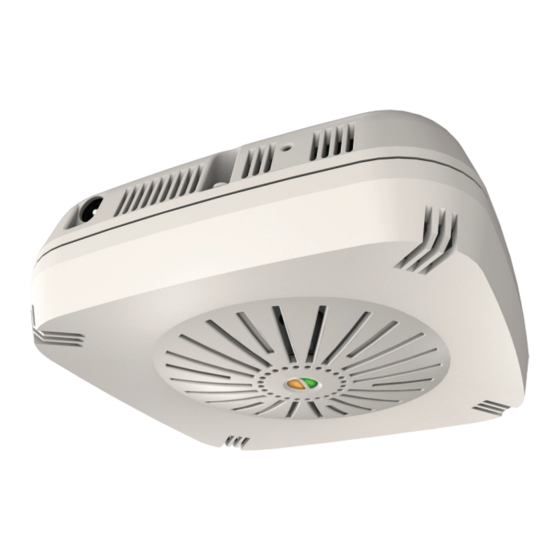

The WAP5110-L is a dual-band IEEE 802.11a/b/g/n access point (AP) that is
designed to deliver high-performance wireless services for clients in an enterprise
environment. Housed in a compact enclosure, the unit includes its own built-in
options for mounting on a wall, or suspended ceiling T-rail. The unit can be
powered through a PoE cable connection from a PoE network switch, or from its AC
power adapter.
In addition, the AP supports network management from an SMC WAC4502 wireless
access controller throught the Control and Provisioning of Wireless Access Points
(CAPWAP) protocol.
For detailed access point (AP) installation information, refer to the
N
:
OTE
Installation Guide, which is on the Documentation CD included with the AP.
For Safety and Regulatory information, refer to the Safety and Regulatory
N
:
OTE
Information document included with the AP.
– 1 –
E042013-CS-R01
150200000660A
Advertisement
Table of Contents
Related Manuals for SMC Networks WAP5110-L
Summary of Contents for SMC Networks WAP5110-L

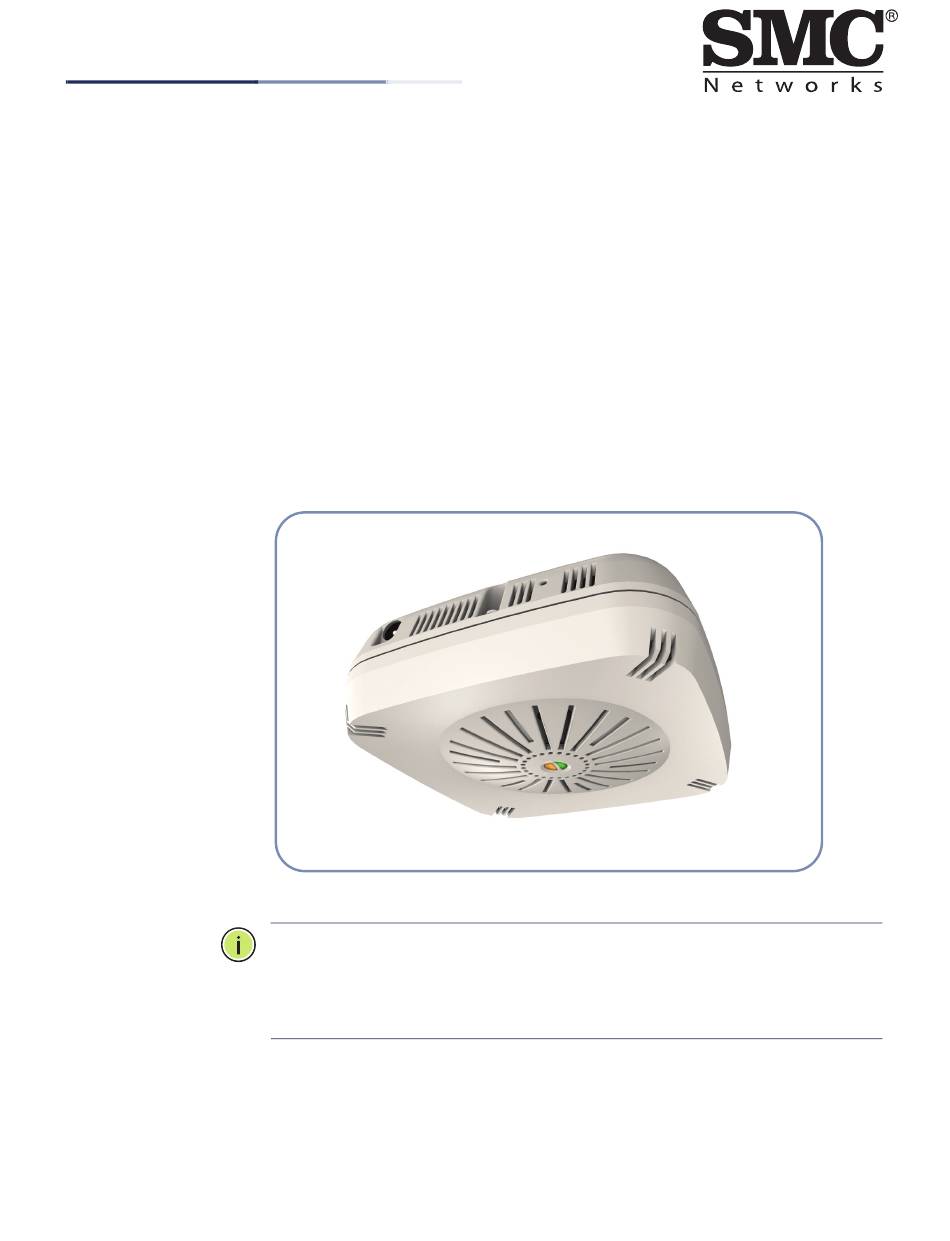

- Page 1 IEEE 802.11a/b/g/n Enterprise Access Point WAP5110-L The WAP5110-L is a dual-band IEEE 802.11a/b/g/n access point (AP) that is designed to deliver high-performance wireless services for clients in an enterprise environment. Housed in a compact enclosure, the unit includes its own built-in options for mounting on a wall, or suspended ceiling T-rail.
- Page 2 Follow these steps to install the AP: 1. Unpack the AP Unpack the AP and check the package contents. ◆ WAP5110-L Enterprise Access Point ◆ AC Power adapter ◆ Console cable (RJ-45 to DB-9) ◆...
- Page 3 Quick Start Guide Mounting on a Ceiling T-rail Position the AP’s ceiling-mount clip holders on either side of the T-rail. Turn the AP until the two clips lock the AP to the T-rail. 3. Connect Cables Connect network cable to the RJ-45 port for your network connection. The RJ-45 port connection can also provide PoE power to the unit.
- Page 4 Quick Start Guide 4. Connect Power If you do not power the unit using PoE, connect the AC power adapter to the AP and to an AC power source. Connect the power adapter to the power socket. Connect the power adapter to a nearby AC power source. 5.
- Page 5 Quick Start Guide 6. Connect to the To make initial configuration changes to the AP, connect a PC to the AP’s console port using the included console cable. Console Port Console Port From a PC running VT-100 terminal emulator software, use the following settings: ◆...
- Page 6 Quick Start Guide Hardware Specifications Item Specification Chassis Specifications Size W x D x H: 140 x 140 x 47.8 mm (5.51 x 5.51 x 1.88 inches) Weight 500 g (1.10 lbs) Temperature Operating: 0 °C to 40 °C (32 °F to 104 °F) Storage: -20 °C to 70 °C (-4 °F to 158 °F) Humidity Operating: 5% to 95% (non-condensing)
