Blade Wheel Alignment

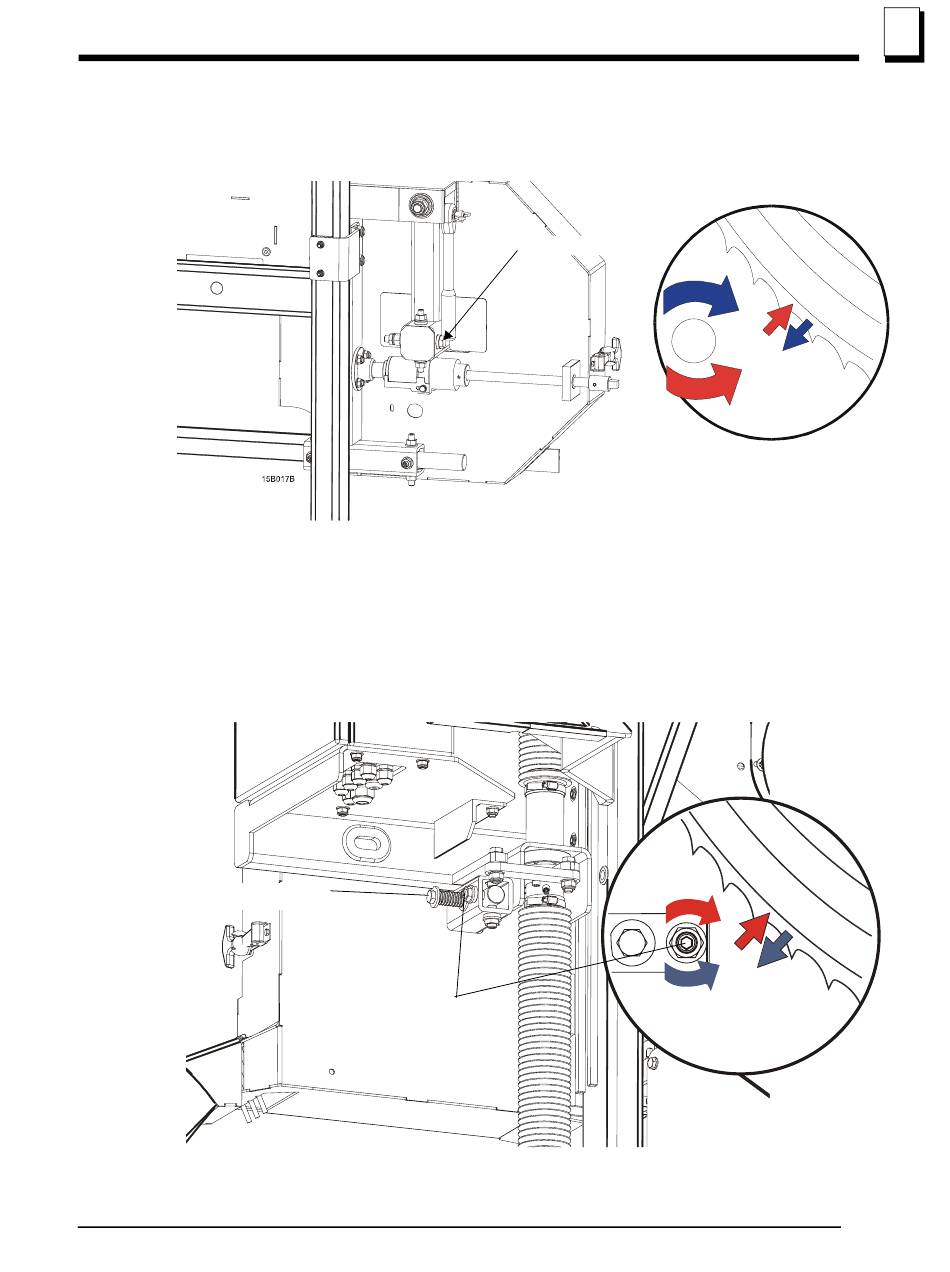

See Figure 6-6. Use the cant control adjustment to adjust the idle-side blade wheel. If the blade is too far
forward on the wheel, turn the cant control counterclockwise. If it is too far back on the wheel, turn the cant
control clockwise.
Cant Control
FIG. 6-6
10. Check the position of the blade on the drive-side blade wheel. The blade should be positioned on the wheel
as described for the idle-side blade wheel. Adjust the drive-side blade wheel if necessary.
See Figure 6-7. Use the horizontal adjustment screw to adjust the drive-side blade wheel. Loosen the jam
nut on the adjustment screw. Loosen adjustment screw to move blade out on wheel. Tighten adjustment
screw to move blade in on wheel. Tighten the jam nut.
Spring Bolt
Adjustment
Screw
150127B
FIG. 6-7
